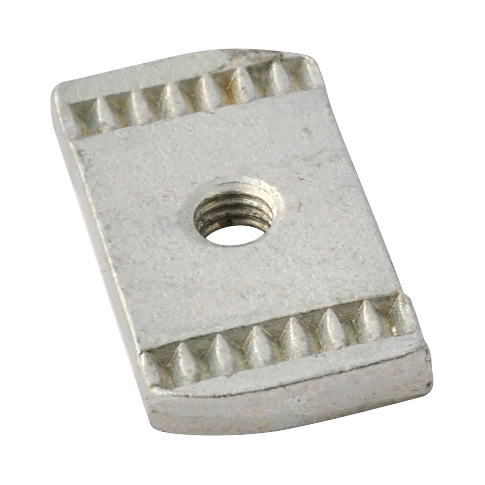

Walraven Strut Slide Nut hdg M8

to connect construction parts to the rail

6518008 Product line: Walraven RapidStrut®
Download product sheet

Get project support

Walraven Strut Slide Nut hdg M8

to connect construction parts to the rail

6518008

Consent

Features

  • material: slide nut made of steel 1.0332
  • hot dip galvanized
  • M10 and higher are tested for fire safety
  • Tested values in combination with Walraven RapidStrut® Rail 41x41x2.5mm.
  • More details can be found on the Technical Datasheet.
Walraven Strut Slide Nut hdg M8
Walraven Strut Slide Nut hdg M8
Walraven Strut Slide Nut hdg M8
Walraven Strut Slide Nut hdg M8

Specifications

Walraven RapidStrut® Slide Nut (hdg)

Identification
Identification
Product Number 6518008

Product Dimensions
Product Dimensions
Thread Size Ref. letter: TS M8
Material Thickness (mm) Ref. letter: MT 6
Total Height (mm) Ref. letter: H 6
Total Width (mm) Ref. letter: W 34
Total Depth (mm) Ref. letter: DtT 19
Depth (mm) Ref. letter: Dt 19
Thread Pitch (mm) Ref. letter: TP 1.25

Technical characteristics
Technical characteristics
For Rail Type 41x21, 41x41, 41x51, 41x62, 41x82
Torque Moment For Installation (Nm) Ref. letter: Tinst 25
Material Steel
Material Quality St. 1.0332
Surface Protection Hot Dip Galvanized
Surface Treatment Untreated
Thread Type Ref. letter: TT Metric
With Spring Height? No
With Toothing? Yes
With U Washer? No
With Washer? No

Approvals & Declarations
Approvals & Declarations
CE mark No
EN 1363-1 test report No
European Technical Assessment (ETA) No
KOT (National Technical Assessment, ITB) No
UPC listing certificate No

Safeloading
Safeloading
Maximum Allowed Load Fax (N) Ref. letter: Fa,x 2200
Maximum Allowed Load Faz (N) Ref. letter: Fa,z 4500

Weights
Weights
Weight [g] (g) 25.1
Weight [kg] (kg) 0.03

Packaging information
Packaging information
Pack 1 Shape Bag
Pack 1 Qty 100
Pack 1 Height (mm) 50
Pack 1 Width (mm) 130
Pack 1 Length (mm) 130
Pack 1 Weight (g) 2510
Pack 2 Shape Cardboard Box
Pack 2 Qty 600
Pack 2 Height (mm) 125
Pack 2 Width (mm) 190
Pack 2 Length (mm) 240
Pack 2 Weight (g) 16194
Pack 3 Shape Pallet ISO 0-1/1
Pack 3 Qty 43200
Pack 3 Height (mm) 644
Pack 3 Width (mm) 1200
Pack 3 Length (mm) 800
Pack 3 Weight (g) 1186968
Pack 4 Shape No Pack Type Available

Downloads & certificates

H2425 Walraven RapidStrut® Slide Nut (hdg) PDF | EN | Product info sheet Download
