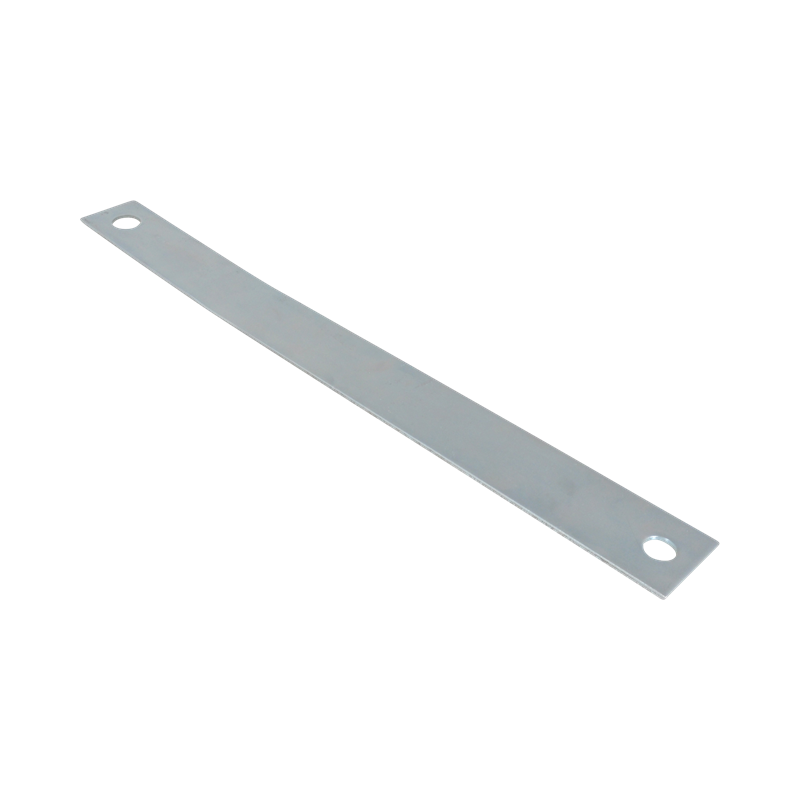

Walraven SafetyStrap pg C Beam Clamp M10/12 350mm
to prevent displacement
Features
- Safety Strap needs to be bent by hand
- material: steel
- pre-galvanized
Specifications
Identification
| Product Number | 6015110 |
|---|
Product Dimensions
| Fixing Hole (mm) Ref. letter: FH | 10.5 |
|---|---|
| Fixing Hole 2 (mm) Ref. letter: FH 2 | 12.5 |
| Total Height (mm) Ref. letter: H | 3 |
| Total Length (mm) Ref. letter: L | 350 |
| Total Width (mm) Ref. letter: W | 25 |
Technical characteristics
| Colour | Zinc |
|---|---|
| Layer Thickness Surface Protection (µm) | 20 |
| Material | Steel |
| Material Quality | St. 1.0226 |
| Surface Protection | Pre-galvanized |
| Surface Treatment | Untreated |
Weights
| Weight [g] (g) | 192 |
|---|---|
| Weight [kg] (kg) | 0.19 |
Packaging information
| Pack 1 Shape | Cardboard Box |
|---|---|
| Pack 1 Qty | 25 |
| Pack 1 Height (mm) | 168 |
| Pack 1 Width (mm) | 180 |
| Pack 1 Length (mm) | 400 |
| Pack 1 Weight (g) | 4963 |
| Pack 2 Shape | Pallet ISO 0-1/1 |
| Pack 2 Qty | 1500 |
| Pack 2 Height (mm) | 984 |
| Pack 2 Width (mm) | 1200 |
| Pack 2 Length (mm) | 800 |
| Pack 2 Weight (g) | 318780 |
| Pack 3 Shape | No Pack Type Available |
