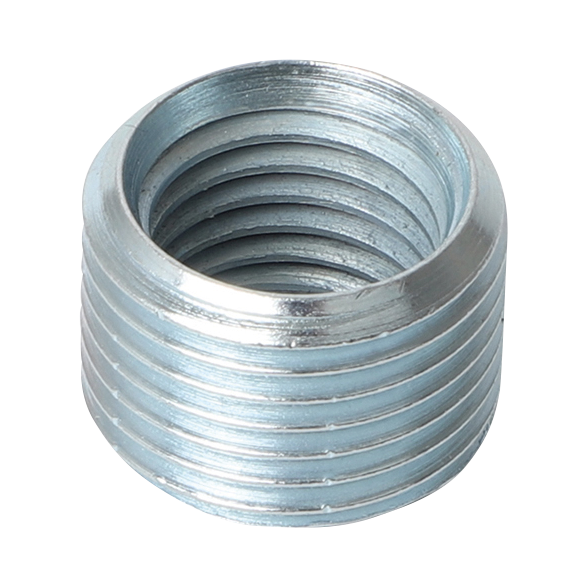

Walraven Thread Adaptor zp MAxFE 1/2"xM16

6473521

Get project support

Walraven Thread Adaptor zp MAxFE 1/2"xM16

6473521

Consent

Features

  • only tension loads recommended
  • to enlarge or reduce the thread size in the connection of clamps, etc.
  • material: steel
  • zinc plated

Specifications

Walraven Thread Adaptor Ring (M/F)

Identification

Identification
Product Number 6473521

Product Dimensions

Product Dimensions
Thread Size A Ref. letter: TSA M16
Thread Length A (mm) Ref. letter: TLA 15
Thread Size B Ref. letter: TSB G½”
Thread Length B (mm) Ref. letter: TLB 15
Total Height (mm) Ref. letter: H 15
Total Width (mm) Ref. letter: W 21
Total Depth (mm) Ref. letter: DtT 21
Thread Pitch A (mm) Ref. letter: TPA 2
Thread Pitch B (mm) Ref. letter: TPB 1.81

Technical characteristics

Technical characteristics
Colour Zinc
Layer Thickness Surface Protection (µm) 8
Material Steel
Material Quality St. 1.0715
Surface Protection Zinc Plated
Surface Treatment Untreated
Thread Gender A Ref. letter: TGA Female thread
Thread Gender B Ref. letter: TGB Female thread
Thread Type A Ref. letter: TTA Metric
Thread Type B Ref. letter: TTB Inch

Safeloading

Safeloading
Maximum Allowed Load Faz (N) Ref. letter: Fa,z 19900

Weights

Weights
Weight [g] (g) 14
Weight [kg] (kg) 0.01

Packaging information

Packaging information
Pack 1 Shape Cardboard Box
Pack 1 Qty 100
Pack 1 Height (mm) 80
Pack 1 Width (mm) 76
Pack 1 Length (mm) 159
Pack 1 Weight (g) 1440
Pack 2 Shape Cardboard Box
Pack 2 Qty 1000
Pack 2 Height (mm) 168
Pack 2 Width (mm) 180
Pack 2 Length (mm) 400
Pack 2 Weight (g) 14600
Pack 3 Shape Pallet ISO 0-1/1
Pack 3 Qty 60000
Pack 3 Height (mm) 984
Pack 3 Width (mm) 1200
Pack 3 Length (mm) 800
Pack 3 Weight (g) 895000
Pack 4 Shape No Pack Type Available

Downloads & certificates

K5537 Walraven Thread Adaptor Ring (M/F) PDF | EN | Product info sheet Download
