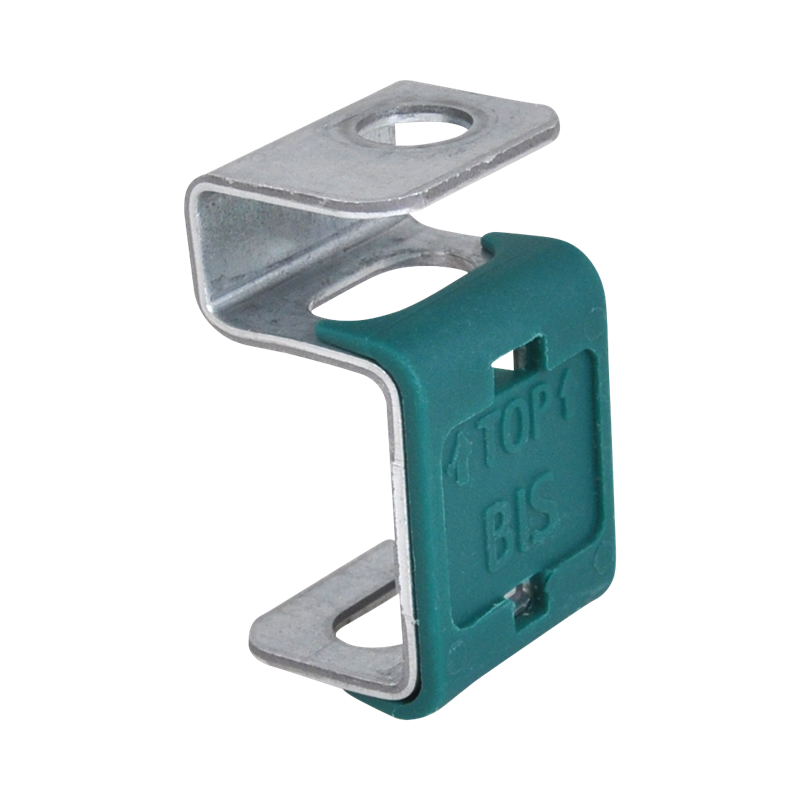

Walraven Threaded Rod Connector pg M8
connecting of stud bolts
Features
- to connect 2 male threaded components
- vertically adjustable
- material: steel 1.0226
- pre-galvanized
Specifications
Identification
| Product Number | 6455008 |
|---|
Product Dimensions
| Thread Size A Ref. letter: TSA | M8 |
|---|---|
| Thread Size B Ref. letter: TSB | M8 |
| Total Height (mm) Ref. letter: H | 41 |
| Total Width (mm) Ref. letter: W | 24 |
| Total Length (mm) Ref. letter: L | 21 |
Technical characteristics
| Thread Gender A Ref. letter: TGA | Female thread |
|---|---|
| Thread Gender B Ref. letter: TGB | Female thread |
| Colour | Zinc |
| Layer Thickness Surface Protection (µm) | 20 |
| Material | Steel |
| Material Quality | St. 1.0226 |
| Shape | S-Connector |
| Surface Protection | Pre-galvanized |
| Surface Treatment | Untreated |
| Thread Type A Ref. letter: TTA | Metric |
| Thread Type B Ref. letter: TTB | Metric |
| Through Going Thread? | No |
| With Inspection Holes? | Yes |
Safeloading
| Maximum Allowed Load Faz (N) Ref. letter: Fa,z | 2250 |
|---|
Weights
| Weight [g] (g) | 28 |
|---|---|
| Weight [kg] (kg) | 0.03 |
Packaging information
| Pack 1 Shape | Bag |
|---|---|
| Pack 1 Qty | 25 |
| Pack 1 Height (mm) | 45 |
| Pack 1 Width (mm) | 120 |
| Pack 1 Length (mm) | 190 |
| Pack 1 Weight (g) | 700 |
| Pack 2 Shape | Cardboard Box |
| Pack 2 Qty | 250 |
| Pack 2 Height (mm) | 228 |
| Pack 2 Width (mm) | 200 |
| Pack 2 Length (mm) | 266 |
| Pack 2 Weight (g) | 7165 |
| Pack 3 Shape | Pallet ISO 0-1/1 |
| Pack 3 Qty | 18000 |
| Pack 3 Height (mm) | 1056 |
| Pack 3 Width (mm) | 1200 |
| Pack 3 Length (mm) | 800 |
| Pack 3 Weight (g) | 525000 |
| Pack 4 Shape | No Pack Type Available |
