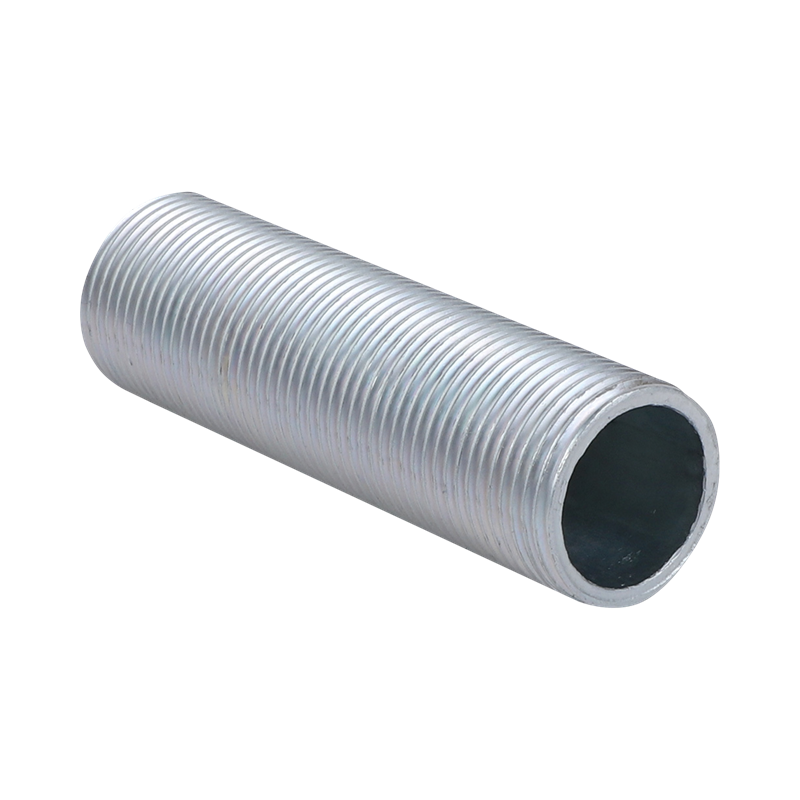

Walraven Threaded Tube zp 2m 1"
for threaded connections, hangers and ties
Features
- according to EN 10255 (was DIN 2440)
- metrical thread according to DIN ISO 228-1
- material: steel
- zinc plated
Specifications
Identification
| Product Number | 6293233 |
|---|
Product Dimensions
| Thread Size Ref. letter: TS | G1” |
|---|---|
| Total Length (mm) Ref. letter: L | 2000 |
| Total Height (mm) Ref. letter: H | 34 |
| Total Width (mm) Ref. letter: W | 34 |
| Thread Pitch (mm) Ref. letter: TP | 2.31 |
Technical characteristics
| Norm / Standard | EN 10255 |
|---|---|
| Colour | Zinc |
| Layer Thickness Surface Protection (µm) | 5 |
| Material | Steel |
| Material Quality | Class 4.8 |
| Surface Protection | Zinc Plated |
| Surface Treatment | Untreated |
| Thread Direction | Right-Handed Thread |
| Thread Type Ref. letter: TT | Inch |
Approvals & Declarations
| EN 1363-1 test report | No |
|---|
Weights
| Weight [g] (g) | 4860 |
|---|---|
| Weight [kg] (kg) | 4.86 |
Packaging information
| Pack 1 Shape | Bundle |
|---|---|
| Pack 1 Qty | 5 |
| Pack 1 Height (mm) | 60 |
| Pack 1 Width (mm) | 95 |
| Pack 1 Length (mm) | 2000 |
| Pack 1 Weight (g) | 24400 |
| Pack 2 Shape | Pallet ISO 0-1/1 |
| Pack 2 Qty | 160 |
| Pack 2 Height (mm) | 585 |
| Pack 2 Width (mm) | 810 |
| Pack 2 Length (mm) | 2000 |
| Pack 2 Weight (g) | 802000 |
| Pack 3 Shape | No Pack Type Available |
