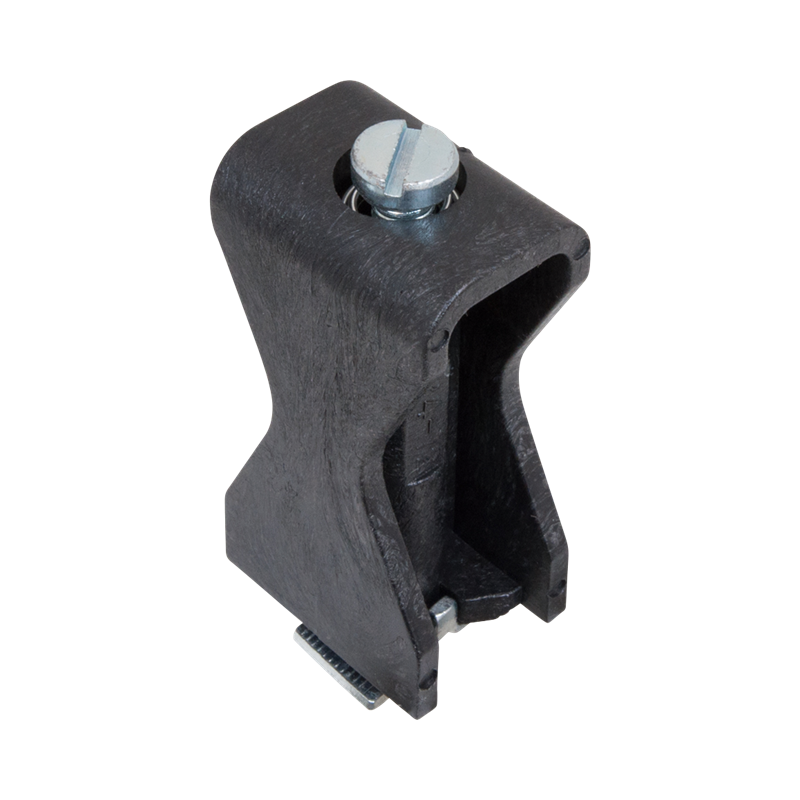

Walraven Channel Clamp Twistfix PA 24-72mm
Features
- space saving
- allows fixing of different diameters with the same clip
- for electrical and optical fiber systems
- material: PA (polyamide), black
- halogen free
- UV resistant
- temperature resistance from -18 °C to +66 °C
- for use with rail 27x18, 30x15, 30x20, 28x30, 30x30
Specifications
Identification
| Product Number | 6584205 |
|---|
Product Dimensions
| Outside Pipe Diameter (mm) Ref. letter: D | 24 - 72 |
|---|---|
| Total Height (mm) Ref. letter: H | 71 |
| Total Width (mm) Ref. letter: W | 30 |
| Total Depth (mm) Ref. letter: DtT | 38 |
Technical characteristics
| Closed? | No |
|---|---|
| Colour | Black |
| Halogen Free? | Yes |
| Material | Plastic |
| Material Quality | PA Nylon 6 (PolyAmide Nylon 6) |
| Maximum Number Of Tubes | 1 |
| Operating Temperature (°C) | -18 - 66 |
| Surface Protection | Untreated |
| Surface Treatment | Untreated |
| Tackable? | No |
| UV Resistant? | Yes |
| With Lining? | No |
Approvals & Declarations
| KOT (National Technical Assessment, ITB) | No |
|---|---|
| KIWA product certificate | No |
| UL listing certificate | No |
| UPC listing certificate | No |
Safeloading
| Calculated Breaking Load Fbx [kN] (kN) Ref. letter: Fb,x | 0 |
|---|---|
| Calculated Breaking Load Fbz [kN] (kN) Ref. letter: Fb,z | 0 |
| Calculated Maximum Allowed Load Fax [kN] (kN) Ref. letter: Fa,x | 0 |
| Maximum Allowed Load Faz [kN] (kN) Ref. letter: Fa,z | 0 |
Weights
| Weight [g] (g) | 65 |
|---|---|
| Weight [kg] (kg) | 0.07 |
Packaging information
| Pack 1 Shape | Cardboard Box |
|---|---|
| Pack 1 Qty | 50 |
| Pack 1 Height (mm) | 182 |
| Pack 1 Width (mm) | 189 |
| Pack 1 Length (mm) | 239 |
| Pack 1 Weight (g) | 3400 |
| Pack 2 Shape | Pallet ISO 0-1/1 |
| Pack 2 Qty | 2850 |
| Pack 2 Height (mm) | 844 |
| Pack 2 Width (mm) | 1200 |
| Pack 2 Length (mm) | 800 |
| Pack 2 Weight (g) | 215000 |
| Pack 3 Shape | No Pack Type Available |
