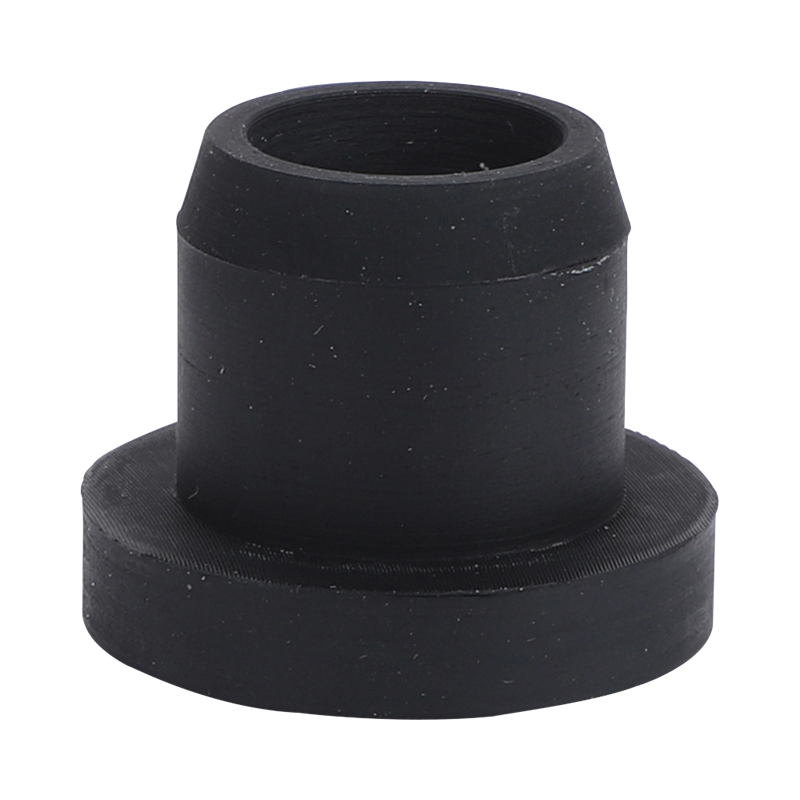

Walraven VibraTek® SA-2 Silent Absorber 300
silent rubber absorber for isolating metal to metal contact
Features
- a versatile viscoelastic rubber absorber for preventing metal-to-metal contact in joined or fastened surfaces
- simple installation
- with Ø 14mm hole for use with M10 and M12 threaded rods
- prevents transmission of vibration and noise
- working temperature range -10 ˚C till 45 ˚C
Specifications
Identification
| Product Number | 2801000300 |
|---|
Product Dimensions
| Total Height (mm) Ref. letter: H | 27 |
|---|---|
| Total Width (mm) Ref. letter: W | 34 |
| Total Depth (mm) Ref. letter: DtT | 34 |
| Height (mm) Ref. letter: h | 7.3 |
| Height 2 (mm) Ref. letter: h 2 | 19.2 |
| Connection Hole (mm) Ref. letter: CH | 14 |
| Diameter (mm) Ref. letter: d | 12.5 |
| Maximum Static Deflection (mm) | 3 |
Technical characteristics
| Colour | Black |
|---|---|
| Layer Thickness Surface Protection (µm) | 5 |
| Material | Rubber |
| Material Quality | NR |
| Operating Temperature (°C) | -10 - 45 |
| Surface Protection | Untreated |
| Surface Treatment | Untreated |
| With Washer? | Yes |
Safeloading
| Recommended Minimum Load Faz (N) | 10 |
|---|---|
| Recommended Maximum Load Faz (N) | 250 |
| Maximum Allowed Load Faz (N) Ref. letter: Fa,z | 300 |
Weights
| Weight [g] (g) | 12 |
|---|---|
| Weight [kg] (kg) | 0.01 |
Packaging information
| Pack 1 Shape | Cardboard Box |
|---|---|
| Pack 1 Qty | 200 |
| Pack 1 Height (mm) | 175 |
| Pack 1 Width (mm) | 270 |
| Pack 1 Length (mm) | 395 |
| Pack 1 Weight (g) | 2700 |
| Pack 2 Shape | Pallet ISO 0-1/1 |
| Pack 2 Qty | 7200 |
| Pack 2 Height (mm) | 864 |
| Pack 2 Width (mm) | 1200 |
| Pack 2 Length (mm) | 800 |
| Pack 2 Weight (g) | 118200 |
| Pack 3 Shape | No Pack Type Available |
