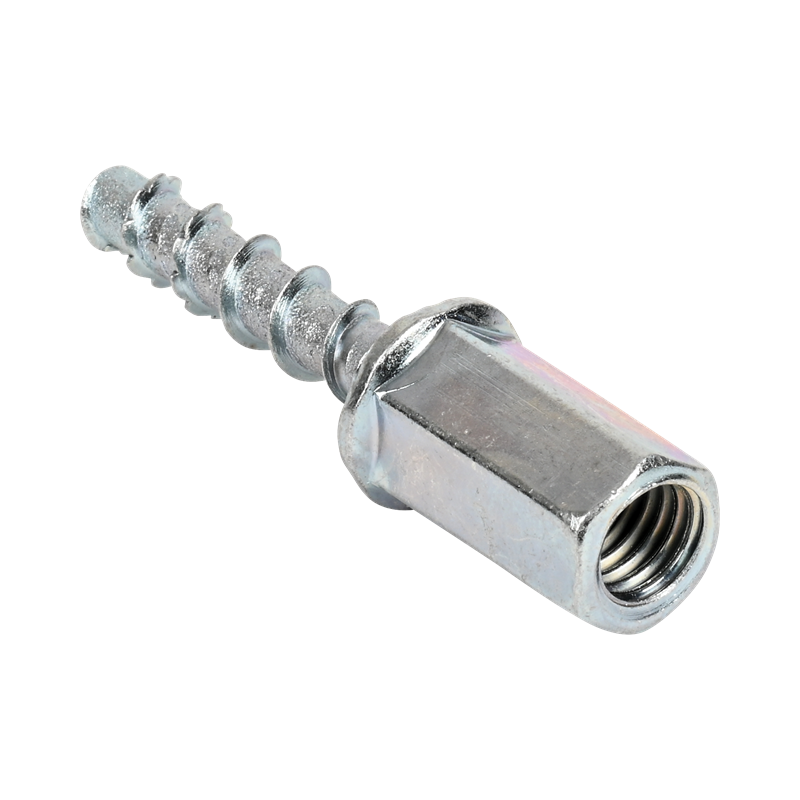

Walraven W-HLX-N Vite calcestruzzo M8 zincata 6x35

unibody zinc-plated concrete screw with an internal M8 and/or M10 thread

62533314 Applicazione: Controvento antisismici, Fissaggi per la protezione antincendio attiva / Fissaggi per sprinkler

Caratteristiche

induction hardened technology ensures very high load capacity
the advanced thread geometry ensures fast and simple installation
reduced minimum edge and anchor spacing distances for confined areas
installation possible without drill hole cleaning for faster workflow on site
European Technical Assessment according to EAD 330232-01-0601 (December 2019) for mechanical fastener for use in cracked and non-cracked concrete
European Technical Assessment according to EAD 330747-00-0601 (May 2018) for fastener for use in concrete for redundant non-structural systems
material: steel
zinc-plated
fire resistance class R30-R120
seismic performance category C1
complies with VdS CEA 4001: 2024-01 (08) for applications with sprinkler systems in concrete elements
substrate type: cracked concrete, non-cracked concrete, precast pre-stressed hollow core slabs
for loads and more information, refer to the product data sheets and/or the ETA reports

Identificazione
Product Number	62533314

Dimensioni del prodotto
Connection Thread Lettera di riferimento: G	M8
Connection Height (mm) Lettera di riferimento: Gh	15
Screw Length (mm) Lettera di riferimento: ls	35
Anchor Size Lettera di riferimento: Size	6
Width Across Flats (mm) Lettera di riferimento: WAF	13
Drill Hole Diameter (mm) Lettera di riferimento: d0	6
Total Height (mm) Lettera di riferimento: H	16
Total Width (mm) Lettera di riferimento: W	16
Total Length (mm) Lettera di riferimento: L	60
Flange Diameter (mm) Lettera di riferimento: FlD	16
Shaft Diameter (mm) Lettera di riferimento: SD	6
Thread Diameter (mm) Lettera di riferimento: Td	7.9
Thread Length (mm) Lettera di riferimento: TL	32

Caratteristiche tecniche
Colour	Zinco
Layer Thickness Surface Protection (µm)	5
Material	Acciaio
Material Quality	St. 1.5523
Maximum Fire Resistance Class According To DIN EN 13501 2	R120
Minimum Fire Resistance Class According To DIN EN 13501 2	R30
Screwing System	Esagono esterno
Surface Protection	zincato
Surface Treatment	Non trattato

Approvazioni e dichiarazioni
Marcatura CE	Si
Rapporto di prova EN 1363-1	Si
Valutazione Tecnica Europea (ETA)	Si

Pesi
Weight [g] (g)	21.1
Weight [kg] (kg)	0.02
