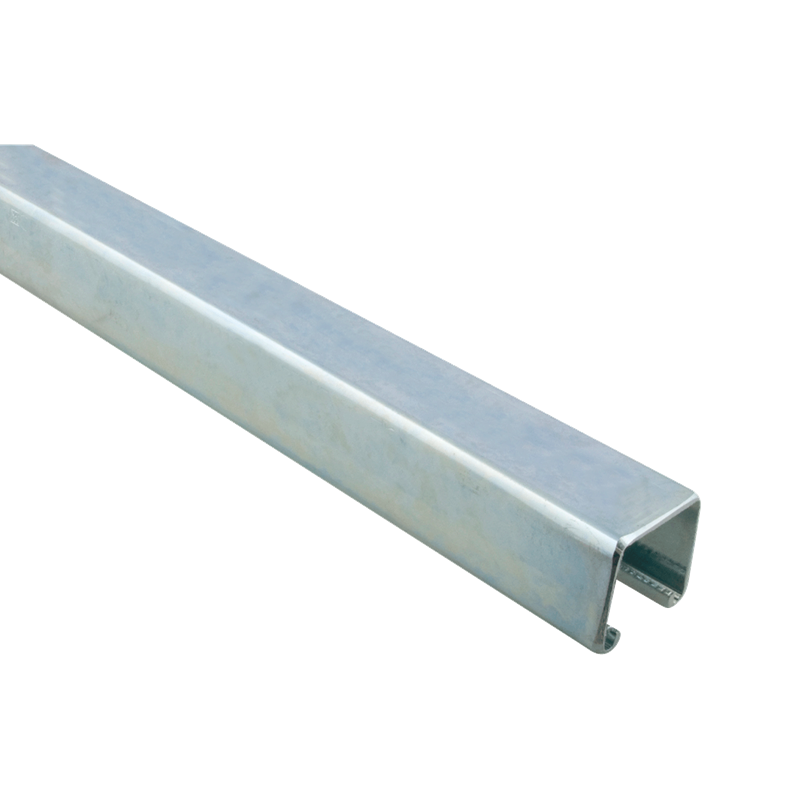

Walraven RapidStrut® Rail 21|H 6m pg NO SLOT 41x21/2.5

for medium weight fixing applications

6505620 Product line: Walraven RapidStrut®
Download product sheet

Get project support

Walraven RapidStrut® Rail 21|H 6m pg NO SLOT 41x21/2.5

for medium weight fixing applications

6505620

Consent

Features

  • universal channel system
  • inward formed flanges with serrated profile for extra grip
  • pre-galvanized
  • For more information about the max. allowed load please refer to the loading tables or our online datasheet ‘Walraven RapidStrut® Data Sheet'.
Walraven RapidStrut® Rail 21|H 6m pg NO SLOT 41x21/2.5
Walraven RapidStrut® Rail 21|H 6m pg NO SLOT 41x21/2.5
Walraven RapidStrut® Rail 21|H 6m pg NO SLOT 41x21/2.5
Walraven RapidStrut® Rail 21|H 6m pg NO SLOT 41x21/2.5

Specifications

Walraven RapidStrut® channel (pg) no slot

Identification
Identification
Product Number 6505620

Product Dimensions
Product Dimensions
Total Height (mm) Ref. letter: H 21
Total Width (mm) Ref. letter: W 41
Total Length (mm) Ref. letter: L 6000
Material Thickness (mm) Ref. letter: MT 2.5
Profile Opening (mm) Ref. letter: S 22
Fixing Hole (mm) Ref. letter: FH 0

Technical characteristics
Technical characteristics
Type 21 | H
Colour Zinc
Layer Thickness Surface Protection (µm) 20
Material Steel
Material Quality St. 1.0242
Moment Of Inertia Iy (cm⁴) 1.26
Moment Of Inertia Iz (cm⁴) 5.36
Profile Model Singular profile
Profile Shape C-Profile
Section Modulus Wy (cm³) 1.07
Section Modulus Wz (cm³) 2.71
Snap Off? No
Suitable For Circuit Integrity? No
Surface Protection Pre-galvanized
Surface Treatment Untreated
With Toothing? Yes

Approvals & Declarations
Approvals & Declarations
BS 6946 test report No
CE mark No
EN 1363-1 test report No
EPD (Environmental Product Declaration) Yes
European Technical Assessment (ETA) No
UPC listing certificate No

Safeloading
Safeloading
Maximum Allowed Load Faz (N) Ref. letter: Fa,z 624
Maximum Allowed Load Faz [kN] (kN) Ref. letter: Fa,z 0.62

Weights
Weights
Weight [g] (g) 11304
Weight [kg] (kg) 11.3

Packaging information
Packaging information
Logistical Appearance Shape Length
Logistical Appearance Qty 1
Logistical Appearance Height (mm) 21
Logistical Appearance Width (mm) 41
Logistical Appearance Length (mm) 1000
Logistical Appearance Weight (g) 1880
Pack 1 Shape Bundle
Pack 1 Qty 60
Pack 1 Height (mm) 24
Pack 1 Width (mm) 255
Pack 1 Length (mm) 6000
Pack 1 Weight (g) 113000
Pack 2 Shape Bundle
Pack 2 Qty 600
Pack 2 Height (mm) 228
Pack 2 Width (mm) 255
Pack 2 Length (mm) 6000
Pack 2 Weight (g) 1140000
Pack 3 Shape No Pack Type Available

Downloads & certificates

Productsheet H0411 Walraven RapidStrut® channel (pg) no slot PDF | EN | Product info sheet Download
