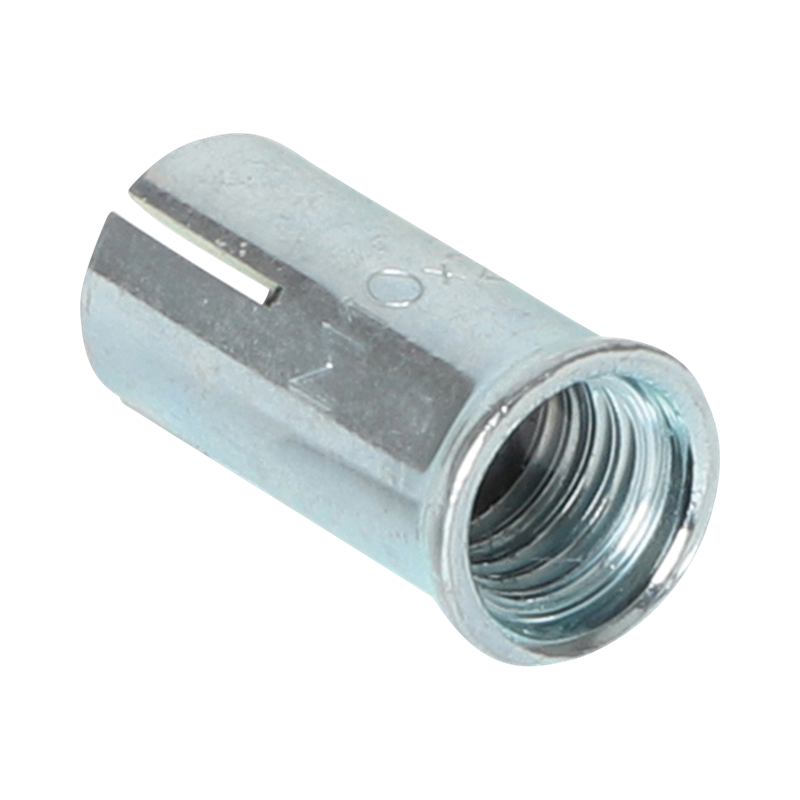

Walraven WDI1R Drop-in Anchor reduced zp M8x25mm

reduced length drop-in anchor with a lip collar

6103208

Features

simple and quick installation procedure
collar with a lip for flush anchor setting at any hole depth
medium load capacity
ETA ETAG001 Part 6 approval for multiple use for non-structural applications
fire resistance class R30-R120 for design of anchorages under exposure to fire
complies with VdS CEA 4001.2024-01 (08) for applications with sprinkler systems in concrete (M8-M12)
substrate type: cracked concrete, non-cracked concrete
reduced 25 mm anchor length allows approved applications in precast prestressed hollow core slabs
for loads and more information, refer to the product data sheet and/or the ETA report
material: steel
zinc plated

Identification
Product Number	6103208

Product Dimensions
Thread Size Ref. letter: TS	M8
Total Height (mm) Ref. letter: H	10
Total Width (mm) Ref. letter: W	10
Total Length (mm) Ref. letter: L	25
Drill Hole Diameter (mm) Ref. letter: d0	10
Min. Drill Hole Depth (mm) Ref. letter: h0 min	25
Standard Embedment Depth (mm) Ref. letter: hnom	≥ 25
Minimum Substrate Thickness (mm) Ref. letter: hmin	80
Thread Pitch (mm) Ref. letter: TP	1.25

Technical characteristics
Thread Type Ref. letter: TT	Metric
Colour	Zinc
Fastening Provision	Stud
Layer Thickness Surface Protection (µm)	5
Material	Steel
Material Quality	Class 8.8
Suitable for	Cracked concrete, Non-cracked concrete, Prestressed hollow core concrete slabs, Concrete
Surface Protection	Zinc Plated
Surface Treatment	Untreated
With Collar?	Yes

Approvals & Declarations
CE mark	Yes
EN 1363-1 test report	Yes
European Technical Assessment (ETA)	Yes

Weights
Weight [g] (g)	10.2
Weight [kg] (kg)	0.01
