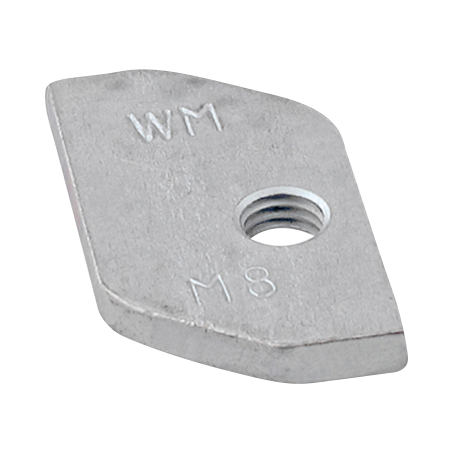

Walraven Slide Nut 651D WM3 zp M8
threaded plate to connect components to rails
Features
- threaded plate to connect accessories to fixing rail and cantilever arm
- suitable for profile 50x40
- material: steel
- zinc plated
Specifications
Identification
| Product Number | 6515008 |
|---|
Product Dimensions
| Thread Size Ref. letter: TS | M8 |
|---|---|
| Material Thickness (mm) Ref. letter: MT | 5 |
| Total Height (mm) Ref. letter: H | 5 |
| Total Width (mm) Ref. letter: W | 42 |
| Total Depth (mm) Ref. letter: DtT | 25 |
| Depth (mm) Ref. letter: Dt | 25 |
| Thread Pitch (mm) Ref. letter: TP | 1.25 |
| Width (mm) Ref. letter: w | 42 |
Technical characteristics
| For Rail Type | 38x40, 50x40 |
|---|---|
| Clickable? | No |
| Material | Steel |
| Material Quality | St. 1.0332 |
| Pre Fabricated? | No |
| Surface Protection | Zinc Plated |
| Surface Treatment | Untreated |
| Thread Adaptor Included? | No |
| Thread Type Ref. letter: TT | Metric |
| With hexagonal nut? | No |
| With Spring Height? | No |
| With Stud Bolt? | No |
| With Toothing? | No |
| With U Washer? | No |
| With Washer? | No |
Approvals & Declarations
| CE mark | No |
|---|---|
| EN 1363-1 test report | No |
| European Technical Assessment (ETA) | No |
| UPC listing certificate | No |
Safeloading
| Maximum Allowed Load Faz (N) Ref. letter: Fa,z | 3000 |
|---|
Weights
| Weight [g] (g) | 30 |
|---|---|
| Weight [kg] (kg) | 0.03 |
Packaging information
| Pack 1 Shape | Bag |
|---|---|
| Pack 1 Qty | 50 |
| Pack 1 Height (mm) | 30 |
| Pack 1 Width (mm) | 110 |
| Pack 1 Length (mm) | 130 |
| Pack 1 Weight (g) | 1620 |
| Pack 2 Shape | Cardboard Box |
| Pack 2 Qty | 250 |
| Pack 2 Height (mm) | 30 |
| Pack 2 Width (mm) | 110 |
| Pack 2 Length (mm) | 130 |
| Pack 2 Weight (g) | 7630 |
| Pack 3 Shape | Pallet ISO 0-1/1 |
| Pack 3 Qty | 54000 |
| Pack 3 Height (mm) | 1224 |
| Pack 3 Width (mm) | 1200 |
| Pack 3 Length (mm) | 800 |
| Pack 3 Weight (g) | 1668000 |
| Pack 4 Shape | No Pack Type Available |
