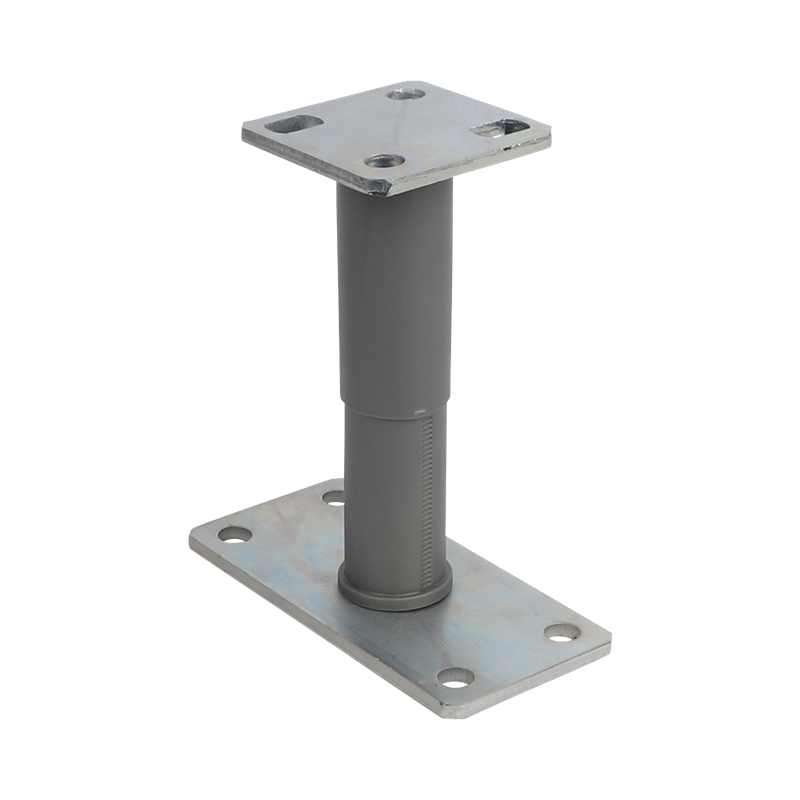

Walraven Adjustable Support Bracket
support bracket fastener for high adjustable rail installation
Features
- height adjustment range 135mm to 200mm also in installed state (left/right thread)
- suitable for all Walraven RapidStrut® rails (advised to use open side down for flexibility to meet the holes)
- use up to class 1-2 according to Eurocode 5 (indoor and covered outdoor area without weather influences)
- material: metal parts made of steel S235JR; protection cover made of plastic, grey
- zinc plated (Zn-Fe zinc / iron coating)
- For a detailed calculation and for support how to spread the load please contact Walraven Technical Support.
- In cases where a foot is used in roof applications, the installer is obliged to verify maximum load capacity of roof before installation.
Articles
| Product Number | Total Height | Total Width | Total Depth | Width | Material Thickness | Material Thickness 2 | Anchoring Hole | Anchoring Hole 2 | Anchoring Slot | Heart To Heart Distance | Heart To Heart Distance 2 | Saved articles list |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ref. letter | H | W | DtT | w | MT | MT 2 | AH | AH 2 | AS | k | k 2 | |
| Unit desc. | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | |
66583810
|
200 | 160 | 80 | 80 | 6 | 6 | 13 | 13 | 20x13 | 129 | 50 |
