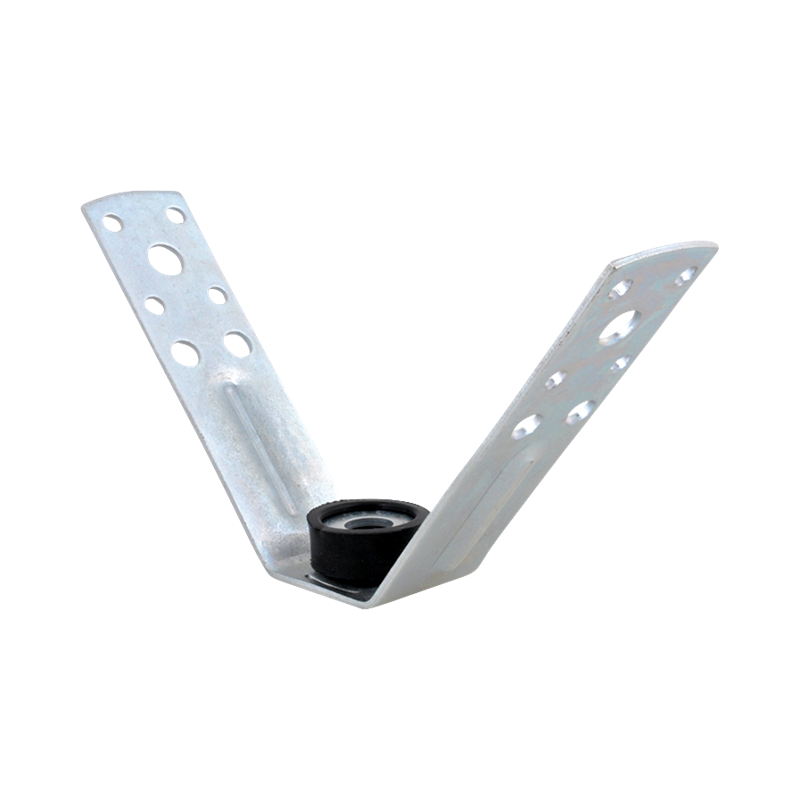

Walraven Support Bracket Round Ductwork
for air ducts
Features
- for fixing of round air ducts
- with hole Ø 4.8 mm for pop-rivet connection
- material: metal parts made of steel; silent block made of TPE rubber, black
- zinc plated
- sound insulating lining according DIN 4109
Articles
| Product Number | Total Height | Total Width | Total Depth | For Thread Size | Fixing Hole | Fixing Hole 2 | Fixing Hole 3 | Material Thickness | Width | Maximum Allowed Load Faz | Saved articles list |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Ref. letter | H | W | DtT | fts | FH | FH 2 | FH 3 | MT | w | Fa,z | |
| Unit desc. | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (N) | ||
4125004
|
82 | 30 | 171 | M10 | 9 | 7 | 4.8 | 2 | 35 | 490 |
Downloads & certificates
Some documents are specific to an article. Select an article above to see all its downloads.
