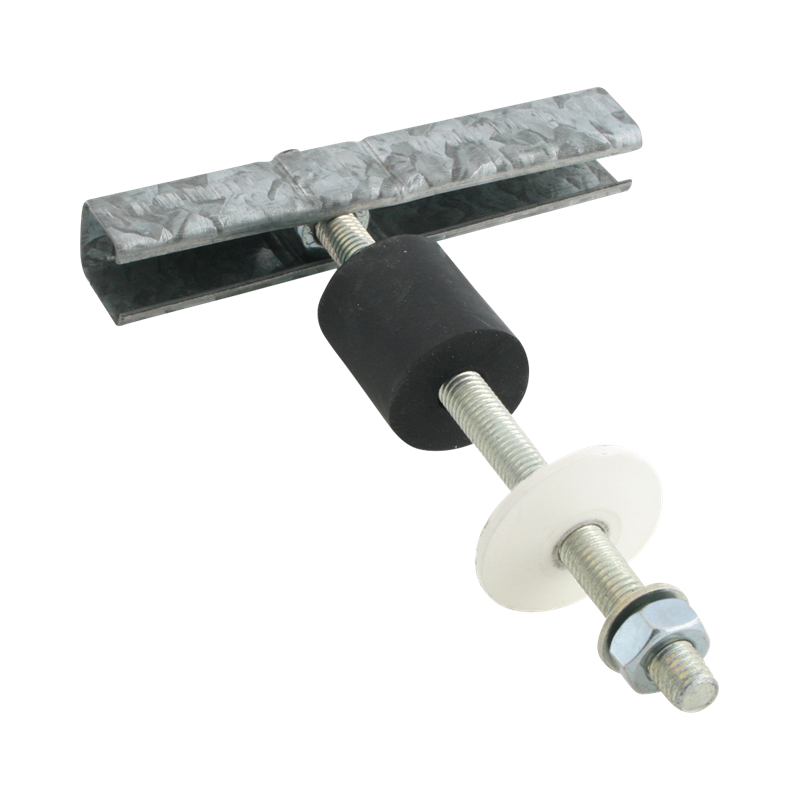

Walraven Toggle Bolt
fixing to hollow walls
Features
- for fixing in hollow walls
- suitable for mounting heavy installation as toilets, urinal etc.
- material: metal parts made of steel; spacer collar of EPDM rubber; washer of PP (polypropylene)
- pre-galvanized
Articles
| Product Number | Thread Size | Thread Length | Drill Hole Diameter | Width Across Flats | Min. Hollow Depth | Maximum Substrate Thickness | Total Height | Total Width | Total Depth | Saved articles list |
|---|---|---|---|---|---|---|---|---|---|---|
| Ref. letter | TS | TL | d0 | WAF | H | W | DtT | |||
| Unit desc. | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | ||
0670600
|
M10 | 180 | 32 | 17 | 140 | 110 | 202 | 135 | 40 |
Downloads & certificates
Some documents are specific to an article. Select an article above to see all its downloads.
