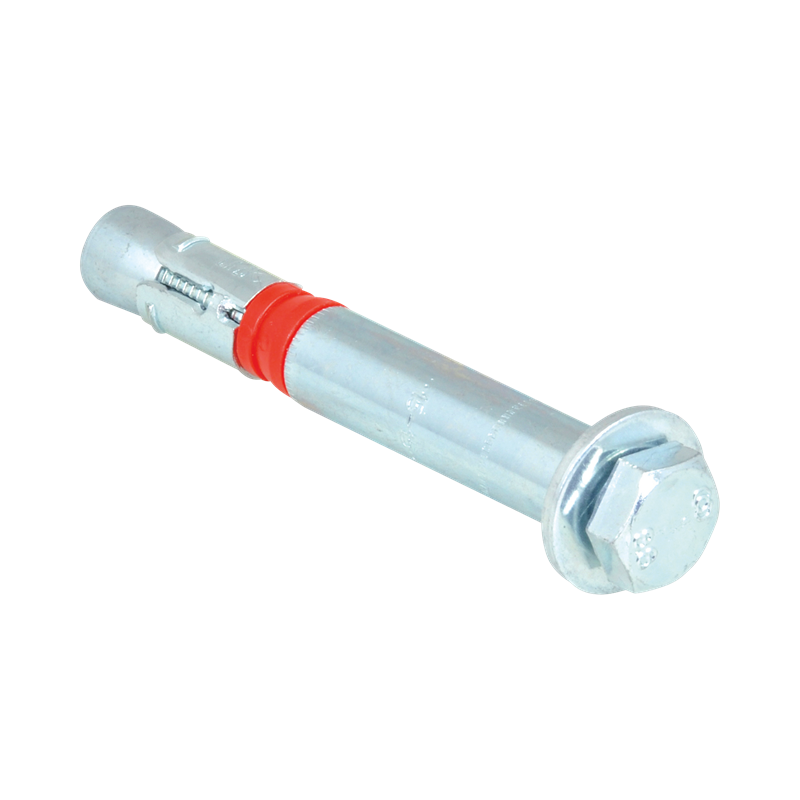

Walraven WHA1H Highload Anchor 15x110/15

ultimate performance anchor for cracked concrete and seismic conditions

609832150

Features

very high load capacity
ETA Option 1 approval for cracked and non-cracked concrete
fire resistance class R30-R120 for design of anchorages under exposure to fire
seismic performance categories C1 and C2 for design of anchorages under seismic action
substrate type: cracked concrete, non-cracked concrete
for loads and more information, refer to the product data sheet and/or the ETA report
material: steel
zinc plated

Identification
Product Number	609832150

Product Dimensions
Drill Hole Depth (mm) Ref. letter: h0	95
Drill Hole Diameter (mm) Ref. letter: d0	15
Effective Embedment Depth (mm) Ref. letter: Hef	71
Maximum Fixture Thickness (mm) Ref. letter: tfix,max	15
Min. Drill Hole Depth (mm) Ref. letter: h0 min	95
Minimum Substrate Thickness (mm) Ref. letter: hmin	140
Standard Embedment Depth (mm) Ref. letter: hnom	85
Thread Size Ref. letter: TS	M10
Total Height (mm) Ref. letter: H	15
Total Length (mm) Ref. letter: L	110
Total Width (mm) Ref. letter: W	15
Width Across Flats (mm) Ref. letter: WAF	17

Technical characteristics
Anchor Model	Female thread
Colour	Zinc
ETA Seismic Rating	C1 & C2
Fastening Provision	Bolt
Fire Resistant?	Yes
Material	Steel
Material Quality	Class 8.8
Maximum Fire Resistance Class According To DIN EN 13501 2	R120
Number Of Nuts	1
Number Of Washers?	1
Pre-Positioned Installation?	No
Push-Through Installation?	Yes
Screwing System	External hexagon
Spaced Installation?	No
Suitable for	Non-cracked concrete, Cracked concrete
Surface Protection	Zinc Plated
Surface Treatment	Untreated
Thread Type Ref. letter: TT	Metric
Torque Moment For Installation (Nm) Ref. letter: Tinst	50
With Collar?	No

Approvals & Declarations
CE mark	Yes
EN 1363-1 test report	Yes
European Technical Assessment (ETA)	Yes

Safeloading
Recommended Load In Cracked Concrete C20/25 (N)	7620
Recommended Load In Uncracked Concrete C20/25 (N)	14290

Weights
Weight [g] (g)	130
Weight [kg] (kg)	0.13
