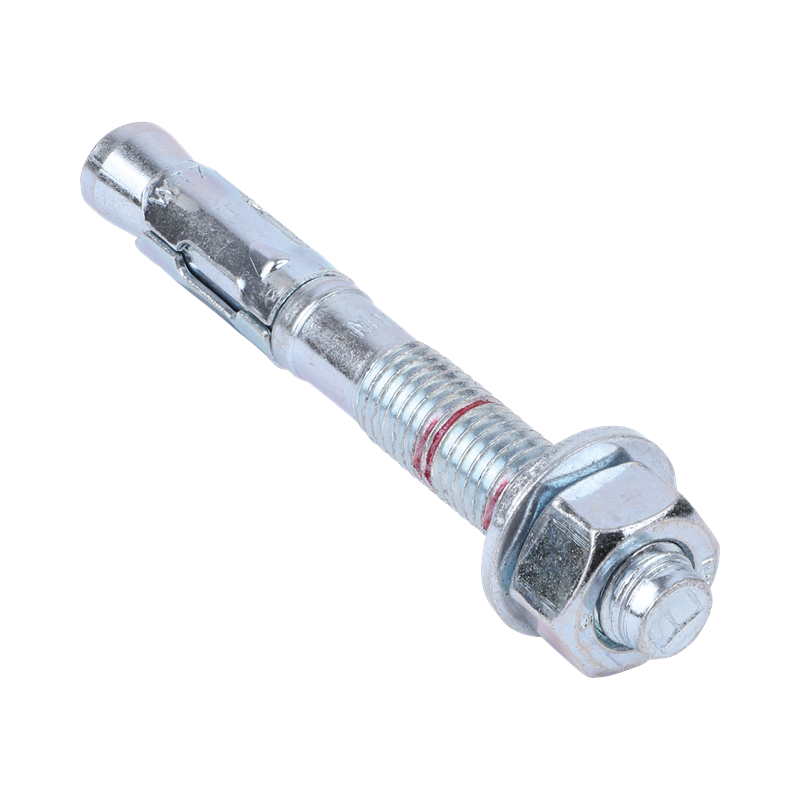

Walraven WT7 Throughbolt 10x100/20

high performance expansion anchor for non-cracked concrete

608110100 Application: Indoor HVAC fixings & supports

Features

high-performance load-capacity
ETA Option 7 approval for non-cracked concrete
fire resistance class R30-R120 for design of anchorages under exposure to fire
two embedment depths provide installation flexibility
pre- and through-fixing
substrate type: non-cracked concrete, stone
material: steel
zinc plated
for loads and more information, refer to the product data sheet and/or the ETA report

Identification
Product Number	608110100

Product Dimensions
Drill Hole Depth (mm) Ref. letter: h0	75
Drill Hole Diameter (mm) Ref. letter: d0	10
Effective Embedment Depth (mm) Ref. letter: Hef	55
Maximum Fixture Thickness (mm) Ref. letter: tfix,max	20
Min. Drill Hole Depth (mm) Ref. letter: h0 min	60
Minimum Substrate Thickness (mm) Ref. letter: hmin	110
Standard Embedment Depth (mm) Ref. letter: hnom	67
Thread Size Ref. letter: TS	M10
Total Height (mm) Ref. letter: H	20
Total Length (mm) Ref. letter: L	100
Total Width (mm) Ref. letter: W	20
Width Across Flats (mm) Ref. letter: WAF	17

Technical characteristics
Anchor Model	Male thread
Colour	Zinc
Fastening Provision	Nut
Fire Resistant?	Yes
Layer Thickness Surface Protection (µm)	5
Material	Steel
Material Quality	Class 5.8
Maximum Fire Resistance Class According To DIN EN 13501 2	R120
Number Of Nuts	1
Number Of Washers?	1
Pre-Positioned Installation?	Yes
Push-Through Installation?	Yes
Screwing System	External hexagon
Spaced Installation?	No
Suitable for	Non-cracked concrete, Natural stone, Concrete
Surface Protection	Zinc Plated
Surface Treatment	Untreated
Thread Type Ref. letter: TT	Metric
Torque Moment For Installation (Nm) Ref. letter: Tinst	35
With Collar?	No

Approvals & Declarations
CE mark	Yes
EN 1363-1 test report	Yes
European Technical Assessment (ETA)	Yes

Safeloading
Recommended Load In Uncracked Concrete C20/25 (N)	9000

Weights
Weight [g] (g)	63
Weight [kg] (kg)	0.06

Packaging information
Logistical Appearance Shape	No Pack Type Available
Pack 1 Shape	Cardboard Box
Pack 1 Qty	100
Pack 1 Height (mm)	112
Pack 1 Width (mm)	158
Pack 1 Length (mm)	168
Pack 1 Weight (g)	6450
Pack 2 Shape	Cardboard Box
Pack 2 Qty	400
Pack 2 Height (mm)	240
Pack 2 Width (mm)	172
Pack 2 Length (mm)	370
Pack 2 Weight (g)	26100
Pack 3 Shape	No Pack Type Available
