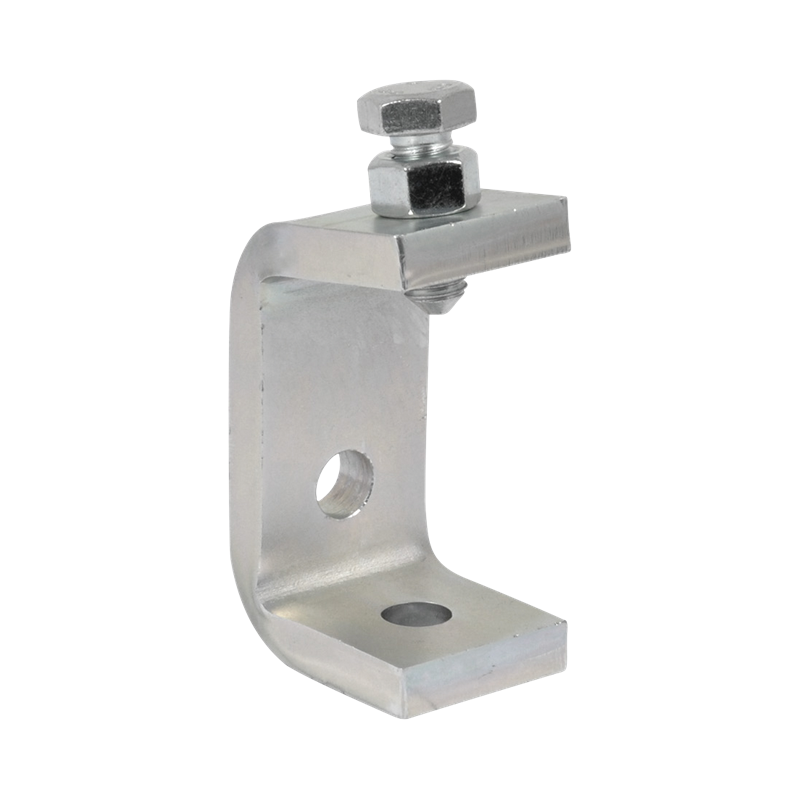

Walraven Strut Beam Clamp zp M12

to connect Strut rails to steel beams

66583736 Produktserie: Walraven RapidStrut®
Ladda ner produktblad

Få projektsupport

Walraven Strut Beam Clamp zp M12

to connect Strut rails to steel beams

66583736

Consent

Funktioner

  • for a solid fixing to steel construction without the need for welding or drilling
  • always use 2 beam clamps per fixing
  • material: steel 1.0332
  • zinc plated
Walraven Strut Beam Clamp zp M12
Walraven Strut Beam Clamp zp M12
Application
Walraven Strut Beam Clamp zp M12
Walraven Strut Beam Clamp zp M12
Application

Specifikationer

Walraven RapidStrut® Beam Clamp

Identification
Identification
Product Number 66583736
RSK Number 4125783
BVB Number 140342

Product Dimensions
Product Dimensions
Clamping Range (mm) Referensbrev: CR 1 - 20
Total Height (mm) Referensbrev: H 92
Total Width (mm) Referensbrev: W 51
Total Length (mm) Referensbrev: L 40
Thread Size Referensbrev: TS M12
Thread Length (mm) Referensbrev: TL 50
Width (mm) Referensbrev: w 41
Material Thickness (mm) Referensbrev: MT 10

Technical characteristics
Technical characteristics
Torque Moment For Installation (Nm) Referensbrev: Tinst 30
Material Steel
Material Quality St. 1.0332
Surface Protection Zinc Plated
Surface Treatment Untreated

Safeloading
Safeloading
Maximum Allowed Load Faz (N) Referensbrev: Fa,z 4500

Weights
Weights
Weight [g] (g) 445
Weight [kg] (kg) 0.45

Packaging information
Packaging information
Pack 1 Shape Cardboard Box
Pack 1 Qty 25
Pack 1 Height (mm) 187
Pack 1 Width (mm) 206
Pack 1 Length (mm) 272
Pack 1 Weight (g) 11400
Pack 2 Shape Pallet ISO 0-1/1
Pack 2 Qty 2250
Pack 2 Height (mm) 1079
Pack 2 Width (mm) 1200
Pack 2 Length (mm) 800
Pack 2 Weight (g) 1040000
Pack 3 Shape No Pack Type Available

Nedladdningar och certifikat

Produktblad H3620 Walraven RapidStrut® Balkklammer PDF | EN | Product info sheet Ladda ner
