Walraven ISO Kit for Female Thread Units Strut

universal Mounting Set for outdoor appliances

6901998

Ladda ner produktblad

Funktioner

fixing kit for heat pumps with inner thread connections on the underside of the unit
to fix heat pumps with inner thread connections to Walraven Wall Mounting Sets Type 62|H (6901975 / 6901990)
please carefully read the assembly instructions of both fixing Kit (6901998) as well as Wall Mounting Set Type 62|H (6901975 / 6901990)
material: steel 1.0332
surface protection: - product is part of the Walraven BIS UltraProtect® 1000 system - suitable for in- and outdoor applications - stands min. 1,000 hours salt spray test (max. 5% red rust) according to ISO 9227

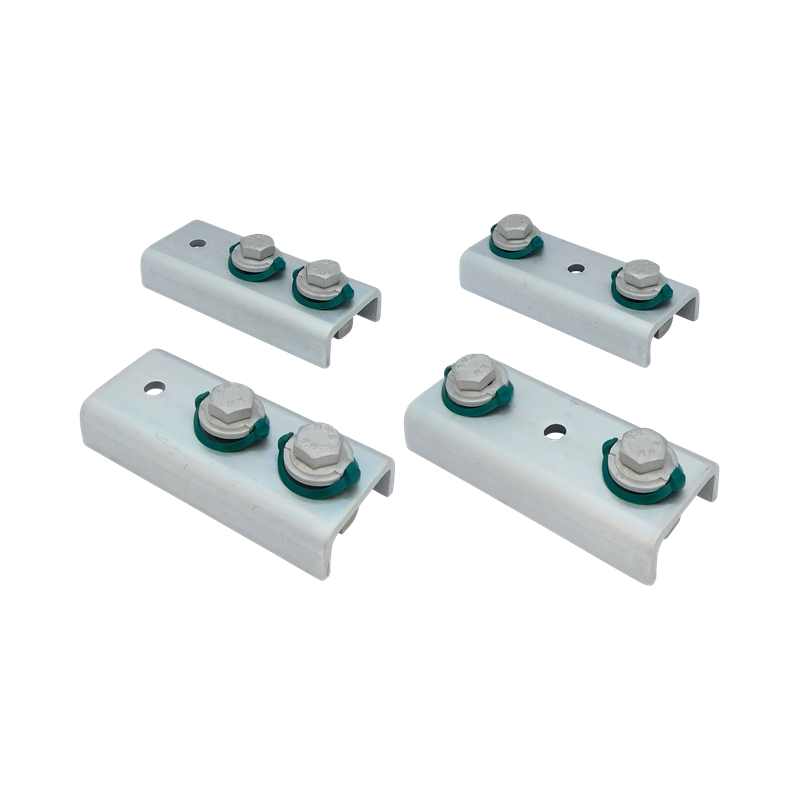

set consists of: - 2 U-shaped brackets with pre-assembled fasteners and 1 open hole at the end - 2 U-shaped brackets with pre-assembled fasteners and 1 open hole in the middle - assembly instruction

Walraven ISO Kit for Female Thread Units Strut

Specifikationer

Identifiering

Identifiering
Product Number	6901998

Product Dimensions

Product Dimensions
Height (mm) Referensbrev: h	16
Length (mm) Referensbrev: l	122
Heart To Heart Distance (mm) Referensbrev: k	41
Total Height (mm) Referensbrev: H	37.7
Total Width (mm) Referensbrev: W	52
Total Length (mm) Referensbrev: L	122

Technical characteristics

Technical characteristics
Material	Steel
Material Quality	St. 1.0332
Suitable for	C-Profile
Surface Protection	BUP1000
Surface Treatment	Untreated

Weights

Weights
Weight [g] (g)	1960
Weight [kg] (kg)	1.96

Packaging information

Packaging information
Pack 1 Shape	Cardboard Box
Pack 1 Qty	1
Pack 1 Height (mm)	70
Pack 1 Width (mm)	133
Pack 1 Length (mm)	200
Pack 1 Weight (g)	2010
Pack 2 Shape	Pallet ISO 0-1/1
Pack 2 Qty	432
Pack 2 Height (mm)	984
Pack 2 Width (mm)	1200
Pack 2 Length (mm)	800
Pack 2 Weight (g)	890000
Pack 3 Shape	No Pack Type Available

Nedladdningar och certifikat

Produktblad H1930 Walraven ISO-kit för väggmontering PDF | EN | Product info sheet Ladda ner
