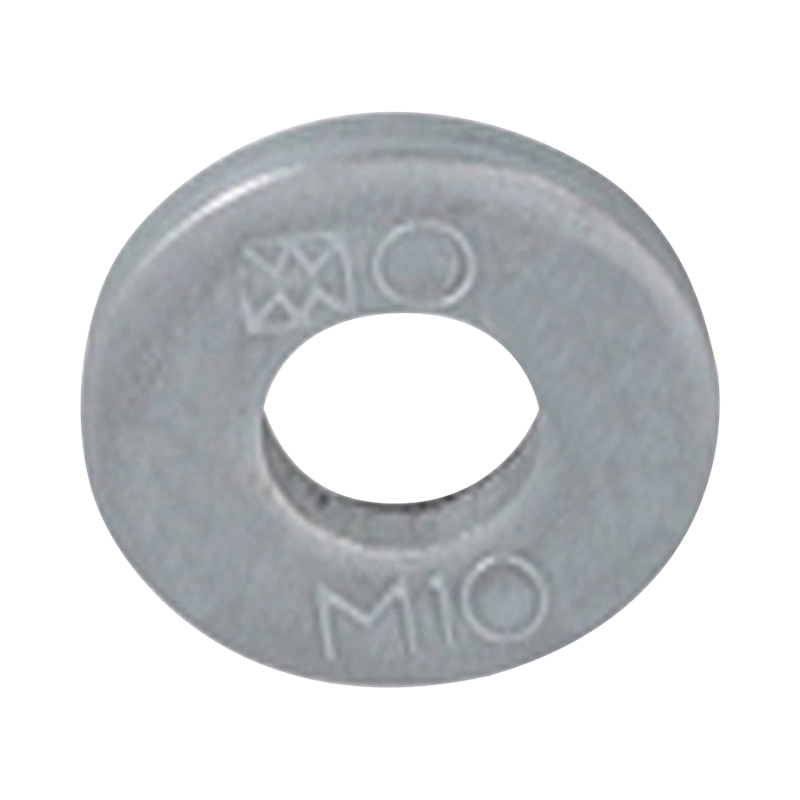

Walraven Washer 25mm WM0-35 zp 6.4/25mm

fixing to Walraven RapidRail®

6533306
Ladda ner produktblad

Få projektsupport

Walraven Washer 25mm WM0-35 zp 6.4/25mm

fixing to Walraven RapidRail®

6533306

Consent

Funktioner

  • suitable for rails 27x18, 30x15, 30x20, 30x30, 30x45
  • material: steel
  • zinc plated
  • tested for fire safety
Walraven Washer 25mm WM0-35 zp 6.4/25mm
Walraven Washer 25mm WM0-35 zp 6.4/25mm
Walraven Washer 25mm WM0-35 zp 6.4/25mm
Walraven Washer 25mm WM0-35 zp 6.4/25mm

Specifikationer

Walraven Washer (Flat)

Identification
Identification
Product Number 6533306

Product Dimensions
Product Dimensions
Total Height (mm) Referensbrev: H 3
Total Width (mm) Referensbrev: W 25
Total Length (mm) Referensbrev: L 25
Inner Diameter (mm) Referensbrev: ID 6.4
Outer Diameter (mm) Referensbrev: OD 25
Material Thickness (mm) Referensbrev: MT 3

Technical characteristics
Technical characteristics
For Rail Type 27x18, 30x15, 30x20, 30x30, 38x40
Material Steel
Material Quality St. 1.0332
Surface Protection Zinc Plated
Surface Treatment Untreated

Approvals & Declarations
Approvals & Declarations
CE mark No
EN 1363-1 test report No
European Technical Assessment (ETA) No

Weights
Weights
Weight [g] (g) 9
Weight [kg] (kg) 0.01

Packaging information
Packaging information
Pack 1 Shape Bag
Pack 1 Qty 100
Pack 1 Height (mm) 30
Pack 1 Width (mm) 80
Pack 1 Length (mm) 110
Pack 1 Weight (g) 840
Pack 2 Shape Cardboard Box
Pack 2 Qty 1000
Pack 2 Height (mm) 70
Pack 2 Width (mm) 200
Pack 2 Length (mm) 266
Pack 2 Weight (g) 9099
Pack 3 Shape Pallet ISO 0-1/1
Pack 3 Qty 72000
Pack 3 Height (mm) 424
Pack 3 Width (mm) 1200
Pack 3 Length (mm) 800
Pack 3 Weight (g) 676128
Pack 4 Shape No Pack Type Available

Nedladdningar och certifikat

Produktblad G3075 Walraven bricka (platt) PDF | EN | Product info sheet Ladda ner
