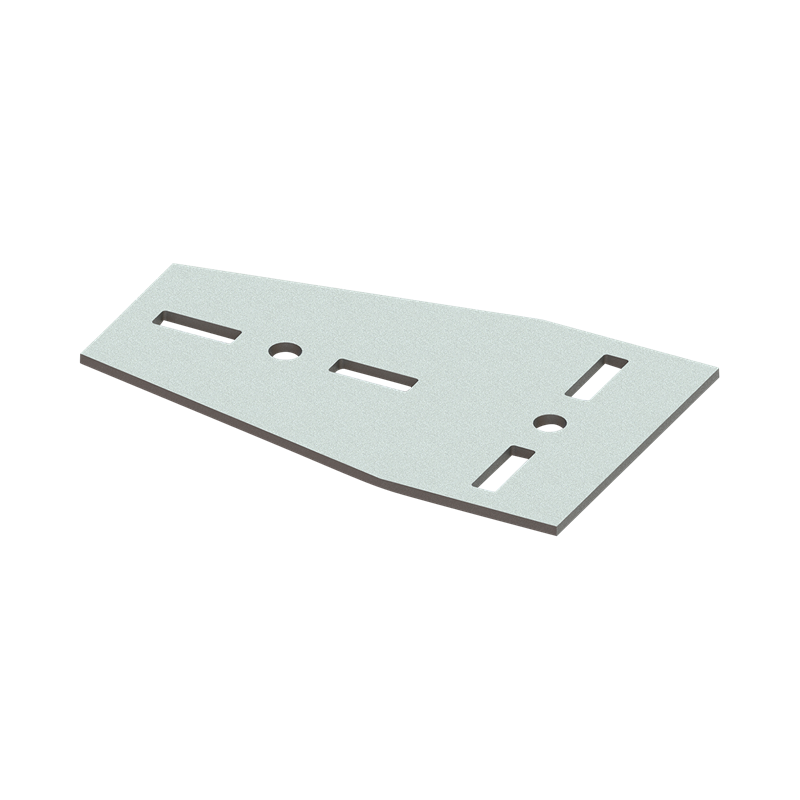

Walraven Maxx TC100 T-Connector hdg
to make Maxx rail fabrications
Features
- T-connector for Maxx profiles
- advised to use from both sides always
- can also be used to strengthen Maxx constructions with a joint connection
- material: steel S235JR
- hot dip galvanized
Specifications
Identification
| Product Number | 6589911 |
|---|
Product Dimensions
| Height (mm) Ref. letter: h | 6 |
|---|---|
| Width (mm) Ref. letter: w | 100 |
| Length (mm) Ref. letter: l | 290 |
| Material Thickness (mm) Ref. letter: MT | 6 |
| Heart To Heart Distance (mm) Ref. letter: k | 100 |
| Total Height (mm) Ref. letter: H | 6 |
| Total Width (mm) Ref. letter: W | 175 |
| Total Length (mm) Ref. letter: L | 290 |
Technical characteristics
| For Rail Type | 100x100, 100x120, 100x150 |
|---|---|
| Torque Moment For Installation (Nm) Ref. letter: Tinst | 75 |
| Colour | Zinc |
| Material | Steel |
| Material Quality | St. 1.0332 |
| Model | T-connector |
| Surface Protection | Hot Dip Galvanized |
| Surface Treatment | Untreated |
Safeloading
| Maximum Allowed Load Faz (N) Ref. letter: Fa,z | 14500 |
|---|---|
| Maximum Allowed Load Fax (N) Ref. letter: Fa,x | 5000 |
Weights
| Weight [g] (g) | 1920 |
|---|---|
| Weight [kg] (kg) | 1.92 |
Packaging information
| Pack 1 Shape | Cardboard Box |
|---|---|
| Pack 1 Qty | 6 |
| Pack 1 Height (mm) | 89 |
| Pack 1 Width (mm) | 178 |
| Pack 1 Length (mm) | 398 |
| Pack 1 Weight (g) | 11600 |
| Pack 2 Shape | Pallet ISO 0-1/1 |
| Pack 2 Qty | 300 |
| Pack 2 Height (mm) | 345 |
| Pack 2 Width (mm) | 1200 |
| Pack 2 Length (mm) | 800 |
| Pack 2 Weight (g) | 605000 |
| Pack 3 Shape | No Pack Type Available |
Downloads & certificates
Related articles
65019622 | Walraven Maxx MX120 Profile 6m hdg 120x100x4
65019822 | Walraven Maxx MX120 Profile 8m hdg 120x100x4
65019625 | Walraven Maxx MX150 Profile 6m hdg 150x100x4
65019825 | Walraven Maxx MX150 Profile 8m hdg 150x100x4
65019620 | Walraven Maxx MX100 Profile 6m hdg 100x100x3
65019820 | Walraven Maxx MX100 Profile 8m hdg 100x100x3
65219214 | Walraven Maxx HF Hammerfix hdg M12x40mm
