Medium Duty Clamps

Medium Duty Clamps

Walraven’s 2-Screw clamps provide fast and reliable solutions to hold medium load pipes, either with or without load-bearing insulation.

Walraven Bifix® G2 – strong, versatile and suitable for outdoor use

Walraven Bifix® G2 is a unique and premium line of clamps covering all types of pipe fixing solutions, both in- and outdoors. The range consists of both lined and unlined clamps for steel, copper and multilayer pipes, Ø 10 – 225 mm. The two component EPDM lining improves the product’s ease of installation as well as the noise reduction properties (DIN 4109). Strength wise the Walraven Bifix® G2 holds medium to high loads, in accordance with both RAL GZ-655 and RAL GZ-656 under fire conditions.

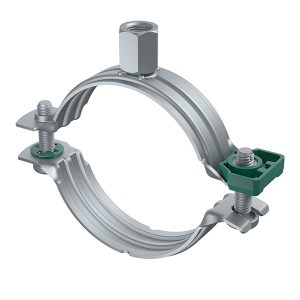

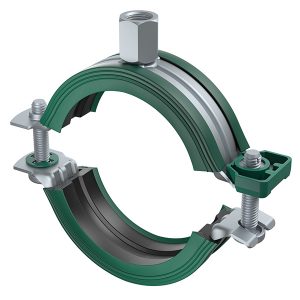

Bifix-G2-linedBifix-G2-unlined

Bifix-5000 G2

Walraven Bifix® 5000 G2 – for plastic pipe

The Walraven Bifix® 5000 G2 is specifically designed for PE pipes and allows either fixing or sliding to handle the pipe expansion. It can be used both in and outdoors on pipes Ø 16 – 200 mm. Strength wise the Walraven Bifix® 5000 G2 holds medium to high loads, in accordance with both RAL GZ-655 and RAL GZ-656 under fire conditions.

Walraven 2S – Standard pipe clamp, gapless range

With the zinc plated Walraven 2S Walraven offers a standard clamp to fix steel, copper and multilayer pipes Ø 10 mm up to and including Ø 225 mm. The gapless range, available both with and without rubber lining, has an optimised steel design and provides a solution for every light/medium load in accordance with RAL GZ-655.

Back to medium fixing solutions

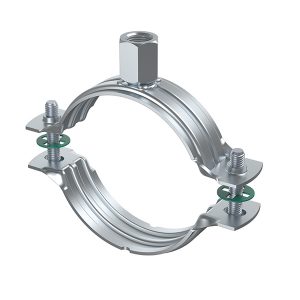

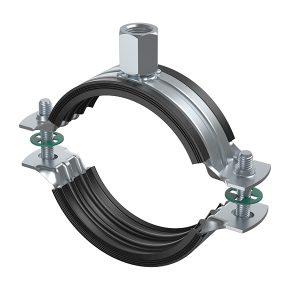

2S-lined 2S-unlined

Medium Duty Clamp selection:
