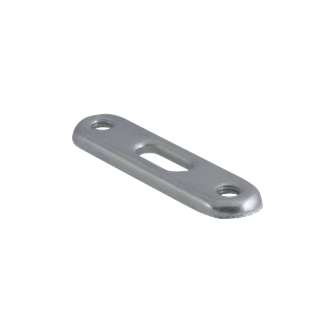

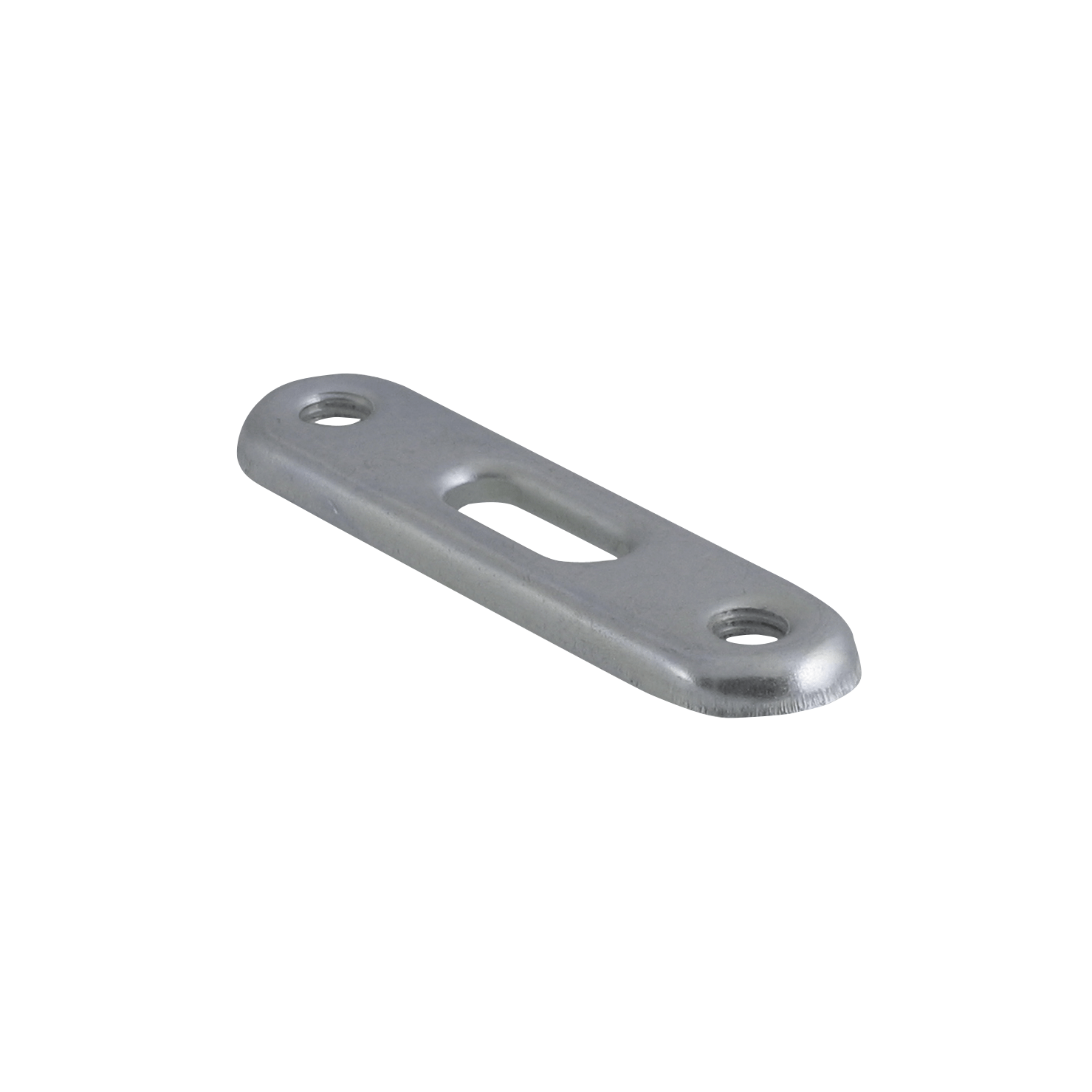

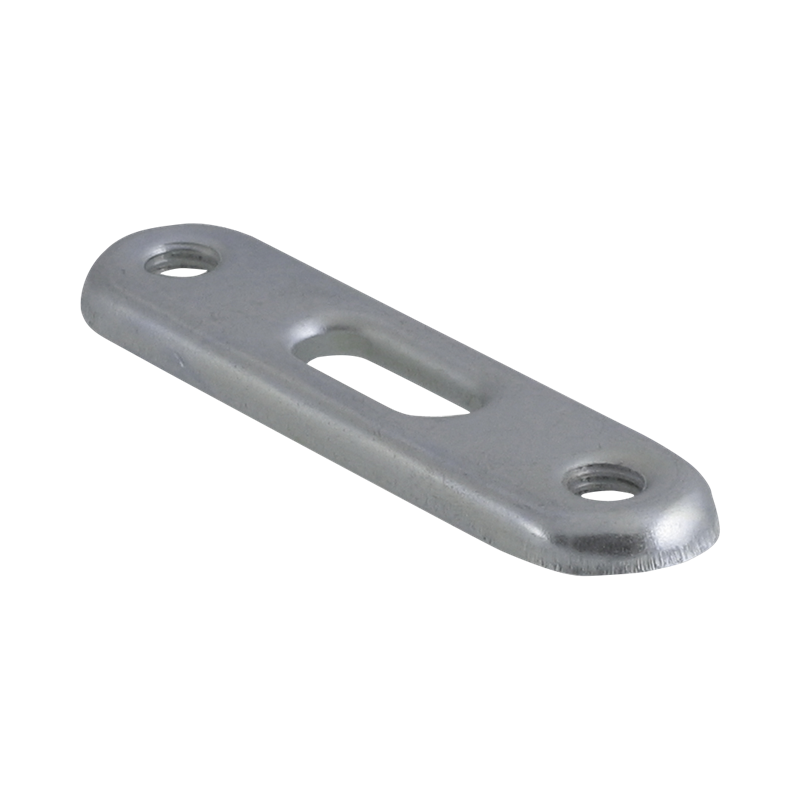

Walraven Double Wall Plate
double fixing of 2 clamps to wall or ceiling
Features
- with fixed centre distance
- max. allowed load must be equally distributed to both fixing points
- material: steel
- zinc plated
Articles
| Product Number | Connection Thread | Connection Thread 2 | Total Height | Total Width | Total Length | Material Thickness | Fixing Slot | Heart To Heart Distance | Maximum Allowed Load Faz | Saved articles list |
|---|---|---|---|---|---|---|---|---|---|---|
| Ref. letter | G | G2 | H | W | L | MT | FS | k | Fa,z | |
| Unit desc. | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (N) | |||
6748055
|
M8 | M8 | 7 | 21 | 75 | 1.5 | 20x8 | 55 | 1250 | |
|
6748065
|
M8 | M8 | 6 | 20 | 85 | 1.5 | 20x8.5 | 65 | 1010 | |
|
6748085
|
M8 | M8 | 6 | 20 | 105 | 1.5 | 20x8.5 | 85 | 730 | |
|
6748105
|
M8 | M8 | 6 | 20 | 125 | 1.5 | 20x8.5 | 105 | 420 | |
|
6748150
|
M8 | M8 | 6 | 20 | 170 | 1.5 | 20x8.5 | 150 | 270 |
