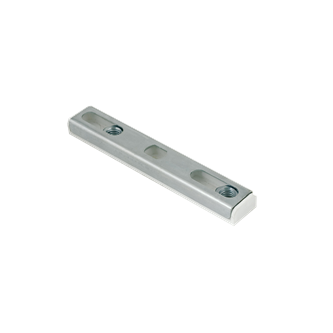

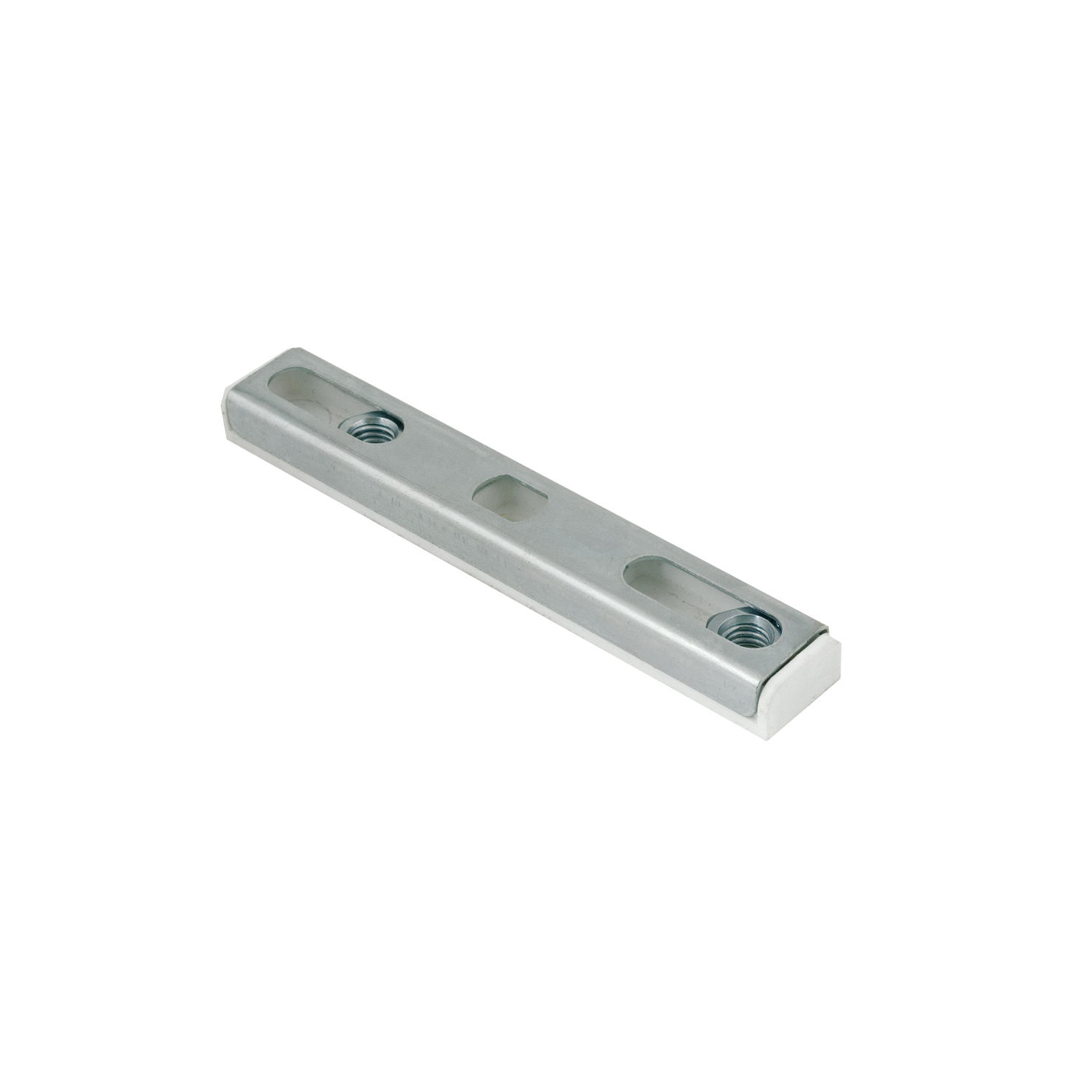

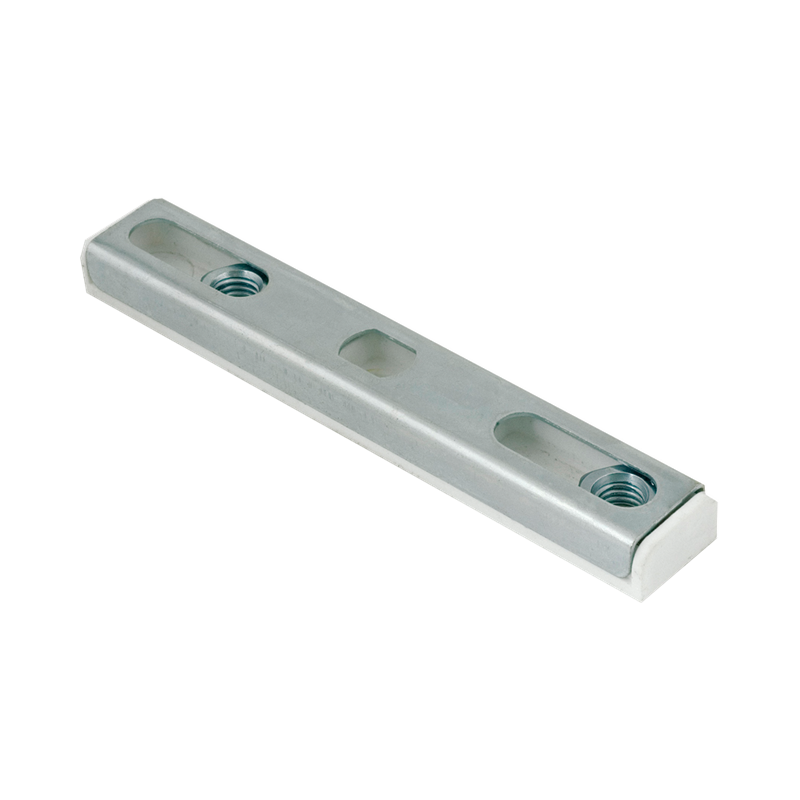

Walraven Duplo Fixing Plate
double fixing of 2 clamps to wall or ceiling
Features
- 2 hexagon nuts M8 are infinitely adjustable in center distance
- attach 2 pipes on a wall or ceiling with only one drill hole
- material: metal parts made of steel; plastic housing made of PP (polypropylene), white
- zinc plated
Articles
| Product Number | Connection Thread | Total Height | Total Width | Total Length | Material Thickness | Fixing Slot | Heart To Heart Distance | Maximum Allowed Load Faz | Saved articles list |
|---|---|---|---|---|---|---|---|---|---|
| Ref. letter | G | H | W | L | MT | FS | k | Fa,z | |
| Unit desc. | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (N) | ||
6743001
|
M8 | 11 | 20 | 118 | 1 | 12x10 | 60 - 100 | 290 | |
|
6743002
|
M8 | 11 | 20 | 146 | 1 | 12x8.5 | 90 - 130 | 590 |
