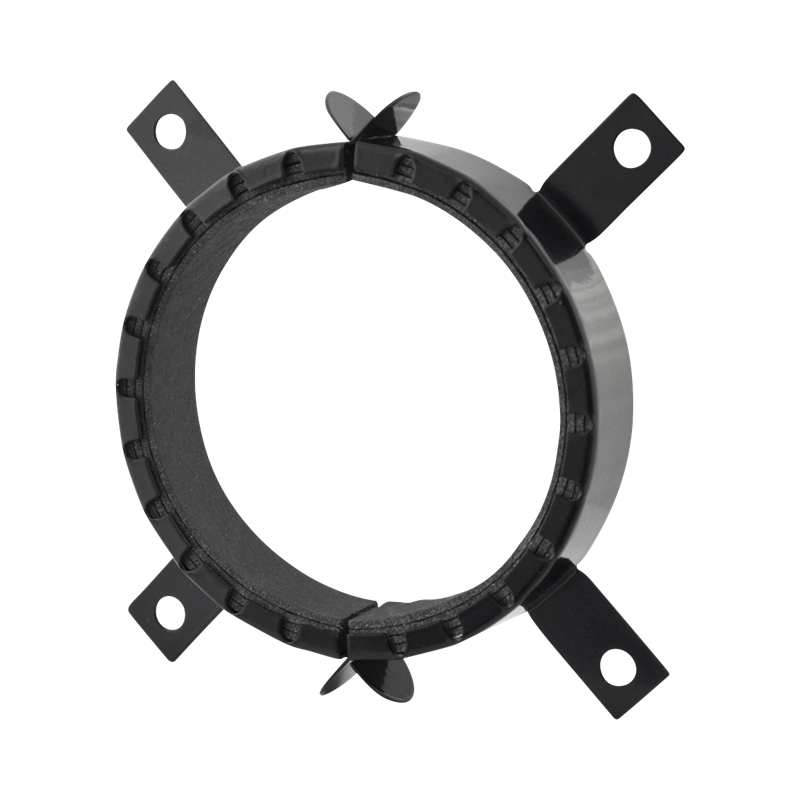

Walraven Pacifyre® AWMIII Fire Collar 140mm
Standard collar with low collar height for plastic pipes
Features
- Two-part fire collar designed for easy installation
- Zero distance is possible between fire collars
- With a fire resistance up to EI 120 U/C
- Low collar height, allowing building of bends, sockets and T-joints close to the wall or ceiling
- Should be fixed on both sides of the wall / ceiling
- Tested according to EN 1366-3
Specifications
Identification
| Product Number | 2135140140 |
|---|
Product Dimensions
| Outside Pipe Diameter (mm) Ref. letter: D | 140 |
|---|---|
| Inner Diameter (mm) Ref. letter: ID | 144 |
| Outer Diameter (mm) Ref. letter: OD | 168 |
| Total Height (mm) Ref. letter: H | 40 |
| Total Width (mm) Ref. letter: W | 168 |
| Total Depth (mm) Ref. letter: DtT | 168 |
| Collar Installation Height (mm) Ref. letter: CIH | 40 |
| Fixing Hole (mm) Ref. letter: FH | 9 |
| Intumescent Layer Thickness (mm) Ref. letter: ILT | 12 |
| Material Thickness (mm) Ref. letter: MT | 1 |
Technical characteristics
| Number Of Fixations Needed | 4 |
|---|---|
| Colour | Black |
| Halogen Free? | Yes |
| Locking Mechanism | Snap lock |
| Material | Steel |
| Material Quality | St. 1.0226 |
| Maximum Fire Resistance Class According To DIN EN 13501 2 | 120 |
| Minimum Fire Resistance Class According To DIN EN 13501 2 | 60 |
| Noise Reducing? | No |
| Shape | Round |
| Suitable for | Plastic Tube |
| Surface Protection | Epoxy Powder Coated |
| Surface Treatment | Untreated |
| Temperature Reaction (°C) | 180 |
| UV Resistant? | Yes |
| With Insulation Foam? | No |
| With Mounting Material? | No |
Approvals & Declarations
| CE mark | Yes |
|---|---|
| European Technical Assessment (ETA) | Yes |
Weights
| Weight [g] (g) | 440 |
|---|---|
| Weight [kg] (kg) | 0.44 |
Packaging information
| Pack 1 Shape | Cardboard Box |
|---|---|
| Pack 1 Qty | 2 |
| Pack 1 Height (mm) | 105 |
| Pack 1 Width (mm) | 200 |
| Pack 1 Length (mm) | 266 |
| Pack 1 Weight (g) | 991 |
| Pack 2 Shape | Pallet ISO 0-1/1 |
| Pack 2 Qty | 288 |
| Pack 2 Height (mm) | 984 |
| Pack 2 Width (mm) | 1200 |
| Pack 2 Length (mm) | 800 |
| Pack 2 Weight (g) | 164000 |
| Pack 3 Shape | No Pack Type Available |
