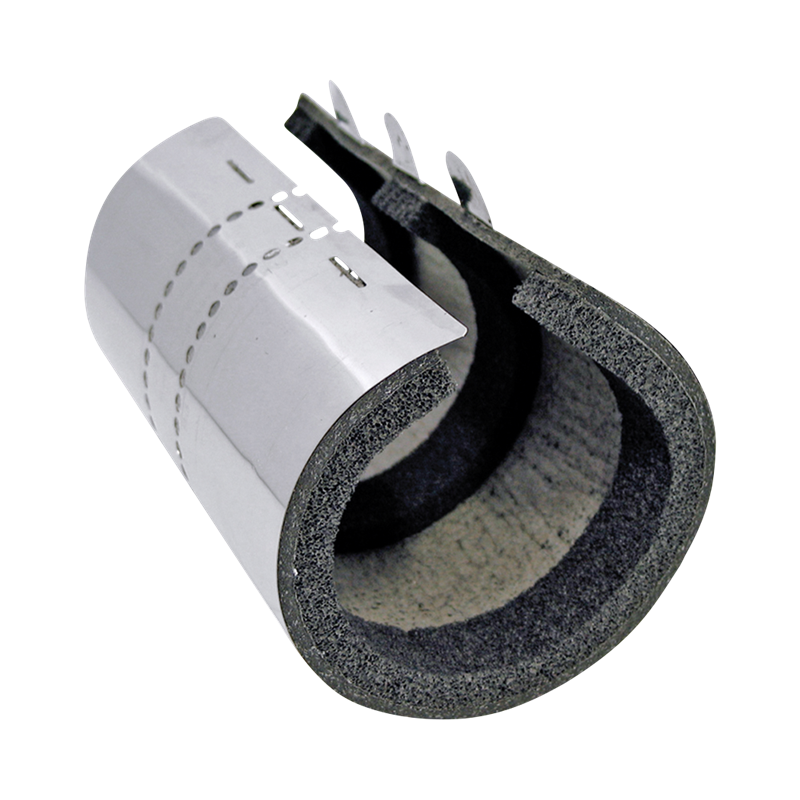

Walraven Pacifyre® MKII Fire Sleeve (P) 95-103mm
The flexible soloution for simple to complex situations with plastic and multi-layer pipes
Features
- The sleeve provides a guaranteed protection against fire, smoke and noise
- With a fire resistance up to EI 120 U/C
- Expansion and contraction of the pipe remains possible
- Minimum space required, therefore can be applied in areas of hard accessibility
- A higher flexibility due to minimal overhang on wall and floor seals
- Only one product per penetratioin needed in walls and floors
- simple and easy to install
- No tools, drilling or extra fixing materials needed
- Noise reduction test report from IRB (Fraunhofer Institute – Germany) available
- Tested and approved according to EN 1366-3
Specifications
Identification
| Product Number | 2154099101 |
|---|
Product Dimensions
| Outside Pipe Diameter (mm) Ref. letter: D | 95 - 103 |
|---|---|
| Inner Diameter (mm) Ref. letter: ID | 103 |
| Outer Diameter (mm) Ref. letter: OD | 125 |
| Total Height (mm) Ref. letter: H | 125 |
| Total Width (mm) Ref. letter: W | 125 |
| Total Length (mm) Ref. letter: L | 205 |
| Intumescent Layer Thickness (mm) Ref. letter: ILT | 4 |
| Material Thickness (mm) Ref. letter: MT | 0.25 |
Technical characteristics
| Colour | Stainless Steel |
|---|---|
| Halogen Free? | Yes |
| Material | Stainless Steel |
| Material Quality | 1.4016 (AISI 430) |
| Noise Reducing? | Yes |
| Number Of Fixations Needed | 0 |
| Suitable for | Plastic Tube |
| Surface Protection | Untreated |
| Surface Treatment | Untreated |
| UV Resistant? | Yes |
Approvals & Declarations
| CE mark | Yes |
|---|---|
| European Technical Assessment (ETA) | Yes |
Weights
| Weight [g] (g) | 450 |
|---|---|
| Weight [kg] (kg) | 0.45 |
Packaging information
| Pack 1 Shape | Cardboard Box |
|---|---|
| Pack 1 Qty | 1 |
| Pack 1 Height (mm) | 125 |
| Pack 1 Width (mm) | 125 |
| Pack 1 Length (mm) | 214 |
| Pack 1 Weight (g) | 729 |
| Pack 2 Shape | Cardboard Box |
| Pack 2 Qty | 6 |
| Pack 2 Height (mm) | 232 |
| Pack 2 Width (mm) | 266 |
| Pack 2 Length (mm) | 400 |
| Pack 2 Weight (g) | 2914 |
| Pack 3 Shape | Pallet ISO 0-1/1 |
| Pack 3 Qty | 162 |
| Pack 3 Height (mm) | 840 |
| Pack 3 Width (mm) | 1200 |
| Pack 3 Length (mm) | 800 |
| Pack 3 Weight (g) | 93900 |
| Pack 4 Shape | No Pack Type Available |
