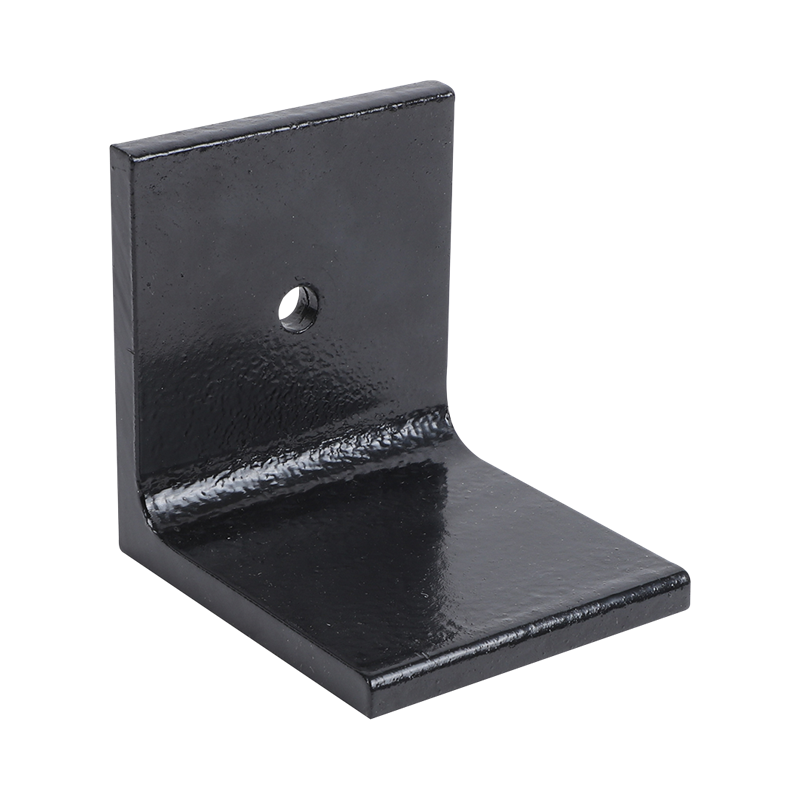

Walraven VibraTek® A-L1 Weld Bracket 100x100x90
an L-shaped welding bracket
Features
- For welding to concrete inertia base frames and use in combination with MS-1X-CBL spring isolators
- epoxy-powder coated for corrosion resistance
- welding provides flexibility in application design
Specifications
Identification
| Product Number | 2802100100 |
|---|
Product Dimensions
| Total Height (mm) Ref. letter: H | 100 |
|---|---|
| Total Width (mm) Ref. letter: W | 100 |
| Total Length (mm) Ref. letter: L | 90 |
| Material Thickness (mm) Ref. letter: MT | 10 |
| Fixing Hole (mm) Ref. letter: FH | 11 |
Technical characteristics
| Colour | Black |
|---|---|
| Layer Thickness Surface Protection (µm) | 70 |
| Material | Steel |
| Material Quality | St. 1.0332 |
| Surface Protection | Epoxy Powder Coated |
| Surface Treatment | Untreated |
Weights
| Weight [g] (g) | 1320 |
|---|---|
| Weight [kg] (kg) | 1.32 |
Packaging information
| Pack 1 Shape | Cardboard Box |
|---|---|
| Pack 1 Qty | 15 |
| Pack 1 Height (mm) | 182 |
| Pack 1 Width (mm) | 189 |
| Pack 1 Length (mm) | 239 |
| Pack 1 Weight (g) | 19960 |
| Pack 2 Shape | Pallet ISO 0-1/1 |
| Pack 2 Qty | 855 |
| Pack 2 Height (mm) | 864 |
| Pack 2 Width (mm) | 1200 |
| Pack 2 Length (mm) | 800 |
| Pack 2 Weight (g) | 1158720 |
| Pack 3 Shape | No Pack Type Available |
