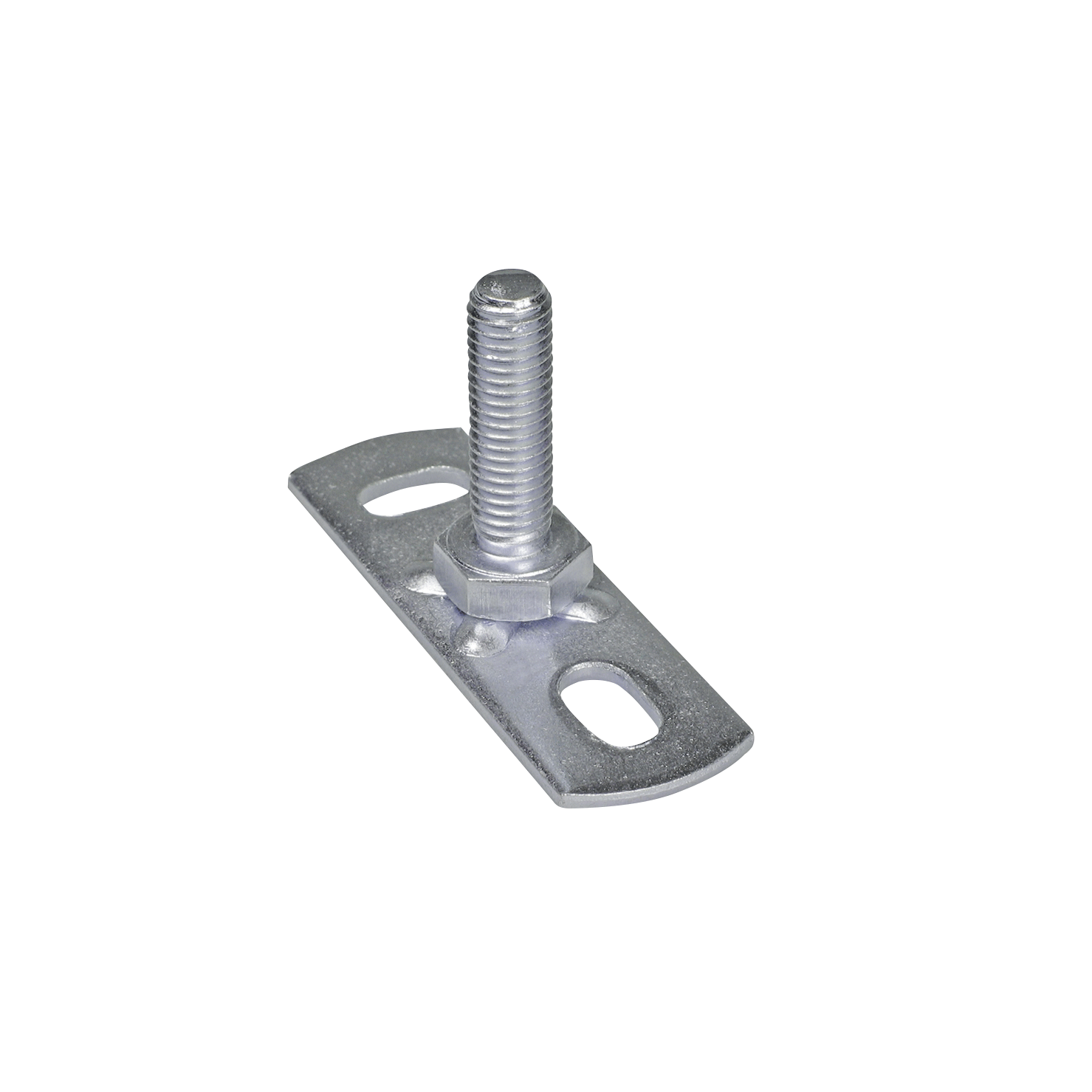

Walraven Wall Plate 672 (Male Thread)
fixing to wall or ceiling
Features
- fixings to ceiling or floor (only tension loads recommended)
- slots at 90° to each other to simplify fixing
- with resistance welded male stud bolt
- material: steel
- zinc plated
Articles
| Product Number | Connection Thread | Length Metrical Thread | Total Height | Total Width | Total Length | Material Thickness | Fixing Slot | Fixing Slot 2 | Heart To Heart Distance | Maximum Allowed Load Faz | Saved articles list |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Ref. letter | G | Lm | H | W | L | MT | FS | FS 2 | k | Fa,z | |
| Unit desc. | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (N) | ||
6723006
|
M6 | 25 | 32 | 25 | 80 | 3 | 15x8.5 | 15x8.5 | 50 | 2500 | |
|
|
M8 | 25 | 32 | 25 | 80 | 3 | 15x8.5 | 15x8.5 | 50 | 2500 | |
|
6723010
|
M10 | 35 | 45 | 25 | 80 | 3 | 15x8.5 | 15x8.5 | 50 | 2500 | |
|
6723108
|
M8 | 10 | 17 | 25 | 80 | 3 | 15x8.5 | 15x8.5 | 50 | 2500 | |
|
6723110
|
M10 | 12 | 22 | 25 | 80 | 3 | 15x8.5 | 15x8.5 | 50 | 2500 |
