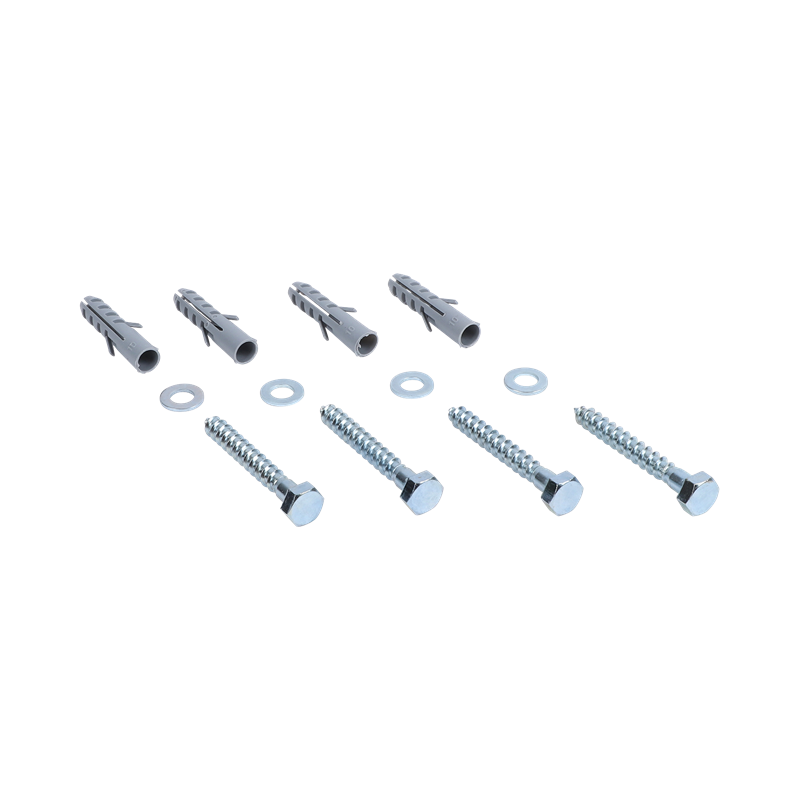

Walraven Wood Thread Bolt Set zp 4pcs 8x50mm
fixing set with plugs
Features
- suitable for variety of substrates
- easily slides into holes
- does not expand prematurely
- material: metal parts made of steel, plug of PA (polyamide)
- conists of: 4 screws, 4 washers, 4 plugs
- substrate type: lightweight concrete, concrete, solid masonry, rock, sand-lime bricks, natural stone, gypsum
Specifications
Identification
| Product Number | 0658200 |
|---|
Product Dimensions
| Plug Diameter (mm) | 10 |
|---|---|
| Plug Length (mm) Ref. letter: LP | 49 |
| Screw Length (mm) Ref. letter: ls | 50 |
| Screw Size Ref. letter: ds | 8.0 |
| Shaft Diameter (mm) Ref. letter: SD | 8 |
| Total Height (mm) Ref. letter: H | 16 |
| Total Length (mm) Ref. letter: L | 55.5 |
| Total Width (mm) Ref. letter: W | 16 |
| Width Across Flats (mm) Ref. letter: WAF | 13 |
Technical characteristics
| Colour | Zinc |
|---|---|
| Head Shape | Hexagon Head |
| Material | Steel |
| Material Quality | St. 1.0332 |
| Screwing System | External hexagon |
| Surface Protection | Zinc Plated |
| Surface Treatment | Untreated |
| With Cover Cap? | No |
| With Nut? | No |
| With Plug? | Yes |
| With Washer? | Yes |
Approvals & Declarations
| CE mark | No |
|---|---|
| European Technical Assessment (ETA) | No |
Weights
| Weight [g] (g) | 94 |
|---|---|
| Weight [kg] (kg) | 0.09 |
Packaging information
| Pack 1 Shape | Cardboard Box |
|---|---|
| Pack 1 Qty | 50 |
| Pack 1 Height (mm) | 175 |
| Pack 1 Width (mm) | 200 |
| Pack 1 Length (mm) | 266 |
| Pack 1 Weight (g) | 4840 |
| Pack 2 Shape | Pallet ISO 0-1/1 |
| Pack 2 Qty | 6300 |
| Pack 2 Height (mm) | 1019 |
| Pack 2 Width (mm) | 1200 |
| Pack 2 Length (mm) | 800 |
| Pack 2 Weight (g) | 631000 |
| Pack 3 Shape | No Pack Type Available |
