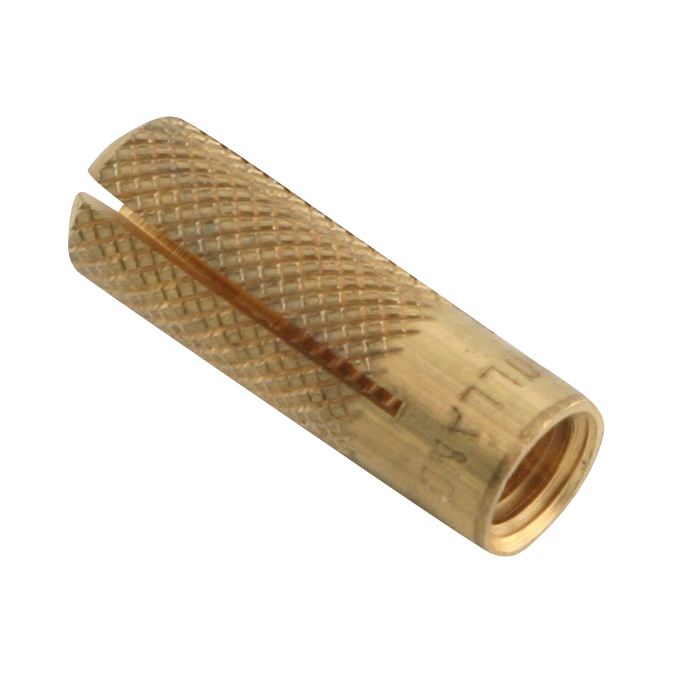

Walraven Wall Plug Ms M7Bx27.5
standard brass expansion anchor
Features
- reduced anchor length requires less drilling
- for use with standard metric bolts and threaded rods
- does not require a setting tool
- knurled external surface provides improved grip and resists rotation in the hole
- material: brass
- corrosion resistant
Specifications
Identification
| Product Number | 6107007 |
|---|
Product Dimensions
| Thread Size Ref. letter: TS | M7x1.0 |
|---|---|
| Total Height (mm) Ref. letter: H | 10 |
| Total Width (mm) Ref. letter: W | 10 |
| Total Length (mm) Ref. letter: L | 27.5 |
| Drill Hole Diameter (mm) Ref. letter: d0 | 10 |
| Min. Drill Hole Depth (mm) Ref. letter: h0 min | 35 |
| Standard Embedment Depth (mm) Ref. letter: hnom | ≥ 28 |
| Minimum Substrate Thickness (mm) Ref. letter: hmin | 100 |
| Thread Pitch (mm) Ref. letter: TP | 1 |
Technical characteristics
| Thread Type Ref. letter: TT | Metric |
|---|---|
| Colour | Brass |
| Fastening Provision | Stud |
| Material | Brass |
| Suitable for | Concrete |
| Surface Protection | Untreated |
| Surface Treatment | Untreated |
| With Collar? | No |
Approvals & Declarations
| CE mark | No |
|---|---|
| EN 1363-1 test report | No |
| European Technical Assessment (ETA) | No |
Weights
| Weight [g] (g) | 9 |
|---|---|
| Weight [kg] (kg) | 0.01 |
Packaging information
| Pack 1 Shape | Cardboard Box |
|---|---|
| Pack 1 Qty | 100 |
| Pack 1 Height (mm) | 80 |
| Pack 1 Width (mm) | 76 |
| Pack 1 Length (mm) | 159 |
| Pack 1 Weight (g) | 941 |
| Pack 2 Shape | Cardboard Box |
| Pack 2 Qty | 500 |
| Pack 2 Height (mm) | 89 |
| Pack 2 Width (mm) | 178 |
| Pack 2 Length (mm) | 398 |
| Pack 2 Weight (g) | 4830 |
| Pack 3 Shape | Pallet ISO 0-1/1 |
| Pack 3 Qty | 180000 |
| Pack 3 Height (mm) | 945 |
| Pack 3 Width (mm) | 1200 |
| Pack 3 Length (mm) | 800 |
| Pack 3 Weight (g) | 1760000 |
| Pack 4 Shape | No Pack Type Available |
