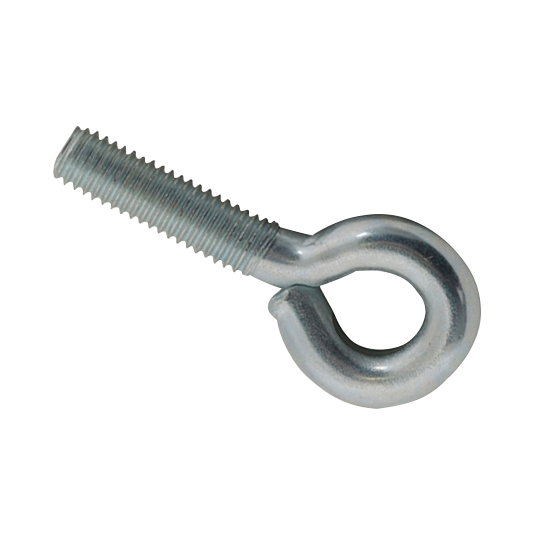

Walraven Screw Eye zp M10x30mm
for angle wire ties and hangers
Features
- material: steel
- zinc plated
Specifications
Identification
| Product Number | 6804030 |
|---|
Product Dimensions
| Height (mm) Ref. letter: h | 33 |
|---|---|
| Inner Diameter (mm) Ref. letter: ID | 15 |
| Shaft Diameter (mm) Ref. letter: SD | 9 |
| Thread Length (mm) Ref. letter: TL | 30 |
| Thread Pitch (mm) Ref. letter: TP | 1.5 |
| Thread Size Ref. letter: TS | M10 |
| Total Depth (mm) Ref. letter: DtT | 10 |
| Total Height (mm) Ref. letter: H | 71 |
| Total Width (mm) Ref. letter: W | 35 |
Technical characteristics
| Colour | Zinc |
|---|---|
| Full Thread? | No |
| Layer Thickness Surface Protection (µm) | 8 |
| Material | Steel |
| Material Quality | St. 1.0332 |
| Surface Protection | Zinc Plated |
| Surface Treatment | Untreated |
| Thread Type Ref. letter: TT | Metric |
| With Nut? | No |
Weights
| Weight [g] (g) | 50 |
|---|---|
| Weight [kg] (kg) | 0.05 |
Packaging information
| Pack 1 Shape | Bag |
|---|---|
| Pack 1 Qty | 25 |
| Pack 1 Height (mm) | 40 |
| Pack 1 Width (mm) | 100 |
| Pack 1 Length (mm) | 120 |
| Pack 1 Weight (g) | 1225 |
| Pack 2 Shape | Cardboard Box |
| Pack 2 Qty | 100 |
| Pack 2 Height (mm) | 108 |
| Pack 2 Width (mm) | 127 |
| Pack 2 Length (mm) | 190 |
| Pack 2 Weight (g) | 5119 |
| Pack 3 Shape | Pallet ISO 0-1/1 |
| Pack 3 Qty | 24000 |
| Pack 3 Height (mm) | 600 |
| Pack 3 Width (mm) | 1200 |
| Pack 3 Length (mm) | 800 |
| Pack 3 Weight (g) | 1249560 |
| Pack 4 Shape | No Pack Type Available |
