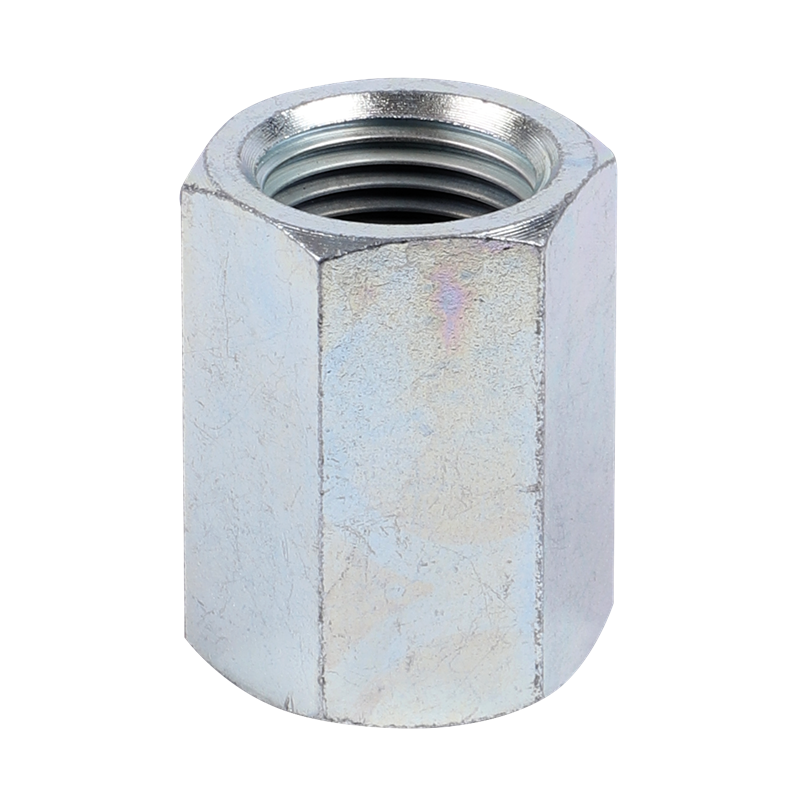

Walraven Hexagon Stud Connector Fe/Fe zp 38mm G1/2"/M8
adjustment of thread connection
Features
- easy installation, even with a hexagon nut, which is fully covered by the adaptor
- the smart design prevents conflicts between threaded rod and 1/2” threaded tube
- time reduced installation in combination with 1/2” threaded tubes and clamps
- max. tightening torque defined by the used anchoring product
- material: steel
- zinc plated
Specifications
Identification
| Product Number | 64599838 |
|---|
Product Dimensions
| Thread Size A Ref. letter: TSA | G½” |
|---|---|
| Thread Length A (mm) Ref. letter: TLA | 13 |
| Thread Size B Ref. letter: TSB | M8 |
| Thread Length B (mm) Ref. letter: TLB | 8 |
| Width Across Flats (mm) Ref. letter: WAF | 27 |
| Total Height (mm) Ref. letter: H | 27 |
| Total Width (mm) Ref. letter: W | 31 |
| Total Length (mm) Ref. letter: L | 38 |
Technical characteristics
| Thread Gender A Ref. letter: TGA | Female thread |
|---|---|
| Thread Gender B Ref. letter: TGB | Female thread |
| Colour | Zinc |
| Layer Thickness Surface Protection (µm) | 5 |
| Material | Steel |
| Material Quality | St. 1.0715 |
| Shape | Hexagon |
| Surface Protection | Zinc Plated |
| Surface Treatment | Untreated |
| Thread Type A Ref. letter: TTA | Inch |
| Thread Type B Ref. letter: TTB | Metric |
| Through Going Thread? | No |
| With Inspection Holes? | No |
Safeloading
| Maximum Allowed Load Faz (N) Ref. letter: Fa,z | 5600 |
|---|
Weights
| Weight [g] (g) | 110 |
|---|---|
| Weight [kg] (kg) | 0.11 |
Packaging information
| Pack 1 Shape | Cardboard Box |
|---|---|
| Pack 1 Qty | 25 |
| Pack 1 Height (mm) | 84 |
| Pack 1 Width (mm) | 100 |
| Pack 1 Length (mm) | 130 |
| Pack 1 Weight (g) | 2800 |
| Pack 2 Shape | Cardboard Box |
| Pack 2 Qty | 200 |
| Pack 2 Height (mm) | 160 |
| Pack 2 Width (mm) | 182 |
| Pack 2 Length (mm) | 395 |
| Pack 2 Weight (g) | 22500 |
