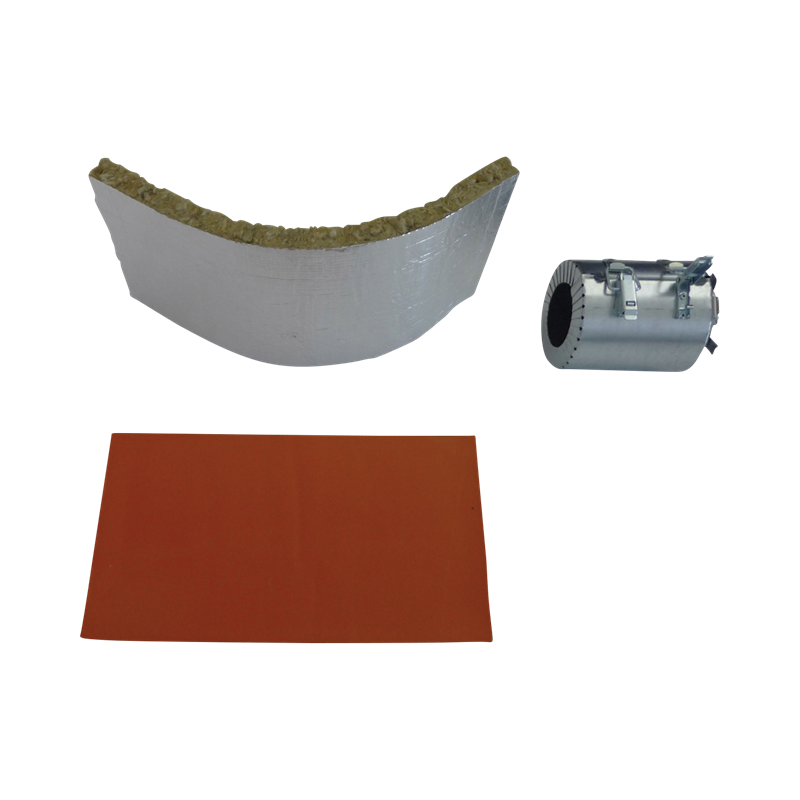

Walraven Pacifyre® SML-MI Set DN50

Features

• For sealing cast iron pipes in R90 quality according to DIN 4102-11 only in solid ceilings with fire protection requirements according to MBO or MLAR/LAR/RbALi and R90 pipe seals in F90 components
• Zero distance to seals with Pacifyre® IWM III fire protection bandage, Pacifyre® EFC fire protection sleeve and Pacifyre® M pipe jacketing as well as to metal pipes with rock wool (≥80 kg/m³)(Type RS 800)
• No additional shafts necessary in basement rooms
• Easy processing and high flexibility thanks to self-adhesive mat
• Multiplecable seals can be installed with a distance of just 50 mm
• Transition from cast to plastic pipe possible directly after the branch
• Transition to plastic pipe up to max. 110 mm
• Molded parts and connectors in the component are permitted, but must be wrapped
• Possible branches 45° or 88° degrees
• Dimensions of fire protection mat: H 245 x W 460 x 3 mm
• Dimensions of insulating mat: H 250 x W 620 x 30 mm
• Sound insulation test certificate (P-BA 108/2008) from IBP (Fraunhofer Inst.)
• General type approval (aBG) Z-19.53-2388 from the German Institute for Building Technology (DIBt)
• Approved by the German Institute for Construction Technology (DIBt) according to Z-19.17-2114 and is externally monitored by an MPA
• Approved by the German Institute for Construction Technology (DIBt) according to Z-19.17-2114 and is externally monitored by an MPA
