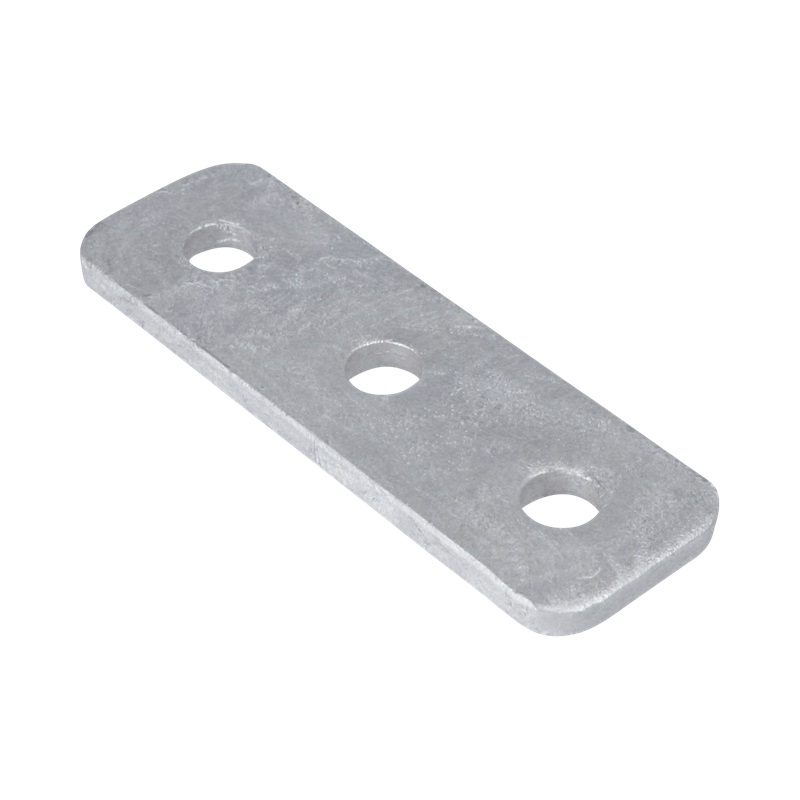

Walraven Strut Connector rectangular hdg 3x13 123x40x6

to make Strut rail fabrications

66580312

Consent

Features

  • flat connector
  • to make fabrication with Walraven RapidStrut® Rail
  • material: steel 1.0332
  • hot dip galvanized
Walraven Strut Connector rectangular hdg 3x13 123x40x6
Walraven Strut Connector rectangular hdg 3x13 123x40x6
Walraven Strut Connector rectangular hdg 3x13 123x40x6
Walraven Strut Connector rectangular hdg 3x13 123x40x6

Specifications

Walraven Rectangular Connector (HDG)

Identification
Identification
Product Number 66580312

Product Dimensions
Product Dimensions
Height (mm) Ref. letter: h 6
Length (mm) Ref. letter: l 123
Material Thickness (mm) Ref. letter: MT 6
Heart To Heart Distance (mm) Ref. letter: k 41
Total Height (mm) Ref. letter: H 6
Total Width (mm) Ref. letter: W 40
Total Length (mm) Ref. letter: L 123

Technical characteristics
Technical characteristics
For Rail Type 41x21, 41x41, 41x51, 41x62, 41x82
Torque Moment For Installation (Nm) Ref. letter: Tinst 40
Material Steel
Material Quality St. 1.0332
Model Flat coupler
Suitable for C-Profile
Surface Protection Hot Dip Galvanized
Surface Treatment Untreated

Approvals & Declarations
Approvals & Declarations
KOT (National Technical Assessment, ITB) No

Weights
Weights
Weight [g] (g) 212
Weight [kg] (kg) 0.21

Packaging information
Packaging information
Pack 1 Shape Cardboard Box
Pack 1 Qty 50
Pack 1 Height (mm) 158
Pack 1 Width (mm) 128
Pack 1 Length (mm) 195
Pack 1 Weight (g) 10675
Pack 2 Shape Pallet ISO 0-1/1
Pack 2 Qty 9000
Pack 2 Height (mm) 934
Pack 2 Width (mm) 1200
Pack 2 Length (mm) 800
Pack 2 Weight (g) 1942500
Pack 3 Shape No Pack Type Available

Downloads & certificates

H2885 Walraven Rectangular Connector (HDG) PDF | EN | Product info sheet Download
