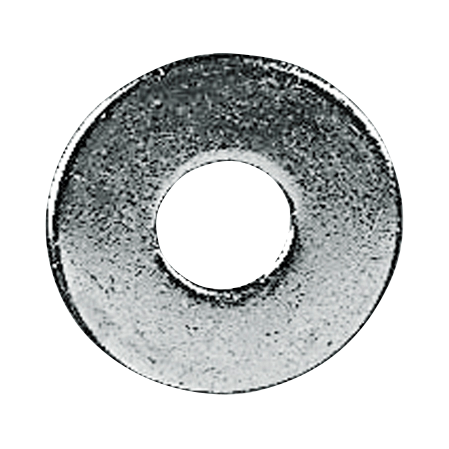

Walraven Washer SSt DIN9021 M12
fixing to Walraven RapidRail®
Features
- material: stainless steel 1.4301 (AISI 304)
Specifications
Identification
| Product Number | 6537612 |
|---|
Product Dimensions
| Total Height (mm) Ref. letter: H | 2.5 |
|---|---|
| Total Width (mm) Ref. letter: W | 36 |
| Total Length (mm) Ref. letter: L | 36 |
| Inner Diameter (mm) Ref. letter: ID | 12.5 |
| Outer Diameter (mm) Ref. letter: OD | 36 |
| Material Thickness (mm) Ref. letter: MT | 2.5 |
Technical characteristics
| Material | Stainless Steel |
|---|---|
| Material Quality | 1.4301 (AISI 304) |
| Surface Protection | Untreated |
| Surface Treatment | Untreated |
Approvals & Declarations
| CE mark | No |
|---|---|
| EN 1363-1 test report | No |
| European Technical Assessment (ETA) | No |
Weights
| Weight [g] (g) | 20.5 |
|---|---|
| Weight [kg] (kg) | 0.02 |
Packaging information
| Pack 1 Shape | Cardboard Box |
|---|---|
| Pack 1 Qty | 100 |
| Pack 1 Height (mm) | 79 |
| Pack 1 Width (mm) | 73 |
| Pack 1 Length (mm) | 124 |
| Pack 1 Weight (g) | 2080 |
| Pack 2 Shape | Cardboard Box |
| Pack 2 Qty | 2000 |
| Pack 2 Height (mm) | 175 |
| Pack 2 Width (mm) | 270 |
| Pack 2 Length (mm) | 395 |
| Pack 2 Weight (g) | 41900 |
| Pack 3 Shape | No Pack Type Available |
