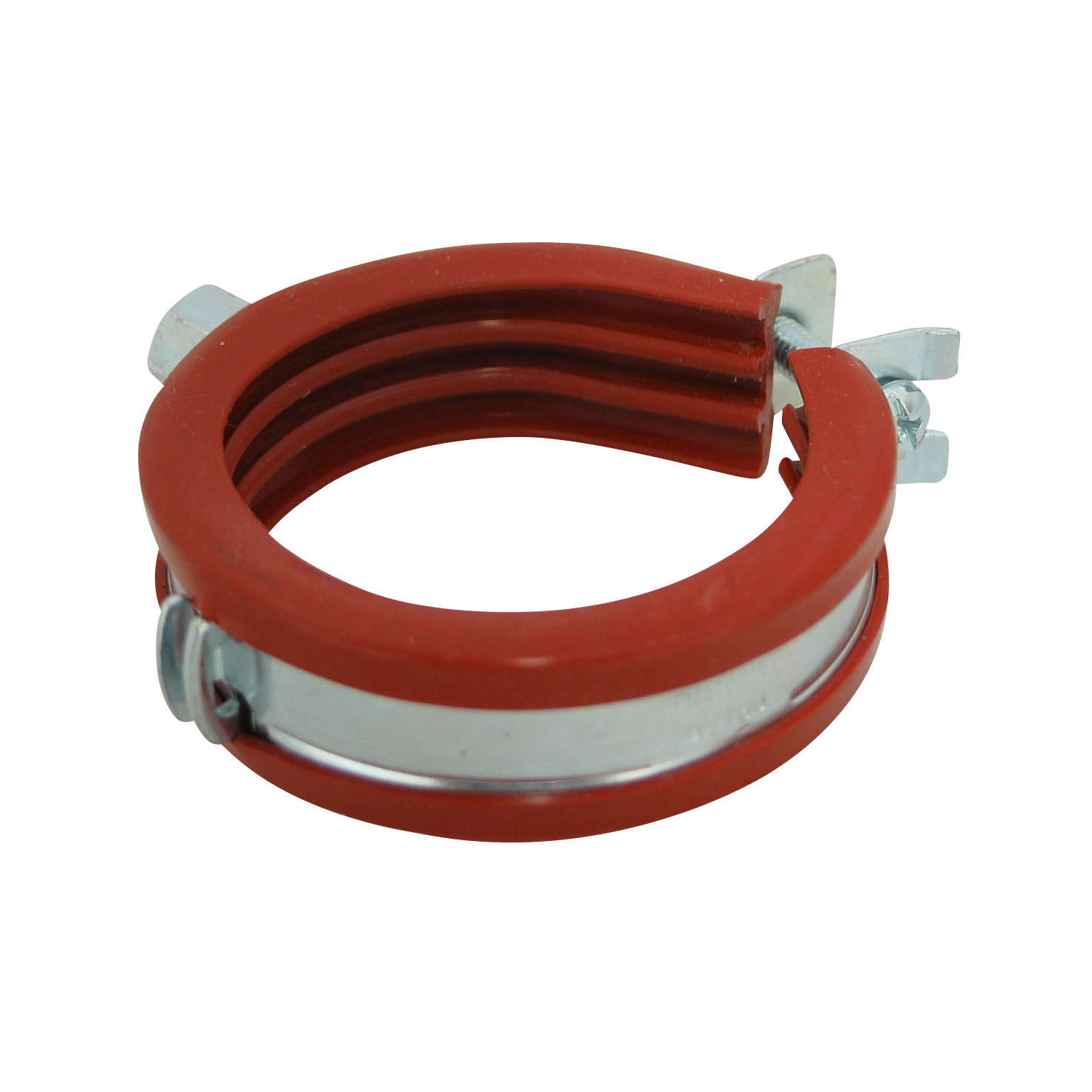

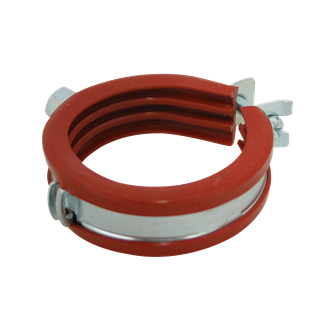

Featured & benefits
- single screw clamp
- with Walraven BISMAT® quick locking system
- clamp easy to close with one hand
- material: steel
- zinc plated
- sound insulating lining according DIN 4109
- tested for fire safety
- heat resistant up to 210°C
| Part No. | Outside Pipe Diameter | DN | Pipe Diameter Imperial | Connection Thread | Material Width | Material Thickness | Screw Size | Total Height | Total Width | Total Depth | Approvals | Maximum Allowed Load Faz | Pack 1 Shape | Pack 1 QTY | Pack 2 Shape | Pack 2 Qty | Pageidavimų sąrašas |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ref. letter | D | D | D | G | MW | MT | ds | H | W | DtT | Fa,z | ||||||
| Unit desc. | (mm) | (in) | (mm) | (mm) | (mm) | (mm) | (mm) | (N) | |||||||||
| Part No.3404018 | Outside Pipe DiameterD (mm) 15-18 | DND DN 10 | Pipe Diameter ImperialD (in) ⅜ | Connection ThreadG M8/M10 | Material WidthMW (mm) 20 | Material ThicknessMT (mm) 1 | Screw Sizeds M6 | Total HeightH (mm) 44 | Total WidthW (mm) 48 | Total DepthDtT (mm) 20 | Approvals RAL-GZ 656 | Maximum Allowed Load FazFa,z (N) 600 | Pack 1 Shape Cardboard Box | Pack 1 QTY 50 | Pack 2 Shape Pallet ISO 1 | Pack 2 Qty 10800 | Pageidavimų sąrašas |
| Part No.3404023 | Outside Pipe DiameterD (mm) 20-23 | DND DN 15 | Pipe Diameter ImperialD (in) ½ | Connection ThreadG M8/M10 | Material WidthMW (mm) 20 | Material ThicknessMT (mm) 1 | Screw Sizeds M6 | Total HeightH (mm) 47 | Total WidthW (mm) 55 | Total DepthDtT (mm) 20 | Approvals RAL-GZ 656 | Maximum Allowed Load FazFa,z (N) 600 | Pack 1 Shape Cardboard Box | Pack 1 QTY 50 | Pack 2 Shape Pallet ISO 1 | Pack 2 Qty 7200 | Pageidavimų sąrašas |
| Part No.3404028 | Outside Pipe DiameterD (mm) 25-28 | DND DN 20 | Pipe Diameter ImperialD (in) ¾ | Connection ThreadG M8/M10 | Material WidthMW (mm) 20 | Material ThicknessMT (mm) 1 | Screw Sizeds M6 | Total HeightH (mm) 52 | Total WidthW (mm) 60 | Total DepthDtT (mm) 20 | Approvals RAL-GZ 656 | Maximum Allowed Load FazFa,z (N) 600 | Pack 1 Shape Cardboard Box | Pack 1 QTY 50 | Pack 2 Shape Pallet ISO 1 | Pack 2 Qty 7200 | Pageidavimų sąrašas |
| Part No.3404035 | Outside Pipe DiameterD (mm) 31-35 | DND DN 25 | Pipe Diameter ImperialD (in) 1 | Connection ThreadG M8/M10 | Material WidthMW (mm) 20 | Material ThicknessMT (mm) 1 | Screw Sizeds M6 | Total HeightH (mm) 63 | Total WidthW (mm) 64 | Total DepthDtT (mm) 20 | Approvals RAL-GZ 656 | Maximum Allowed Load FazFa,z (N) 600 | Pack 1 Shape Cardboard Box | Pack 1 QTY 50 | Pack 2 Shape Pallet ISO 1 | Pack 2 Qty 6300 | Pageidavimų sąrašas |
| Part No.3404043 | Outside Pipe DiameterD (mm) 40-43 | DND DN 32 | Pipe Diameter ImperialD (in) 1¼ | Connection ThreadG M8/M10 | Material WidthMW (mm) 20 | Material ThicknessMT (mm) 1,25 | Screw Sizeds M6 | Total HeightH (mm) 68 | Total WidthW (mm) 75 | Total DepthDtT (mm) 20 | Approvals RAL-GZ 656 | Maximum Allowed Load FazFa,z (N) 800 | Pack 1 Shape Cardboard Box | Pack 1 QTY 50 | Pack 2 Shape Pallet ISO 1 | Pack 2 Qty 4500 | Pageidavimų sąrašas |
| Part No.3404053 | Outside Pipe DiameterD (mm) 48-52 | DND DN 40 | Pipe Diameter ImperialD (in) 1½ | Connection ThreadG M8/M10 | Material WidthMW (mm) 20 | Material ThicknessMT (mm) 1,25 | Screw Sizeds M6 | Total HeightH (mm) 74 | Total WidthW (mm) 85 | Total DepthDtT (mm) 20 | Approvals RAL-GZ 656 | Maximum Allowed Load FazFa,z (N) 800 | Pack 1 Shape Cardboard Box | Pack 1 QTY 50 | Pack 2 Shape Pallet ISO 1 | Pack 2 Qty 4500 | Pageidavimų sąrašas |
| Part No.3404063 | Outside Pipe DiameterD (mm) 57-63 | DND DN 50 | Pipe Diameter ImperialD (in) 2 | Connection ThreadG M8/M10 | Material WidthMW (mm) 20 | Material ThicknessMT (mm) 1,25 | Screw Sizeds M6 | Total HeightH (mm) 86 | Total WidthW (mm) 94 | Total DepthDtT (mm) 20 | Approvals RAL-GZ 656 | Maximum Allowed Load FazFa,z (N) 800 | Pack 1 Shape Cardboard Box | Pack 1 QTY 50 | Pack 2 Shape Pallet ISO 1 | Pack 2 Qty 3600 | Pageidavimų sąrašas |
