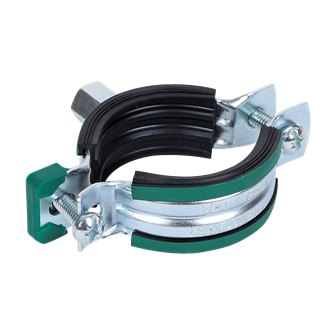

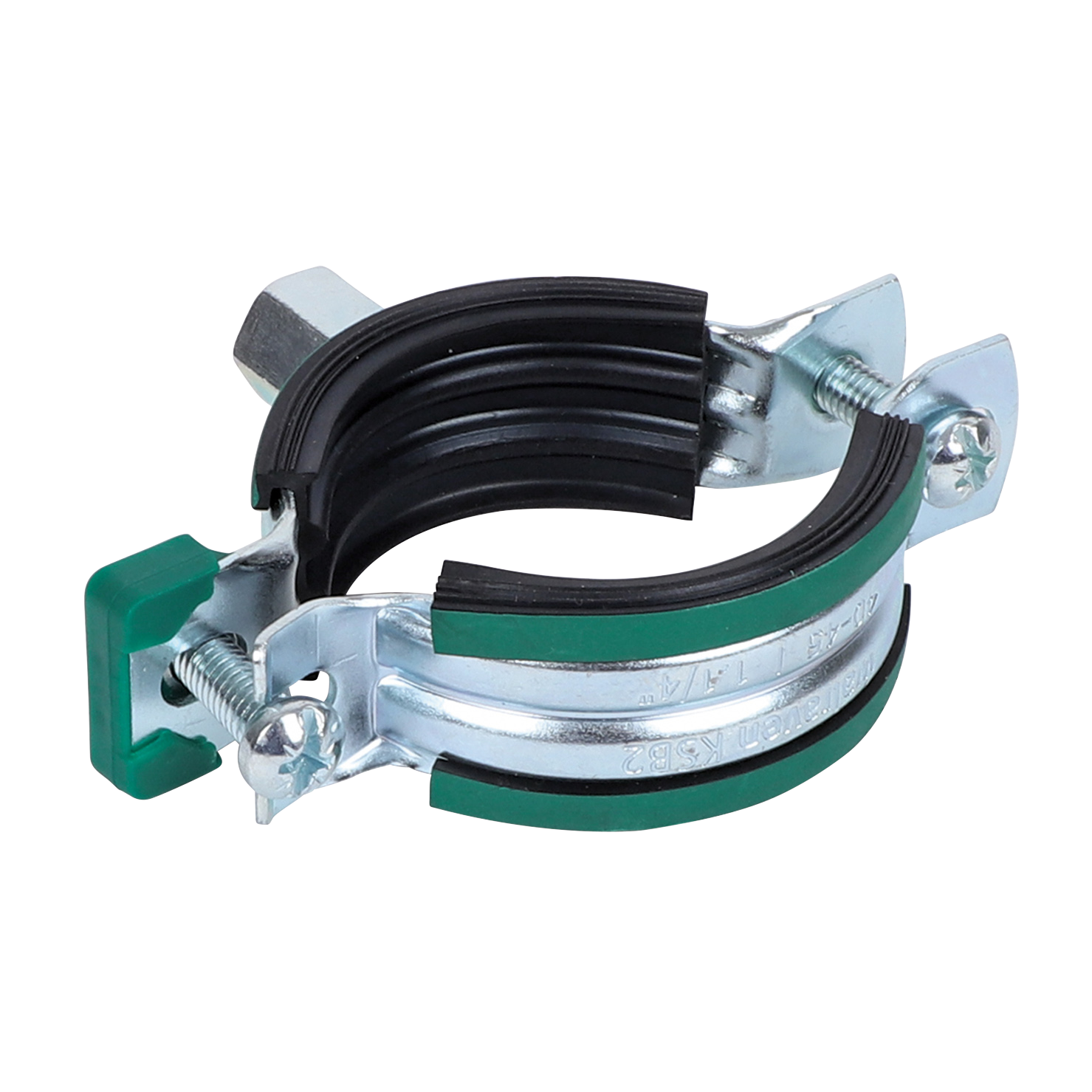

Walraven KSB2 Clamp (M8/M10)
Walraven KSB2 Clamp (M8/M10)

Walraven KSB2 Clamp (M8/M10)

for steel, copper, cast iron and plastic (multilayer) pipe

Featured & benefits

  • two-screw clamp
  • quick closing mechanism for easy locking of the clamp with one hand
  • full range from 10 to 225 mm
  • material: steel
  • zinc plated
  • temperature resistance from -30 °C to +120 °C
  • sound insulating lining according DIN 4109
  • noise reduction according to ISO 3822-1 up to 23 dB(A)
  • CE
  • ETA
  • ITB (KOT)
  • RAL-GZ 655/B
Klauskite

Specifications and packaging

Part No. Outside Pipe DiameterDNPipe Diameter ImperialConnection ThreadTotal HeightTotal WidthTotal DepthMaterial WidthMaterial ThicknessScrew SizeMaximum Allowed Load FazPack 1 ShapePack 1 QTYPack 2 ShapePack 2 Qty Pageidavimų
sąrašas
Ref. letter DDDGHWDtTMWMTdsFa,z
Unit desc. (mm)(in)(mm)(mm)(mm)(mm)(mm)(N)
Part No.3396014
Outside Pipe DiameterD (mm)
10-14
DND
DN 8
Pipe Diameter ImperialD (in)
¼
Connection ThreadG
M8/M10
Total HeightH (mm)
42
Total WidthW (mm)
59
Total DepthDtT (mm)
25
Material WidthMW (mm)
20
Material ThicknessMT (mm)
1,25
Screw Sizeds
M6
Maximum Allowed Load FazFa,z (N)
495
Pack 1 Shape
Cardboard Box
Pack 1 QTY
100
Pack 2 Shape
Pallet ISO 1
Pack 2 Qty
9000		Pageidavimų sąrašas
Part No.3396019
Outside Pipe DiameterD (mm)
15-19
DND
DN 10
Pipe Diameter ImperialD (in)
⅜
Connection ThreadG
M8/M10
Total HeightH (mm)
46
Total WidthW (mm)
63
Total DepthDtT (mm)
25
Material WidthMW (mm)
20
Material ThicknessMT (mm)
1,25
Screw Sizeds
M6
Maximum Allowed Load FazFa,z (N)
495
Pack 1 Shape
Cardboard Box
Pack 1 QTY
100
Pack 2 Shape
Pallet ISO 1
Pack 2 Qty
9000		Pageidavimų sąrašas
Part No.3396023
Outside Pipe DiameterD (mm)
20-23
DND
DN 15
Pipe Diameter ImperialD (in)
½
Connection ThreadG
M8/M10
Total HeightH (mm)
51
Total WidthW (mm)
68
Total DepthDtT (mm)
25
Material WidthMW (mm)
20
Material ThicknessMT (mm)
1,25
Screw Sizeds
M6
Maximum Allowed Load FazFa,z (N)
495
Pack 1 Shape
Cardboard Box
Pack 1 QTY
100
Pack 2 Shape
Pallet ISO 1
Pack 2 Qty
12600		Pageidavimų sąrašas
Part No.3396028
Outside Pipe DiameterD (mm)
25-28
DND
DN 20
Pipe Diameter ImperialD (in)
¾
Connection ThreadG
M8/M10
Total HeightH (mm)
57
Total WidthW (mm)
74
Total DepthDtT (mm)
25
Material WidthMW (mm)
20
Material ThicknessMT (mm)
1,25
Screw Sizeds
M6
Maximum Allowed Load FazFa,z (N)
495
Pack 1 Shape
Cardboard Box
Pack 1 QTY
100
Pack 2 Shape
Pallet ISO 1
Pack 2 Qty
9000		Pageidavimų sąrašas
Part No.3396035
Outside Pipe DiameterD (mm)
31-35
DND
DN 25
Pipe Diameter ImperialD (in)
1
Connection ThreadG
M8/M10
Total HeightH (mm)
63
Total WidthW (mm)
80
Total DepthDtT (mm)
25
Material WidthMW (mm)
20
Material ThicknessMT (mm)
1,25
Screw Sizeds
M6
Maximum Allowed Load FazFa,z (N)
495
Pack 1 Shape
Cardboard Box
Pack 1 QTY
100
Pack 2 Shape
Pallet ISO 1
Pack 2 Qty
9000		Pageidavimų sąrašas
Part No.3396039
Outside Pipe DiameterD (mm)
36-39
DND
-
Pipe Diameter ImperialD (in)
-
Connection ThreadG
M8/M10
Total HeightH (mm)
67
Total WidthW (mm)
84
Total DepthDtT (mm)
25
Material WidthMW (mm)
20
Material ThicknessMT (mm)
1,25
Screw Sizeds
M6
Maximum Allowed Load FazFa,z (N)
495
Pack 1 Shape
Cardboard Box
Pack 1 QTY
100
Pack 2 Shape
Pallet ISO 1
Pack 2 Qty
6300		Pageidavimų sąrašas
Part No.3396045
Outside Pipe DiameterD (mm)
40-45
DND
DN 32
Pipe Diameter ImperialD (in)
1¼
Connection ThreadG
M8/M10
Total HeightH (mm)
74
Total WidthW (mm)
91
Total DepthDtT (mm)
25
Material WidthMW (mm)
20
Material ThicknessMT (mm)
1,25
Screw Sizeds
M6
Maximum Allowed Load FazFa,z (N)
495
Pack 1 Shape
Cardboard Box
Pack 1 QTY
100
Pack 2 Shape
Pallet ISO 1
Pack 2 Qty
4500		Pageidavimų sąrašas
Part No.3396052
Outside Pipe DiameterD (mm)
48-52
DND
DN 40
Pipe Diameter ImperialD (in)
1½
Connection ThreadG
M8/M10
Total HeightH (mm)
80
Total WidthW (mm)
97
Total DepthDtT (mm)
25
Material WidthMW (mm)
20
Material ThicknessMT (mm)
1,25
Screw Sizeds
M6
Maximum Allowed Load FazFa,z (N)
495
Pack 1 Shape
Cardboard Box
Pack 1 QTY
50
Pack 2 Shape
Pallet ISO 1
Pack 2 Qty
5400		Pageidavimų sąrašas
Part No.3396058
Outside Pipe DiameterD (mm)
54-58
DND
-
Pipe Diameter ImperialD (in)
-
Connection ThreadG
M8/M10
Total HeightH (mm)
87
Total WidthW (mm)
104
Total DepthDtT (mm)
25
Material WidthMW (mm)
20
Material ThicknessMT (mm)
1,25
Screw Sizeds
M6
Maximum Allowed Load FazFa,z (N)
495
Pack 1 Shape
Cardboard Box
Pack 1 QTY
50
Pack 2 Shape
Pallet ISO 1
Pack 2 Qty
4500		Pageidavimų sąrašas
Part No.3396064
Outside Pipe DiameterD (mm)
60-64
DND
DN 50
Pipe Diameter ImperialD (in)
2
Connection ThreadG
M8/M10
Total HeightH (mm)
92
Total WidthW (mm)
109
Total DepthDtT (mm)
25
Material WidthMW (mm)
20
Material ThicknessMT (mm)
1,25
Screw Sizeds
M6
Maximum Allowed Load FazFa,z (N)
495
Pack 1 Shape
Cardboard Box
Pack 1 QTY
50
Pack 2 Shape
Pallet ISO 1
Pack 2 Qty
3150		Pageidavimų sąrašas
Part No.3396070
Outside Pipe DiameterD (mm)
66-70
DND
-
Pipe Diameter ImperialD (in)
-
Connection ThreadG
M8/M10
Total HeightH (mm)
100
Total WidthW (mm)
118
Total DepthDtT (mm)
25
Material WidthMW (mm)
20
Material ThicknessMT (mm)
1,5
Screw Sizeds
M6
Maximum Allowed Load FazFa,z (N)
560
Pack 1 Shape
Cardboard Box
Pack 1 QTY
50
Pack 2 Shape
Pallet ISO 1
Pack 2 Qty
2250		Pageidavimų sąrašas
Part No.3396079
Outside Pipe DiameterD (mm)
75-79
DND
DN 65
Pipe Diameter ImperialD (in)
2½
Connection ThreadG
M8/M10
Total HeightH (mm)
108
Total WidthW (mm)
125
Total DepthDtT (mm)
25
Material WidthMW (mm)
20
Material ThicknessMT (mm)
1,5
Screw Sizeds
M6
Maximum Allowed Load FazFa,z (N)
560
Pack 1 Shape
Cardboard Box
Pack 1 QTY
50
Pack 2 Shape
Pallet ISO 1
Pack 2 Qty
3150		Pageidavimų sąrašas
Part No.3396083
Outside Pipe DiameterD (mm)
80-83
DND
-
Pipe Diameter ImperialD (in)
-
Connection ThreadG
M8/M10
Total HeightH (mm)
114
Total WidthW (mm)
132
Total DepthDtT (mm)
25
Material WidthMW (mm)
20
Material ThicknessMT (mm)
1,5
Screw Sizeds
M6
Maximum Allowed Load FazFa,z (N)
560
Pack 1 Shape
Cardboard Box
Pack 1 QTY
50
Pack 2 Shape
Pallet ISO 1
Pack 2 Qty
2250		Pageidavimų sąrašas
Part No.3396091
Outside Pipe DiameterD (mm)
88-91
DND
DN 80
Pipe Diameter ImperialD (in)
3
Connection ThreadG
M8/M10
Total HeightH (mm)
123
Total WidthW (mm)
142
Total DepthDtT (mm)
28
Material WidthMW (mm)
23
Material ThicknessMT (mm)
2
Screw Sizeds
M6
Maximum Allowed Load FazFa,z (N)
1055
Pack 1 Shape
Cardboard Box
Pack 1 QTY
50
Pack 2 Shape
Pallet ISO 1
Pack 2 Qty
1800		Pageidavimų sąrašas
Part No.3396105
Outside Pipe DiameterD (mm)
100-105
DND
-
Pipe Diameter ImperialD (in)
-
Connection ThreadG
M8/M10
Total HeightH (mm)
137
Total WidthW (mm)
155
Total DepthDtT (mm)
28
Material WidthMW (mm)
23
Material ThicknessMT (mm)
2
Screw Sizeds
M6
Maximum Allowed Load FazFa,z (N)
1055
Pack 1 Shape
Cardboard Box
Pack 1 QTY
50
Pack 2 Shape
Pallet ISO 1
Pack 2 Qty
1350		Pageidavimų sąrašas
Part No.3396115
Outside Pipe DiameterD (mm)
108-115
DND
DN 100
Pipe Diameter ImperialD (in)
4
Connection ThreadG
M8/M10
Total HeightH (mm)
145
Total WidthW (mm)
164
Total DepthDtT (mm)
28
Material WidthMW (mm)
23
Material ThicknessMT (mm)
2
Screw Sizeds
M6
Maximum Allowed Load FazFa,z (N)
1055
Pack 1 Shape
Cardboard Box
Pack 1 QTY
25
Pack 2 Shape
Pallet ISO 1
Pack 2 Qty
1125		Pageidavimų sąrašas
Part No.3396130
Outside Pipe DiameterD (mm)
125-130
DND
-
Pipe Diameter ImperialD (in)
-
Connection ThreadG
M8/M10
Total HeightH (mm)
162
Total WidthW (mm)
181
Total DepthDtT (mm)
28
Material WidthMW (mm)
23
Material ThicknessMT (mm)
2
Screw Sizeds
M6
Maximum Allowed Load FazFa,z (N)
1055
Pack 1 Shape
Cardboard Box
Pack 1 QTY
25
Pack 2 Shape
Pallet ISO 1
Pack 2 Qty
900		Pageidavimų sąrašas
Part No.3396140
Outside Pipe DiameterD (mm)
133-140
DND
DN 125
Pipe Diameter ImperialD (in)
5
Connection ThreadG
M8/M10
Total HeightH (mm)
171
Total WidthW (mm)
189
Total DepthDtT (mm)
28
Material WidthMW (mm)
23
Material ThicknessMT (mm)
2
Screw Sizeds
M6
Maximum Allowed Load FazFa,z (N)
1055
Pack 1 Shape
Cardboard Box
Pack 1 QTY
25
Pack 2 Shape
Pallet ISO 1
Pack 2 Qty
900		Pageidavimų sąrašas
Part No.3396160
Outside Pipe DiameterD (mm)
152-160
DND
-
Pipe Diameter ImperialD (in)
-
Connection ThreadG
M8/M10
Total HeightH (mm)
190
Total WidthW (mm)
209
Total DepthDtT (mm)
28
Material WidthMW (mm)
23
Material ThicknessMT (mm)
2
Screw Sizeds
M6
Maximum Allowed Load FazFa,z (N)
1055
Pack 1 Shape
Cardboard Box
Pack 1 QTY
25
Pack 2 Shape
Pallet ISO 1
Pack 2 Qty
900		Pageidavimų sąrašas
Part No.3396169
Outside Pipe DiameterD (mm)
165-169
DND
DN 150
Pipe Diameter ImperialD (in)
6
Connection ThreadG
M8/M10
Total HeightH (mm)
203
Total WidthW (mm)
225
Total DepthDtT (mm)
29
Material WidthMW (mm)
25
Material ThicknessMT (mm)
2,5
Screw Sizeds
M8
Maximum Allowed Load FazFa,z (N)
2250
Pack 1 Shape
Cardboard Box
Pack 1 QTY
20
Pack 2 Shape
Pallet ISO 1
Pack 2 Qty
720		Pageidavimų sąrašas
Part No.3396180
Outside Pipe DiameterD (mm)
176-180
DND
-
Pipe Diameter ImperialD (in)
-
Connection ThreadG
M8/M10
Total HeightH (mm)
216
Total WidthW (mm)
238
Total DepthDtT (mm)
29
Material WidthMW (mm)
25
Material ThicknessMT (mm)
2,5
Screw Sizeds
M8
Maximum Allowed Load FazFa,z (N)
2250
Pack 1 Shape
Cardboard Box
Pack 1 QTY
15
Pack 2 Shape
Pallet ISO 1
Pack 2 Qty
405		Pageidavimų sąrašas
Part No.3396200
Outside Pipe DiameterD (mm)
192-200
DND
-
Pipe Diameter ImperialD (in)
-
Connection ThreadG
M8/M10
Total HeightH (mm)
235
Total WidthW (mm)
257
Total DepthDtT (mm)
29
Material WidthMW (mm)
25
Material ThicknessMT (mm)
2,5
Screw Sizeds
M8
Maximum Allowed Load FazFa,z (N)
2250
Pack 1 Shape
Cardboard Box
Pack 1 QTY
15
Pack 2 Shape
Pallet ISO 1
Pack 2 Qty
405		Pageidavimų sąrašas
Part No.3396210
Outside Pipe DiameterD (mm)
205-210
DND
-
Pipe Diameter ImperialD (in)
-
Connection ThreadG
M8/M10
Total HeightH (mm)
247
Total WidthW (mm)
269
Total DepthDtT (mm)
29
Material WidthMW (mm)
25
Material ThicknessMT (mm)
2,5
Screw Sizeds
M8
Maximum Allowed Load FazFa,z (N)
2250
Pack 1 Shape
Cardboard Box
Pack 1 QTY
10
Pack 2 Shape
Pallet ISO 1
Pack 2 Qty
270		Pageidavimų sąrašas
Part No.3396225
Outside Pipe DiameterD (mm)
219-225
DND
DN 200
Pipe Diameter ImperialD (in)
8
Connection ThreadG
M8/M10
Total HeightH (mm)
261
Total WidthW (mm)
283
Total DepthDtT (mm)
29
Material WidthMW (mm)
25
Material ThicknessMT (mm)
2,5
Screw Sizeds
M8
Maximum Allowed Load FazFa,z (N)
2250
Pack 1 Shape
Cardboard Box
Pack 1 QTY
10
Pack 2 Shape
Pallet ISO 1
Pack 2 Qty
270		Pageidavimų sąrašas

Downloads

Certificates

Let's get in touch

+37 061 651 341
Find a contact
Klauskite
Pageidavimų sąrašas 0
See product wish list
To top
Close

Europe

Asia

South East Asia & Pacific

North America

India, Middle East and Africa

Or visit our international website.

Cookie settings

Walraven uses cookies and similar technologies. We use functional cookies to make sure our websites work well and secure and analytical cookies to offer you the best possible user experience. Marketing / Advertising cookies are placed by third parties (for example social media) to show you personalised advertisements instead of generic ones. By placing these cookies, third parties can track your internet behaviour so they can give you more relevant advertisements. By clicking on ’Agree to all cookies’, you consent to the placing of these cookies. Click on the button ’Settings’ to change your preferences.

Cookie settings

Walraven uses cookies and similar technologies. We use functional cookies to make sure our websites work well and secure and analytical cookies to offer you the best possible user experience. Marketing / Advertising cookies are placed by third parties (for example social media) to show you personalised advertisements instead of generic ones. By placing these cookies, third parties can track your internet behaviour so they can give you more relevant advertisements.

    • Make sure you can view the Walraven website
    • And use our website in a proper way
    • Help us improve all our websites
    • Collect anonymous information about how visitors use our websites
    • Also collect information about the most visited pages
    • Tell us how many error messages were displayed
    • Are placed, based on how you click and visit our websites
    • Will show you relevant offers
    • Will also show you personalised advertisements

For more information about cookies, please read our cookie policy.
