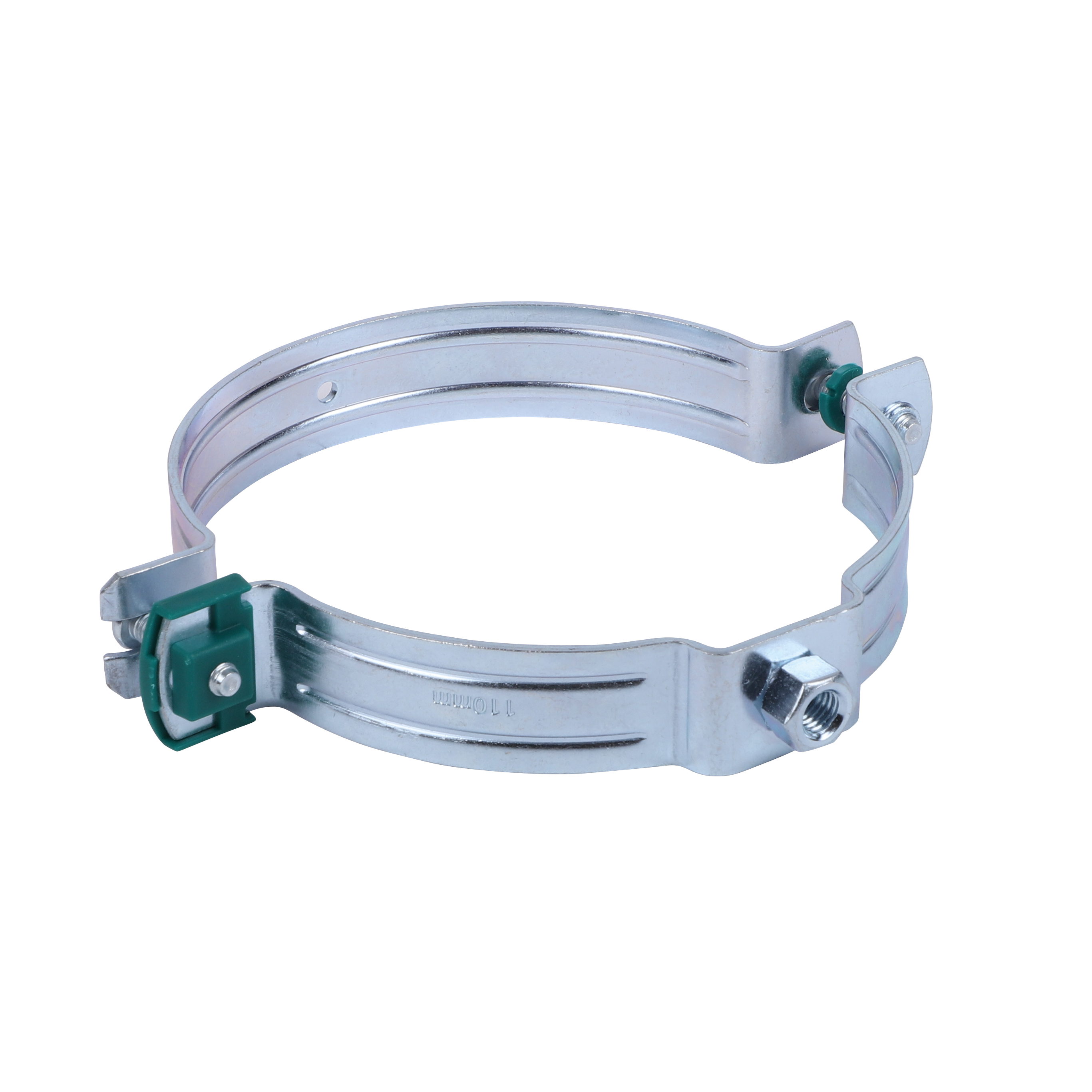

Walraven Pipe Clamp 4000 (M8) (ZP)
Walraven Pipe Clamp 4000 (M8) (ZP)

Walraven Pipe Clamp 4000 (M8) (ZP)

for plastic pipes

Featured & benefits

  • two-screw clamp
  • with quick locking system; will not open during installation
  • with removable spacer washers, making the clamp suitable for either sliding or anchoring
  • inside clamp diameter larger than outside pipe diameter for expansion or contraction of the pipe
  • inside profile to protect pipes from damage
  • material: steel 1.0332
  • zinc plated
Klauskite

Specifications and packaging

Part No. Outside Pipe DiameterDNConnection ThreadTotal HeightTotal WidthTotal DepthMaterial WidthMaterial ThicknessScrew SizeMaximum Allowed Load FazPack 1 ShapePack 1 QTYPack 2 ShapePack 2 Qty Pageidavimų
sąrašas
Ref. letter DDGHWDtTMWMTdsFa,z
Unit desc. (mm)(mm)(mm)(mm)(mm)(mm)(N)
Part No.4443032
Outside Pipe DiameterD (mm)
32
DND
DN 25
Connection ThreadG
M8
Total HeightH (mm)
54
Total WidthW (mm)
76
Total DepthDtT (mm)
23
Material WidthMW (mm)
20
Material ThicknessMT (mm)
1,5
Screw Sizeds
M6
Maximum Allowed Load FazFa,z (N)
910
Pack 1 Shape
Cardboard Box
Pack 1 QTY
50
Pack 2 Shape
Pallet ISO 1
Pack 2 Qty
6300		Pageidavimų sąrašas
Part No.4443040
Outside Pipe DiameterD (mm)
40
DND
DN 32
Connection ThreadG
M8
Total HeightH (mm)
61
Total WidthW (mm)
84
Total DepthDtT (mm)
23
Material WidthMW (mm)
20
Material ThicknessMT (mm)
1,5
Screw Sizeds
M6
Maximum Allowed Load FazFa,z (N)
910
Pack 1 Shape
Cardboard Box
Pack 1 QTY
50
Pack 2 Shape
Pallet ISO 1
Pack 2 Qty
6300		Pageidavimų sąrašas
Part No.4443050
Outside Pipe DiameterD (mm)
50
DND
DN 40
Connection ThreadG
M8
Total HeightH (mm)
71
Total WidthW (mm)
94
Total DepthDtT (mm)
23
Material WidthMW (mm)
20
Material ThicknessMT (mm)
1,5
Screw Sizeds
M6
Maximum Allowed Load FazFa,z (N)
910
Pack 1 Shape
Cardboard Box
Pack 1 QTY
50
Pack 2 Shape
Pallet ISO 1
Pack 2 Qty
4500		Pageidavimų sąrašas
Part No.4443056
Outside Pipe DiameterD (mm)
56
DND
DN 50
Connection ThreadG
M8
Total HeightH (mm)
77
Total WidthW (mm)
100
Total DepthDtT (mm)
23
Material WidthMW (mm)
20
Material ThicknessMT (mm)
1,5
Screw Sizeds
M6
Maximum Allowed Load FazFa,z (N)
910
Pack 1 Shape
Cardboard Box
Pack 1 QTY
50
Pack 2 Shape
Pallet ISO 1
Pack 2 Qty
4500		Pageidavimų sąrašas
Part No.4443063
Outside Pipe DiameterD (mm)
63
DND
DN 50
Connection ThreadG
M8
Total HeightH (mm)
84
Total WidthW (mm)
107
Total DepthDtT (mm)
23
Material WidthMW (mm)
20
Material ThicknessMT (mm)
1,5
Screw Sizeds
M6
Maximum Allowed Load FazFa,z (N)
910
Pack 1 Shape
Cardboard Box
Pack 1 QTY
50
Pack 2 Shape
Pallet ISO 1
Pack 2 Qty
4500		Pageidavimų sąrašas
Part No.4443070
Outside Pipe DiameterD (mm)
70
DND
DN 65
Connection ThreadG
M8
Total HeightH (mm)
91
Total WidthW (mm)
114
Total DepthDtT (mm)
23
Material WidthMW (mm)
20
Material ThicknessMT (mm)
1,5
Screw Sizeds
M6
Maximum Allowed Load FazFa,z (N)
910
Pack 1 Shape
Cardboard Box
Pack 1 QTY
50
Pack 2 Shape
Pallet ISO 1
Pack 2 Qty
4500		Pageidavimų sąrašas
Part No.4443075
Outside Pipe DiameterD (mm)
75
DND
DN 70
Connection ThreadG
M8
Total HeightH (mm)
96
Total WidthW (mm)
119
Total DepthDtT (mm)
23
Material WidthMW (mm)
20
Material ThicknessMT (mm)
1,5
Screw Sizeds
M6
Maximum Allowed Load FazFa,z (N)
910
Pack 1 Shape
Cardboard Box
Pack 1 QTY
50
Pack 2 Shape
Pallet ISO 1
Pack 2 Qty
3600		Pageidavimų sąrašas
Part No.4443080
Outside Pipe DiameterD (mm)
80
DND
DN 70
Connection ThreadG
M8
Total HeightH (mm)
101
Total WidthW (mm)
124
Total DepthDtT (mm)
23
Material WidthMW (mm)
20
Material ThicknessMT (mm)
1,5
Screw Sizeds
M6
Maximum Allowed Load FazFa,z (N)
910
Pack 1 Shape
Cardboard Box
Pack 1 QTY
50
Pack 2 Shape
Pallet ISO 1
Pack 2 Qty
3600		Pageidavimų sąrašas
Part No.4443090
Outside Pipe DiameterD (mm)
90
DND
DN 80
Connection ThreadG
M8
Total HeightH (mm)
111
Total WidthW (mm)
134
Total DepthDtT (mm)
23
Material WidthMW (mm)
20
Material ThicknessMT (mm)
1,5
Screw Sizeds
M6
Maximum Allowed Load FazFa,z (N)
910
Pack 1 Shape
Cardboard Box
Pack 1 QTY
50
Pack 2 Shape
Pallet ISO 1
Pack 2 Qty
2250		Pageidavimų sąrašas
Part No.4443100
Outside Pipe DiameterD (mm)
100
DND
DN 80
Connection ThreadG
M8
Total HeightH (mm)
121
Total WidthW (mm)
144
Total DepthDtT (mm)
23
Material WidthMW (mm)
20
Material ThicknessMT (mm)
1,5
Screw Sizeds
M6
Maximum Allowed Load FazFa,z (N)
910
Pack 1 Shape
Cardboard Box
Pack 1 QTY
50
Pack 2 Shape
Pallet ISO 1
Pack 2 Qty
2250		Pageidavimų sąrašas
Part No.4443110
Outside Pipe DiameterD (mm)
110
DND
DN 100
Connection ThreadG
M8
Total HeightH (mm)
132
Total WidthW (mm)
158
Total DepthDtT (mm)
26
Material WidthMW (mm)
23
Material ThicknessMT (mm)
2
Screw Sizeds
M6
Maximum Allowed Load FazFa,z (N)
2200
Pack 1 Shape
Cardboard Box
Pack 1 QTY
25
Pack 2 Shape
Pallet ISO 1
Pack 2 Qty
1575		Pageidavimų sąrašas
Part No.4443125
Outside Pipe DiameterD (mm)
125
DND
DN 125
Connection ThreadG
M8
Total HeightH (mm)
148
Total WidthW (mm)
173
Total DepthDtT (mm)
26
Material WidthMW (mm)
23
Material ThicknessMT (mm)
2
Screw Sizeds
M6
Maximum Allowed Load FazFa,z (N)
2200
Pack 1 Shape
Cardboard Box
Pack 1 QTY
25
Pack 2 Shape
Pallet ISO 1
Pack 2 Qty
1125		Pageidavimų sąrašas
Part No.4443160
Outside Pipe DiameterD (mm)
160
DND
DN 150
Connection ThreadG
M8
Total HeightH (mm)
183
Total WidthW (mm)
208
Total DepthDtT (mm)
26
Material WidthMW (mm)
23
Material ThicknessMT (mm)
2
Screw Sizeds
M6
Maximum Allowed Load FazFa,z (N)
2200
Pack 1 Shape
Cardboard Box
Pack 1 QTY
25
Pack 2 Shape
Pallet ISO 1
Pack 2 Qty
900		Pageidavimų sąrašas
Part No.4443200
Outside Pipe DiameterD (mm)
200
DND
DN 200
Connection ThreadG
M8
Total HeightH (mm)
223
Total WidthW (mm)
251
Total DepthDtT (mm)
26
Material WidthMW (mm)
23
Material ThicknessMT (mm)
2
Screw Sizeds
M6
Maximum Allowed Load FazFa,z (N)
2200
Pack 1 Shape
Cardboard Box
Pack 1 QTY
25
Pack 2 Shape
Pallet ISO 1
Pack 2 Qty
675		Pageidavimų sąrašas
