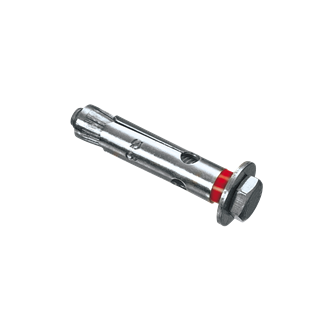

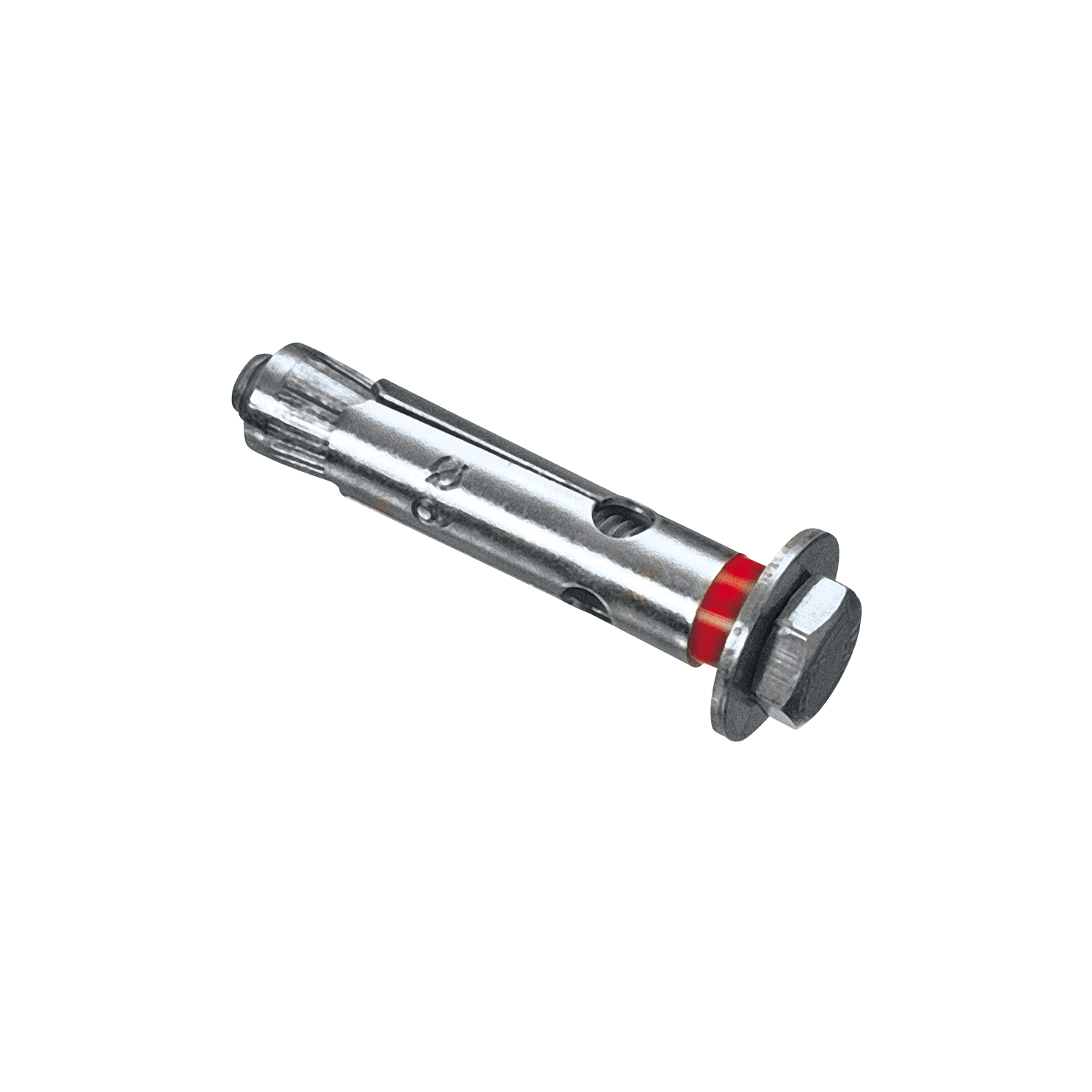

Featured & benefits
- quick and easy installation
- for solid materials
| Part No. | Thread Size | Total Height | Total Width | Total Length | Drill Hole Diameter | Drill Hole Depth | Minimum Substrate Thickness | Standard Embedment Depth | Maximum Fixture Thickness | Pack 1 Shape | Pack 1 QTY | Pack 2 Shape | Pack 2 Qty | Pageidavimų sąrašas |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ref. letter | TS | H | W | L | d0 | h0 | hmin | hnom | tfix,max | |||||
| Unit desc. | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | ||||||
| Part No.609506045 | Thread SizeTS M6 | Total HeightH (mm) 10 | Total WidthW (mm) 10 | Total LengthL (mm) 45 | Drill Hole Diameterd0 (mm) 8 | Drill Hole Depthh0 (mm) 45 | Minimum Substrate Thicknesshmin (mm) 100 | Standard Embedment Depthhnom (mm) 30 | Maximum Fixture Thicknesstfix,max (mm) 5 | Pack 1 Shape Cardboard Box | Pack 1 QTY 100 | Pack 2 Shape Cardboard Box | Pack 2 Qty 500 | Pageidavimų sąrašas |
| Part No.609506060 | Thread SizeTS M6 | Total HeightH (mm) 10 | Total WidthW (mm) 10 | Total LengthL (mm) 60 | Drill Hole Diameterd0 (mm) 8 | Drill Hole Depthh0 (mm) 60 | Minimum Substrate Thicknesshmin (mm) 100 | Standard Embedment Depthhnom (mm) 35 | Maximum Fixture Thicknesstfix,max (mm) 15 | Pack 1 Shape Cardboard Box | Pack 1 QTY 100 | Pack 2 Shape Cardboard Box | Pack 2 Qty 500 | Pageidavimų sąrašas |
| Part No.609508060 | Thread SizeTS M8 | Total HeightH (mm) 12 | Total WidthW (mm) 12 | Total LengthL (mm) 60 | Drill Hole Diameterd0 (mm) 10 | Drill Hole Depthh0 (mm) 60 | Minimum Substrate Thicknesshmin (mm) 100 | Standard Embedment Depthhnom (mm) 40 | Maximum Fixture Thicknesstfix,max (mm) 5 | Pack 1 Shape Cardboard Box | Pack 1 QTY 100 | Pack 2 Shape Cardboard Box | Pack 2 Qty 500 | Pageidavimų sąrašas |
| Part No.609508080 | Thread SizeTS M8 | Total HeightH (mm) 12 | Total WidthW (mm) 12 | Total LengthL (mm) 80 | Drill Hole Diameterd0 (mm) 10 | Drill Hole Depthh0 (mm) 80 | Minimum Substrate Thicknesshmin (mm) 105 | Standard Embedment Depthhnom (mm) 50 | Maximum Fixture Thicknesstfix,max (mm) 15 | Pack 1 Shape Cardboard Box | Pack 1 QTY 50 | Pack 2 Shape Cardboard Box | Pack 2 Qty 250 | Pageidavimų sąrašas |
| Part No.609510070 | Thread SizeTS M10 | Total HeightH (mm) 15 | Total WidthW (mm) 15 | Total LengthL (mm) 70 | Drill Hole Diameterd0 (mm) 12 | Drill Hole Depthh0 (mm) 70 | Minimum Substrate Thicknesshmin (mm) 100 | Standard Embedment Depthhnom (mm) 48 | Maximum Fixture Thicknesstfix,max (mm) 5 | Pack 1 Shape Cardboard Box | Pack 1 QTY 50 | Pack 2 Shape Cardboard Box | Pack 2 Qty 250 | Pageidavimų sąrašas |
| Part No.609510100 | Thread SizeTS M10 | Total HeightH (mm) 15 | Total WidthW (mm) 15 | Total LengthL (mm) 100 | Drill Hole Diameterd0 (mm) 12 | Drill Hole Depthh0 (mm) 100 | Minimum Substrate Thicknesshmin (mm) 110 | Standard Embedment Depthhnom (mm) 55 | Maximum Fixture Thicknesstfix,max (mm) 25 | Pack 1 Shape Cardboard Box | Pack 1 QTY 25 | Pack 2 Shape Cardboard Box | Pack 2 Qty 125 | Pageidavimų sąrašas |
