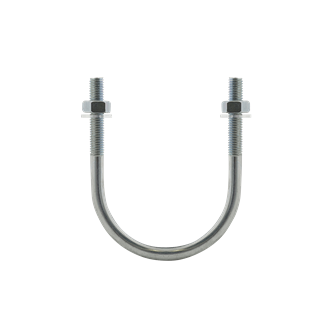

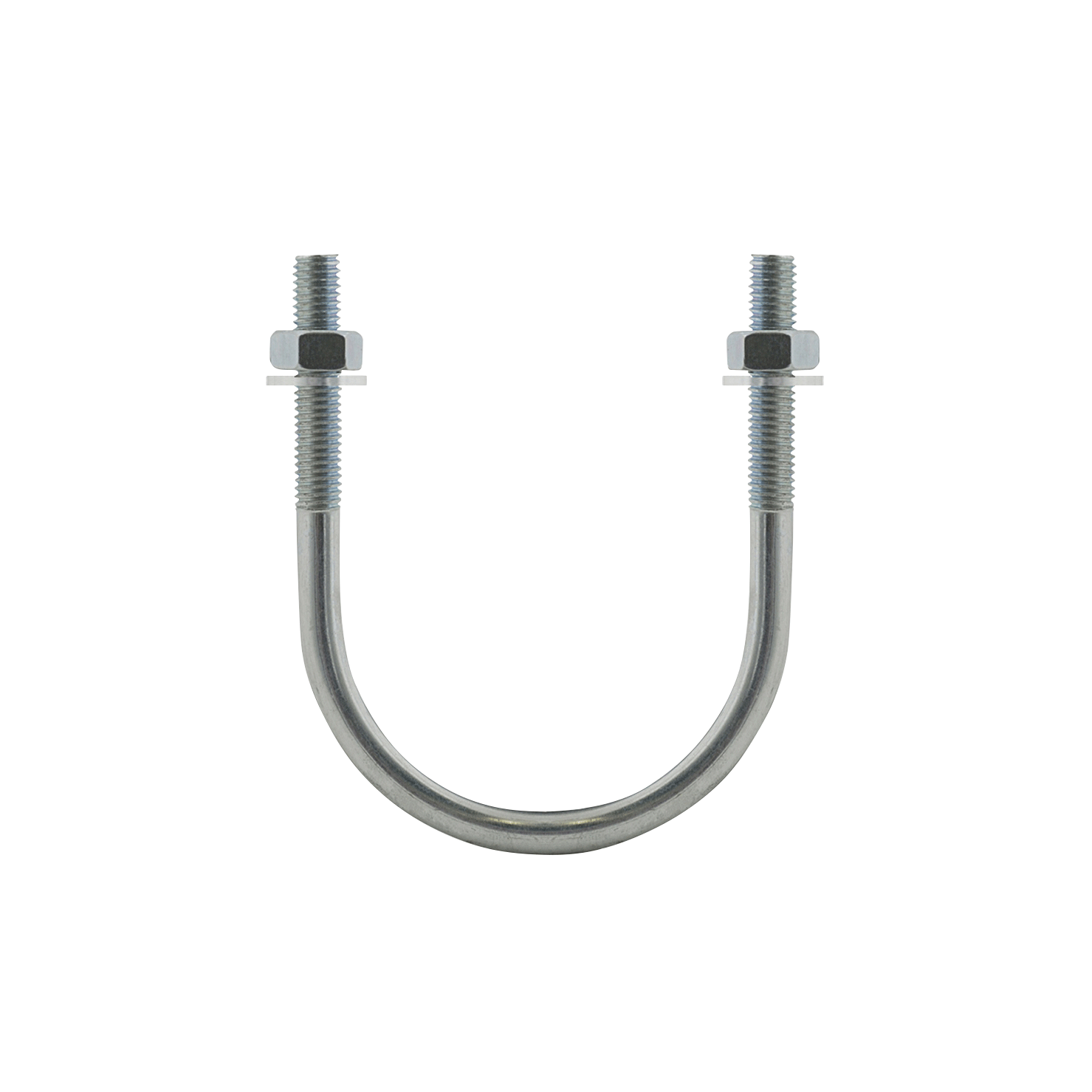

Walraven U-Bolt Clamp
Walraven U-Bolt Clamp

Walraven U-Bolt Clamp

for steel pipes

Featured & benefits

  • U-Bolt with thread
  • including nuts and washers
  • material: steel
  • zinc plated
Klauskite

Specifications and packaging

Part No. Outside Pipe DiameterPipe Diameter ImperialDNThread SizeThread LengthTotal HeightTotal WidthTotal DepthHeart To Heart DistancePack 1 ShapePack 1 QTYPack 2 ShapePack 2 Qty Pageidavimų
sąrašas
Ref. letter DDDTSTLHWDtTk
Unit desc. (mm)(in)(mm)(mm)(mm)(mm)(mm)
Part No.2084306017
Outside Pipe DiameterD (mm)
17,2
Pipe Diameter ImperialD (in)
⅜
DND
DN 10
Thread SizeTS
M6
Thread LengthTL (mm)
19
Total HeightH (mm)
42
Total WidthW (mm)
30
Total DepthDtT (mm)
10
Heart To Heart Distancek (mm)
24
Pack 1 Shape
Cardboard Box
Pack 1 QTY
100
Pack 2 Shape
Pallet ISO 1
Pack 2 Qty
24000		Pageidavimų sąrašas
Part No.2084306021
Outside Pipe DiameterD (mm)
21,5
Pipe Diameter ImperialD (in)
½
DND
DN 15
Thread SizeTS
M6
Thread LengthTL (mm)
25
Total HeightH (mm)
48
Total WidthW (mm)
36
Total DepthDtT (mm)
10
Heart To Heart Distancek (mm)
30
Pack 1 Shape
Cardboard Box
Pack 1 QTY
100
Pack 2 Shape
Pallet ISO 1
Pack 2 Qty
24000		Pageidavimų sąrašas
Part No.2084306027
Outside Pipe DiameterD (mm)
26,9
Pipe Diameter ImperialD (in)
¾
DND
DN 20
Thread SizeTS
M6
Thread LengthTL (mm)
30
Total HeightH (mm)
63
Total WidthW (mm)
45
Total DepthDtT (mm)
41
Heart To Heart Distancek (mm)
35
Pack 1 Shape
Cardboard Box
Pack 1 QTY
50
Pack 2 Shape
Pallet ISO 1
Pack 2 Qty
9600		Pageidavimų sąrašas
Part No.2084306034
Outside Pipe DiameterD (mm)
33,7
Pipe Diameter ImperialD (in)
1
DND
DN 25
Thread SizeTS
M6
Thread LengthTL (mm)
30
Total HeightH (mm)
71
Total WidthW (mm)
48
Total DepthDtT (mm)
10
Heart To Heart Distancek (mm)
42
Pack 1 Shape
Cardboard Box
Pack 1 QTY
50
Pack 2 Shape
Pallet ISO 1
Pack 2 Qty
9600		Pageidavimų sąrašas
Part No.2084308027
Outside Pipe DiameterD (mm)
26,9
Pipe Diameter ImperialD (in)
¾
DND
DN 20
Thread SizeTS
M8
Thread LengthTL (mm)
30
Total HeightH (mm)
63
Total WidthW (mm)
43
Total DepthDtT (mm)
13
Heart To Heart Distancek (mm)
35
Pack 1 Shape
Cardboard Box
Pack 1 QTY
100
Pack 2 Shape
Pallet ISO 1
Pack 2 Qty
9600		Pageidavimų sąrašas
Part No.2084308034
Outside Pipe DiameterD (mm)
33,7
Pipe Diameter ImperialD (in)
1
DND
DN 25
Thread SizeTS
M8
Thread LengthTL (mm)
30
Total HeightH (mm)
71
Total WidthW (mm)
50
Total DepthDtT (mm)
13
Heart To Heart Distancek (mm)
42
Pack 1 Shape
Cardboard Box
Pack 1 QTY
100
Pack 2 Shape
Pallet ISO 1
Pack 2 Qty
8000		Pageidavimų sąrašas
Part No.2084308042
Outside Pipe DiameterD (mm)
42,4
Pipe Diameter ImperialD (in)
1¼
DND
DN 32
Thread SizeTS
M8
Thread LengthTL (mm)
30
Total HeightH (mm)
79
Total WidthW (mm)
59
Total DepthDtT (mm)
13
Heart To Heart Distancek (mm)
51
Pack 1 Shape
Cardboard Box
Pack 1 QTY
100
Pack 2 Shape
Pallet ISO 1
Pack 2 Qty
9600		Pageidavimų sąrašas
Part No.2084308049
Outside Pipe DiameterD (mm)
48,3
Pipe Diameter ImperialD (in)
1½
DND
DN 40
Thread SizeTS
M8
Thread LengthTL (mm)
30
Total HeightH (mm)
80
Total WidthW (mm)
65
Total DepthDtT (mm)
13
Heart To Heart Distancek (mm)
57
Pack 1 Shape
Cardboard Box
Pack 1 QTY
100
Pack 2 Shape
Pallet ISO 1
Pack 2 Qty
9600		Pageidavimų sąrašas
Part No.2084308060
Outside Pipe DiameterD (mm)
60,3
Pipe Diameter ImperialD (in)
2
DND
DN 50
Thread SizeTS
M8
Thread LengthTL (mm)
30
Total HeightH (mm)
92
Total WidthW (mm)
77
Total DepthDtT (mm)
13
Heart To Heart Distancek (mm)
69
Pack 1 Shape
Cardboard Box
Pack 1 QTY
25
Pack 2 Shape
Pallet ISO 1
Pack 2 Qty
3600		Pageidavimų sąrašas
Part No.2084308076
Outside Pipe DiameterD (mm)
76,1
Pipe Diameter ImperialD (in)
2½
DND
DN 65
Thread SizeTS
M8
Thread LengthTL (mm)
30
Total HeightH (mm)
108
Total WidthW (mm)
93
Total DepthDtT (mm)
13
Heart To Heart Distancek (mm)
85
Pack 1 Shape
Cardboard Box
Pack 1 QTY
25
Pack 2 Shape
Pallet ISO 1
Pack 2 Qty
3600		Pageidavimų sąrašas
Part No.2084310090
Outside Pipe DiameterD (mm)
88,9
Pipe Diameter ImperialD (in)
3
DND
DN 80
Thread SizeTS
M10
Thread LengthTL (mm)
40
Total HeightH (mm)
131
Total WidthW (mm)
118
Total DepthDtT (mm)
109
Heart To Heart Distancek (mm)
99
Pack 1 Shape
Cardboard Box
Pack 1 QTY
25
Pack 2 Shape
Pallet ISO 1
Pack 2 Qty
3150		Pageidavimų sąrašas
Part No.2084310114
Outside Pipe DiameterD (mm)
114,3
Pipe Diameter ImperialD (in)
4
DND
DN 100
Thread SizeTS
M10
Thread LengthTL (mm)
50
Total HeightH (mm)
167
Total WidthW (mm)
137
Total DepthDtT (mm)
17
Heart To Heart Distancek (mm)
127
Pack 1 Shape
Cardboard Box
Pack 1 QTY
25
Pack 2 Shape
Pallet ISO 1
Pack 2 Qty
1800		Pageidavimų sąrašas
Part No.2084310140
Outside Pipe DiameterD (mm)
140
Pipe Diameter ImperialD (in)
5
DND
DN 125
Thread SizeTS
M10
Thread LengthTL (mm)
35
Total HeightH (mm)
191
Total WidthW (mm)
162
Total DepthDtT (mm)
17
Heart To Heart Distancek (mm)
152
Pack 1 Shape
Cardboard Box
Pack 1 QTY
20
Pack 2 Shape
Pallet ISO 1
Pack 2 Qty
1440		Pageidavimų sąrašas
Part No.2084310168
Outside Pipe DiameterD (mm)
168
Pipe Diameter ImperialD (in)
6
DND
DN 150
Thread SizeTS
M10
Thread LengthTL (mm)
40
Total HeightH (mm)
220
Total WidthW (mm)
188
Total DepthDtT (mm)
17
Heart To Heart Distancek (mm)
178
Pack 1 Shape
Cardboard Box
Pack 1 QTY
20
Pack 2 Shape
Pallet ISO 1
Pack 2 Qty
960		Pageidavimų sąrašas
Part No.2084310220
Outside Pipe DiameterD (mm)
220
Pipe Diameter ImperialD (in)
8
DND
DN 200
Thread SizeTS
M10
Thread LengthTL (mm)
40
Total HeightH (mm)
282
Total WidthW (mm)
246
Total DepthDtT (mm)
17
Heart To Heart Distancek (mm)
236
Pack 1 Shape
Cardboard Box
Pack 1 QTY
20
Pack 2 Shape
Pallet ISO 1
Pack 2 Qty
960		Pageidavimų sąrašas
Part No.2084312140
Outside Pipe DiameterD (mm)
139,7
Pipe Diameter ImperialD (in)
5
DND
DN 125
Thread SizeTS
M12
Thread LengthTL (mm)
50
Total HeightH (mm)
191
Total WidthW (mm)
164
Total DepthDtT (mm)
19
Heart To Heart Distancek (mm)
152
Pack 1 Shape
Unpacked
Pack 1 QTY
1
Pack 2 Shape
No Pack Type Available
Pack 2 Qty
-		Pageidavimų sąrašas
Part No.2084314168
Outside Pipe DiameterD (mm)
168,3
Pipe Diameter ImperialD (in)
6
DND
DN 150
Thread SizeTS
M14
Thread LengthTL (mm)
50
Total HeightH (mm)
220
Total WidthW (mm)
194
Total DepthDtT (mm)
21
Heart To Heart Distancek (mm)
178
Pack 1 Shape
Cardboard Box
Pack 1 QTY
10
Pack 2 Shape
Pallet ISO 1
Pack 2 Qty
1120		Pageidavimų sąrašas
Part No.2084316219
Outside Pipe DiameterD (mm)
219,1
Pipe Diameter ImperialD (in)
8
DND
DN 200
Thread SizeTS
M16
Thread LengthTL (mm)
60
Total HeightH (mm)
282
Total WidthW (mm)
252
Total DepthDtT (mm)
24
Heart To Heart Distancek (mm)
236
Pack 1 Shape
Cardboard Box
Pack 1 QTY
10
Pack 2 Shape
No Pack Type Available
Pack 2 Qty
-		Pageidavimų sąrašas
Part No.2084316273
Outside Pipe DiameterD (mm)
273
Pipe Diameter ImperialD (in)
10
DND
DN 250
Thread SizeTS
M16
Thread LengthTL (mm)
60
Total HeightH (mm)
335
Total WidthW (mm)
206
Total DepthDtT (mm)
24
Heart To Heart Distancek (mm)
287
Pack 1 Shape
Cardboard Box
Pack 1 QTY
10
Pack 2 Shape
No Pack Type Available
Pack 2 Qty
-		Pageidavimų sąrašas
