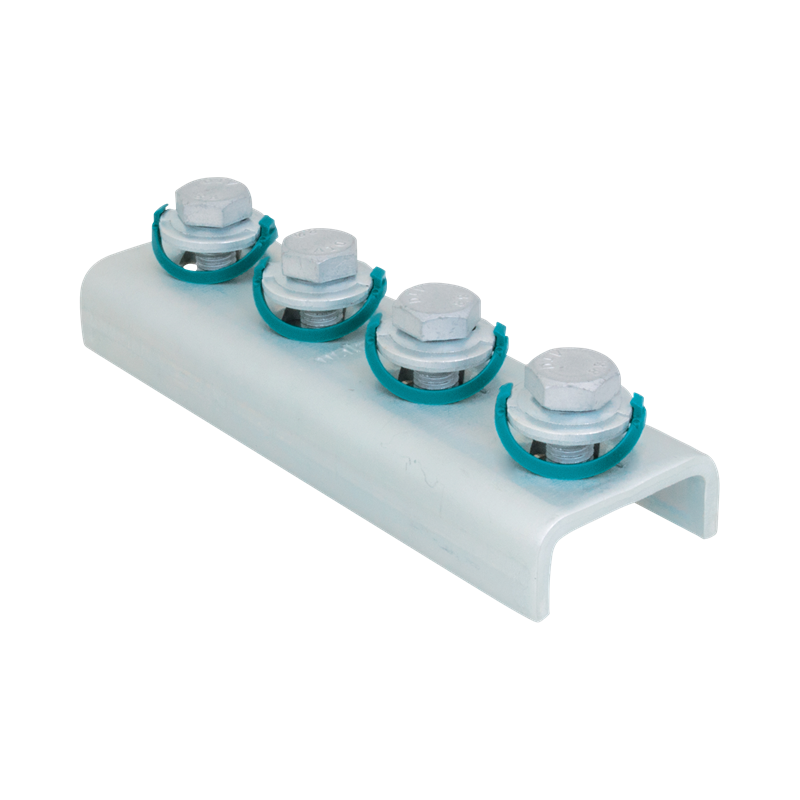

Walraven RapidStrut® Connector U G2 BUP 163mm
to make Strut rail fabrications
Features
- connector with pre-assembled Walraven RapidStrut® Slide nut(s)
- to make fabrication with Walraven RapidStrut® Rail
- ready-to-use pre-assembled for a quick fixing, and retains assembly in place before final tightening
- material: metal parts made of steel 1.0332; spring(s) made of POM (polyoxymethylene), green
- product is part of the Walraven Walraven UltraProtect® 1000 system
- suitable for in- and outdoor applications
- stands min. 1,000 hours salt spray test (max. 5% red rust) according to ISO 9227
Specifications
Identification
| Product Number | 665885421 |
|---|
Product Dimensions
| Height (mm) Ref. letter: h | 21 |
|---|---|
| Width (mm) Ref. letter: w | 42 |
| Length (mm) Ref. letter: l | 163 |
| Material Thickness (mm) Ref. letter: MT | 5 |
| Heart To Heart Distance (mm) Ref. letter: k | 41 |
| Total Height (mm) Ref. letter: H | 39.9 |
| Total Width (mm) Ref. letter: W | 52 |
| Total Length (mm) Ref. letter: L | 163 |
Technical characteristics
| For Rail Type | 41x21, 41x41, 41x51, 41x62, 41x82 |
|---|---|
| Torque Moment For Installation (Nm) Ref. letter: Tinst | 30 |
| Material | Steel |
| Material Quality | St. 1.0332 |
| Model | Exterior coupler |
| Suitable for | C-Profile |
| Surface Protection | BUP1000 |
| Surface Treatment | Untreated |
Weights
| Weight [g] (g) | 745 |
|---|---|
| Weight [kg] (kg) | 0.75 |
Packaging information
| Pack 1 Shape | Cardboard Box |
|---|---|
| Pack 1 Qty | 20 |
| Pack 1 Height (mm) | 187 |
| Pack 1 Width (mm) | 206 |
| Pack 1 Length (mm) | 272 |
| Pack 1 Weight (g) | 15134 |
| Pack 2 Shape | Pallet ISO 0-1/1 |
| Pack 2 Qty | 1800 |
| Pack 2 Height (mm) | 1079 |
| Pack 2 Width (mm) | 1200 |
| Pack 2 Length (mm) | 800 |
| Pack 2 Weight (g) | 1383060 |
| Pack 3 Shape | No Pack Type Available |
