Walraven Push-fit Saddle PP white M6 32mm

for securing conduits and pipes to walls, floors, or ceilings

0853032 Användningsområde: Indoor electrical fixings

Ladda ner produktblad

Funktioner

one-part saddle
connection thread M6 made of brass
material: PP (polypropylene), white (according to RAL 9016)
fire class B2
no corrosion, recyclable, halogen free, resistant to UV and ageing
temperature resistance from approx. -30 °C to approx. +90 °C (constant); short to approx. +110 °C

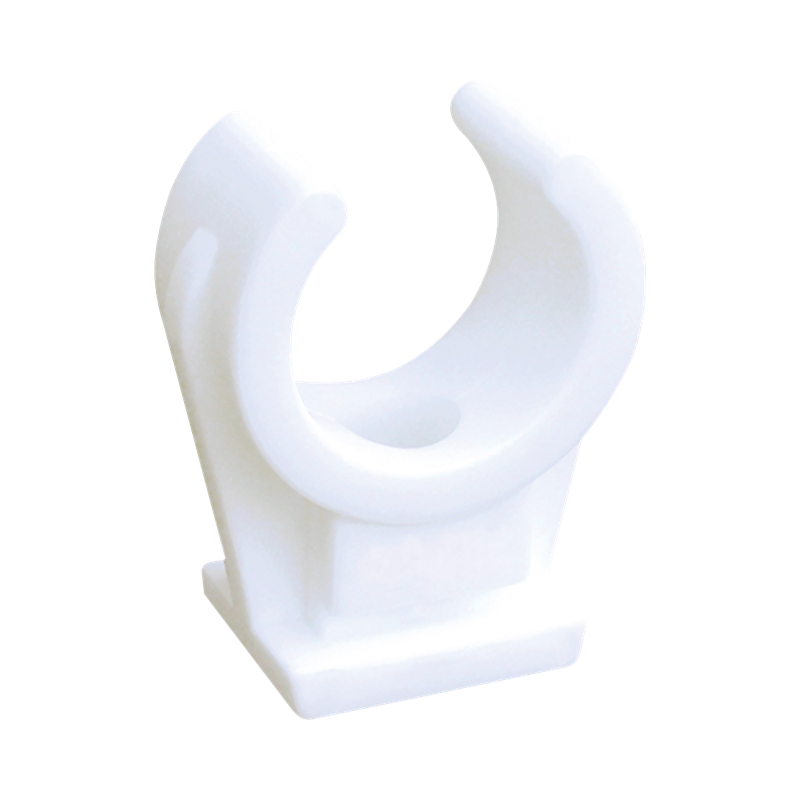

Walraven Push-fit Saddle PP white M6 32mm

Specifikationer

Identifiering

Identifiering
Product Number	0853032

Product Dimensions

Product Dimensions
Outside Pipe Diameter (mm) Referensbrev: D	32
Total Height (mm) Referensbrev: H	46
Total Width (mm) Referensbrev: W	43
Total Depth (mm) Referensbrev: DtT	17
Clamp Center Distance Height (mm) Referensbrev: cdh	31
Connection Thread Referensbrev: G	M6
Clamp Center Distance Width (mm) Referensbrev: cdw	21
DN Referensbrev: DN	None
Pipe Diameter Imperial (in) Referensbrev: D	1

Technical characteristics

Technical characteristics
Closed?	No
Colour	White
Connection	Female thread
Halogen Free?	Yes
Lock Facility	Single click
Material	Plastic
Material Quality	PP (PolyPropylene)
Maximum Number Of Tubes	1
Operating Temperature (°C)	-30 - 90
Surface Protection	Untreated
Surface Treatment	Untreated
Tackable?	Yes
Type Of Fastening	Screw hole
UV Resistant?	Yes
With Lining?	No

Approvals & Declarations

Approvals & Declarations
KIWA product certificate	No
UL listing certificate	No
UPC listing certificate	No

Safeloading

Safeloading
Calculated Breaking Load Fbx [kN] (kN) Referensbrev: Fb,x	0
Calculated Breaking Load Fbz [kN] (kN) Referensbrev: Fb,z	0
Calculated Maximum Allowed Load Fax [kN] (kN) Referensbrev: Fa,x	0
Maximum Allowed Load Faz [kN] (kN) Referensbrev: Fa,z	0

Weights

Weights
Weight [g] (g)	10
Weight [kg] (kg)	0.01

Packaging information

Packaging information
Pack 1 Shape	Cardboard Box
Pack 1 Qty	50
Pack 1 Height (mm)	110
Pack 1 Width (mm)	160
Pack 1 Length (mm)	184
Pack 1 Weight (g)	478
Pack 2 Shape	Pallet ISO 0-1/1
Pack 2 Qty	8700
Pack 2 Height (mm)	820
Pack 2 Width (mm)	1200
Pack 2 Length (mm)	800
Pack 2 Weight (g)	105000
Pack 3 Shape	No Pack Type Available

Nedladdningar och certifikat

Produktblad C1025 Walraven Push-fit sadel - enkel (vit) PDF | EN | Product info sheet Ladda ner
