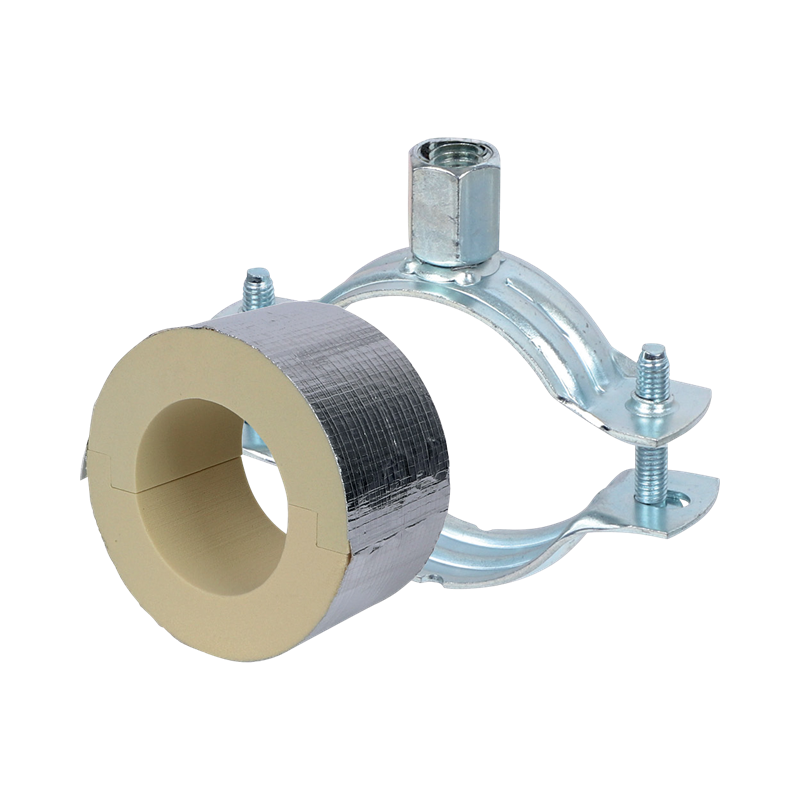

Walraven BISOFIX® PIR60 + 2S 26.9-28.0
for insulated pipes
Features
- for combination with rigid foam insulation
- cover joints with aluminium tape
- insulating pipe support with 2S clamp
- 2S clamp with M8/M10 connection nut
- does not contain CFC, HCFC, formaldehyde or cadmium
- fire class B2
- PIR density for D <110mm = 80kg/m³
- PIR density for D >110mm = 120kg/m³
- thermal conductivity lambda (approx. value): 0.030 W/(mK)
- temperature range -45 °C - +105 °C
Specifications
Identification
| Product Number | I603303028 |
|---|
Product Dimensions
| Outside Pipe Diameter (mm) Ref. letter: D | 26.9 - 28 |
|---|---|
| Connection Thread Ref. letter: G | M8/M10 |
| Total Height (mm) Ref. letter: H | 177 |
| Total Width (mm) Ref. letter: W | 194 |
| Total Length (mm) Ref. letter: L | 75 |
| Insulation Thickness (mm) Ref. letter: Is | 60 |
Technical characteristics
| Connection | Female thread |
|---|---|
| Insulation Density (kg/m³) | 80 |
| Key Driver Size Ref. letter: Drive | PZ2 |
| Material | Polyisocianurate (PIR) |
| Operating Temperature (°C) | -45 - 105 |
| Surface Protection | Untreated |
| Surface Treatment | Untreated |
| With Foamed In Bracket? | No |
Safeloading
| Maximum Allowed Load Faz (N) Ref. letter: Fa,z | 380 |
|---|
Weights
| Weight [g] (g) | 425 |
|---|---|
| Weight [kg] (kg) | 0.43 |
Packaging information
| Pack 1 Shape | Cardboard Box |
|---|---|
| Pack 1 Qty | 25 |
| Pack 1 Height (mm) | 434 |
| Pack 1 Width (mm) | 398 |
| Pack 1 Length (mm) | 598 |
| Pack 1 Weight (g) | 11009 |
| Pack 2 Shape | Pallet ISO 0-1/1 |
| Pack 2 Qty | 200 |
| Pack 2 Height (mm) | 1012 |
| Pack 2 Width (mm) | 1200 |
| Pack 2 Length (mm) | 800 |
| Pack 2 Weight (g) | 109074 |
| Pack 3 Shape | No Pack Type Available |
