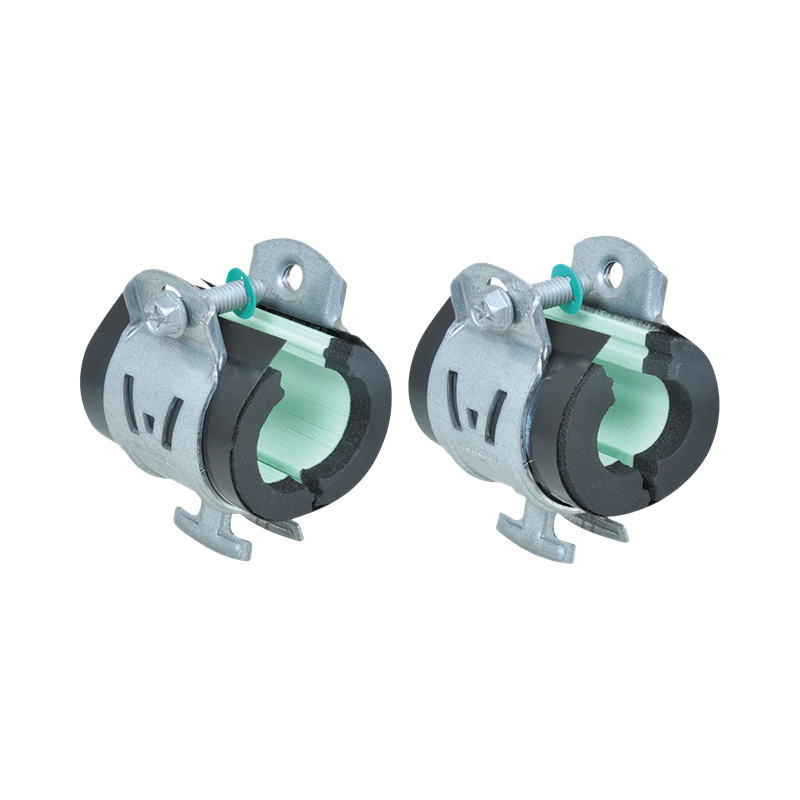

Walraven W6000 Insulated Clamp Zn/Mg PIR 1/2" 6.4mm
to be used with pipes that need to be insulated
Features
- for installation of thermal isolated steel, copper, stainless steel or plastic pipe
- one-piece design - no loose parts
- easier, faster, safer - installs with one hand
- 3-way screw head - Phillips, flat and hex
- available with 3/8" or 1/2" integrated thermal insulation block
- to be used in combination with soft insulation material
- vapour-proof gluing to pipe insulation
- excellent thermal and mechanical properties
- W Series Clamps are boxed for easy handling - no more bags
- material: Clamp: made of steel 1.0242; Insulation shell: PIR thermally hardening foam (core), synthetic rubber (sides) and vapor-proof layer of black PVC
- surface treatment: high grade Zn-Mg based coating (600 hours salt spray)
Specifications
Identification
| Product Number | 2062006 |
|---|
Product Dimensions
| Total Height (mm) Ref. letter: H | 69 |
|---|---|
| Total Width (mm) Ref. letter: W | 42 |
| Total Depth (mm) Ref. letter: DtT | 70 |
Packaging information
| Pack 1 Shape | Cardboard Box |
|---|---|
| Pack 1 Qty | 25 |
| Pack 1 Height (mm) | 175 |
| Pack 1 Width (mm) | 200 |
| Pack 1 Length (mm) | 266 |
| Pack 1 Weight (g) | 2430 |
| Pack 2 Shape | Pallet ISO 0-1/1 |
| Pack 2 Qty | 2250 |
| Pack 2 Height (mm) | 1019 |
| Pack 2 Width (mm) | 1200 |
| Pack 2 Length (mm) | 800 |
| Pack 2 Weight (g) | 240000 |
| Pack 3 Shape | No Pack Type Available |
| Pack 4 Shape | No Pack Type Available |
