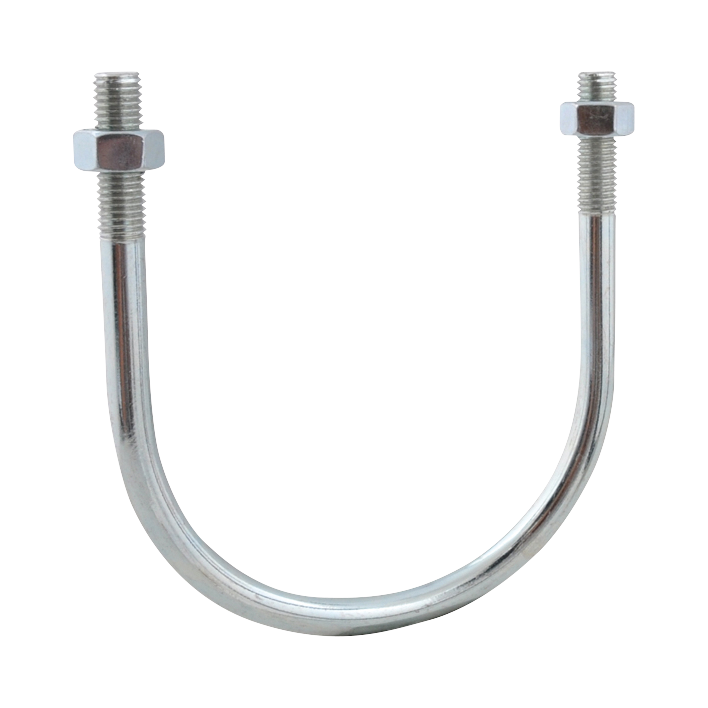

Walraven Standard Leg U-Bolt Clamp zp 15NB
for steel pipes
Features
- U-Bolt with thread
- including nuts
- material: steel
- zinc-plated
Specifications
Identification
| Product Number | B7103022 |
|---|
Product Dimensions
| Outside Pipe Diameter (mm) Ref. letter: D | 21 |
|---|---|
| Pipe Diameter Imperial (in) Ref. letter: D | ½ |
| DN Ref. letter: DN | DN 15 |
| Thread Size Ref. letter: TS | M6 |
| Thread Length (mm) Ref. letter: TL | 30 |
| Total Height (mm) Ref. letter: H | 48 |
| Total Width (mm) Ref. letter: W | 33 |
| Total Depth (mm) Ref. letter: DtT | 6 |
| Heart To Heart Distance (mm) Ref. letter: k | 27 |
| Clamp Center Distance Height (mm) Ref. letter: cdh | 26.5 |
| Pipe Diameter IPS (in) Ref. letter: D | ½ |
| Thread Pitch (mm) Ref. letter: TP | 1 |
| Width Across Flats (mm) Ref. letter: WAF | 10 |
Technical characteristics
| Colour | Zinc |
|---|---|
| Material | Steel |
| Material Quality | Class 4.6 |
| Number Of Nuts | 2 |
| Suitable for | Steel Tube, Metal Pipes |
| Surface Protection | Zinc Plated |
| Surface Treatment | Untreated |
| Thread Type Ref. letter: TT | Metric |
| With Nut? | Yes |
| With Saddle Piece? | No |
| With Washer? | No |
Approvals & Declarations
| UL listing certificate | No |
|---|
Weights
| Weight [g] (g) | 20 |
|---|---|
| Weight [kg] (kg) | 0.02 |
Packaging information
| Pack 1 Shape | Cardboard Box |
|---|---|
| Pack 1 Qty | 100 |
| Pack 1 Height (mm) | 20 |
| Pack 1 Width (mm) | 500 |
| Pack 1 Length (mm) | 450 |
| Pack 1 Weight (g) | 2050 |
