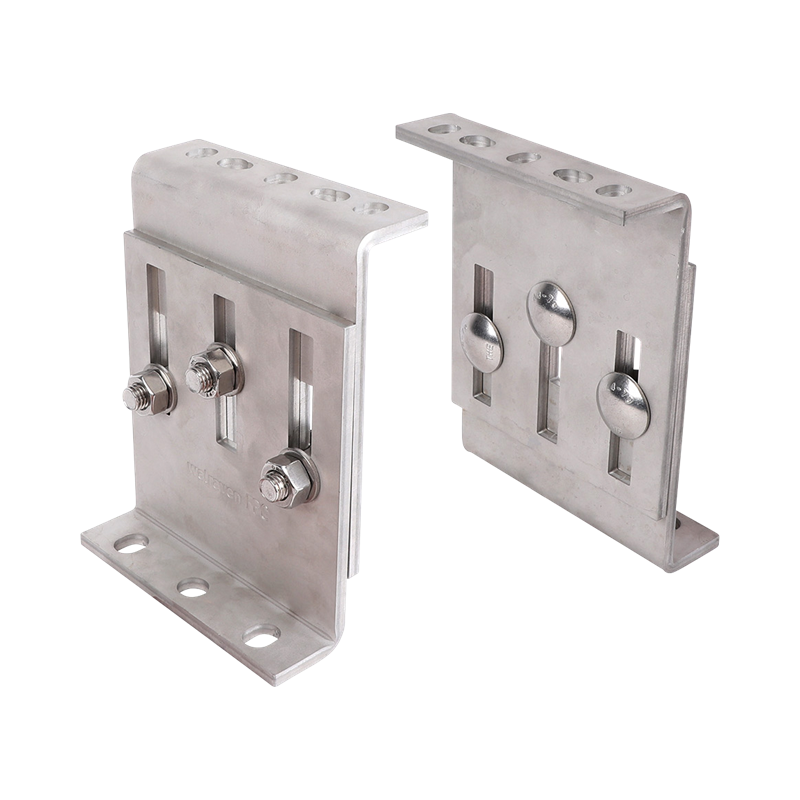

Walraven Fixpoint Console FPC medium SSt M12
for fixing point assembly
Features
- flexible use console module for high forces (depending on the situation, detailed design by technical service)
- can be used as a pipe connection point in conjunction with 2 or 3 heavy-duty clamps type HD700 or HD500 Black
- tightening torque 75 Nm for the console fixing screws
- suitable for in- and outdoor applications
- material: stainless steel A4 (1.4401/ AISI 316)
Specifications
Identification
| Product Number | 6697206 |
|---|
Product Dimensions
| Minimum Height (mm) Ref. letter: Ht,min | 153 |
|---|---|
| Maximum Height (mm) Ref. letter: Ht,max | 268 |
| Fixing Slot (mm) Ref. letter: FS | 15x13 |
| Fixing Hole (mm) Ref. letter: FH | 13 |
| Heart To Heart Distance (mm) Ref. letter: k | 90 |
| Fixing Slot 2 (mm) Ref. letter: FS 2 | 15x11 |
| Fixing Hole 2 (mm) Ref. letter: FH 2 | 11 |
| Fixing Hole 3 (mm) Ref. letter: FH 3 | 13 |
| Heart To Heart Distance 2 (mm) Ref. letter: k 2 | 50 |
| Heart To Heart Distance 3 (mm) Ref. letter: k 3 | 60 |
| Heart To Heart Distance 4 (mm) Ref. letter: k 4 | 100 |
| Total Width (mm) Ref. letter: W | 136 |
| Total Height (mm) Ref. letter: H | 153 |
| Total Depth (mm) Ref. letter: DtT | 86.5 |
| Material Thickness (mm) Ref. letter: MT | 6 |
| Material Thickness 2 (mm) Ref. letter: MT 2 | 6 |
Technical characteristics
| Colour | Stainless Steel |
|---|---|
| Material | Stainless Steel |
| Material Quality | 1.4404 (AISI 316L) |
| Pre Fabricated? | Yes |
| Surface Protection | Untreated |
| Surface Treatment | Blasted |
| Torque Moment For Installation (Nm) Ref. letter: Tinst | 75 |
Approvals & Declarations
| KOT (National Technical Assessment, ITB) | Yes |
|---|
Safeloading
| Maximum Allowed Load Faz (N) Ref. letter: Fa,z | 14300 |
|---|---|
| Maximum Allowed Load Fay (N) Ref. letter: Fa,y | 11500 |
| Maximum Allowed Load Fax (N) Ref. letter: Fa,x | 3200 |
Weights
| Weight [g] (g) | 4500 |
|---|---|
| Weight [kg] (kg) | 4.5 |
Packaging information
| Pack 1 Shape | Cardboard Box |
|---|---|
| Pack 1 Qty | 1 |
| Pack 1 Height (mm) | 158 |
| Pack 1 Width (mm) | 128 |
| Pack 1 Length (mm) | 195 |
| Pack 1 Weight (g) | 4575 |
| Pack 2 Shape | Pallet ISO 0-1/1 |
| Pack 2 Qty | 144 |
| Pack 2 Height (mm) | 934 |
| Pack 2 Width (mm) | 1200 |
| Pack 2 Length (mm) | 800 |
| Pack 2 Weight (g) | 674400 |
| Pack 3 Shape | No Pack Type Available |
