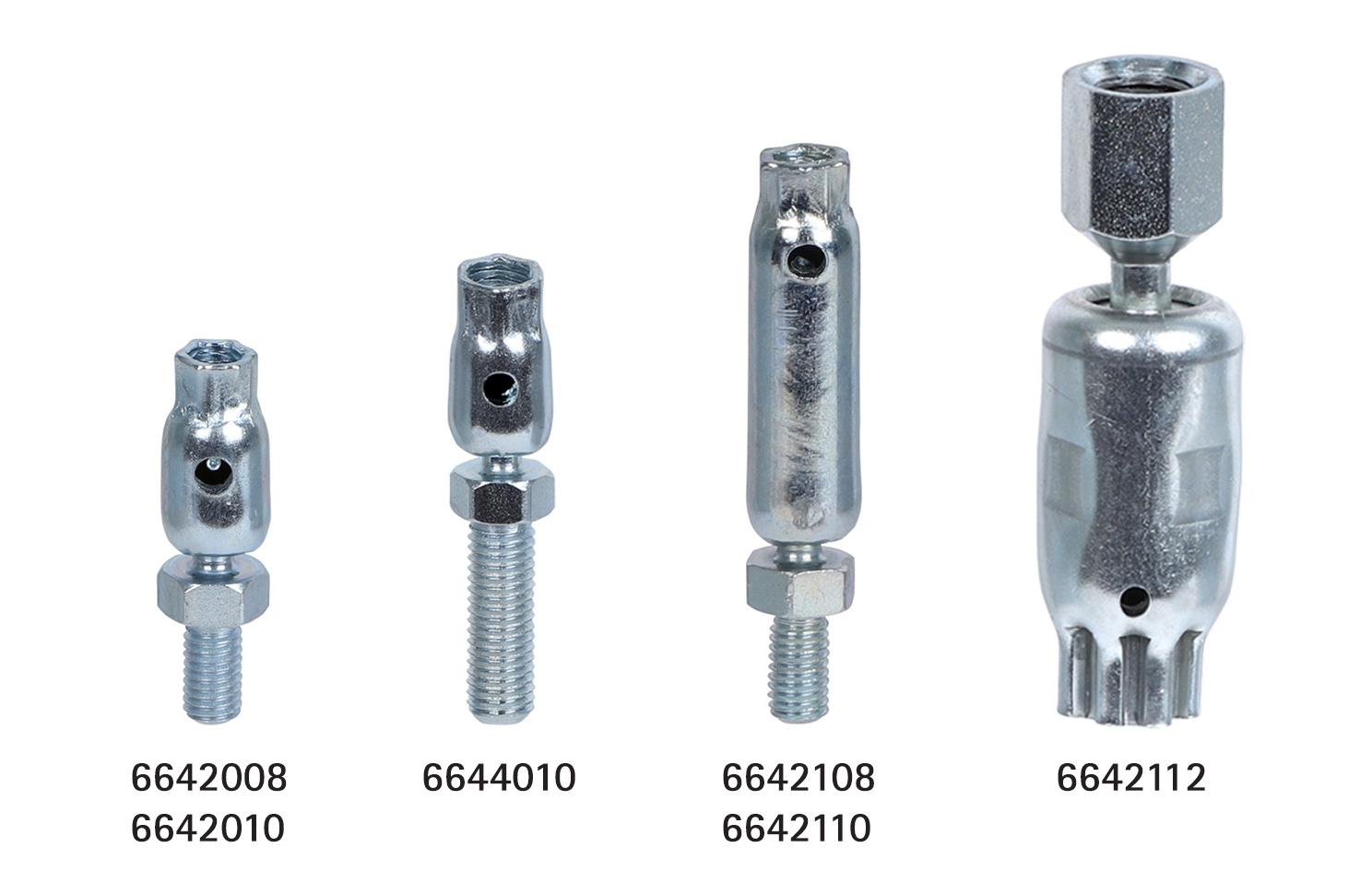

BIS Ball Swivel Hanger

  • recommended for metal pipes up to DN 50, plastic pipes up to DN 100
  • for fixing to slide nut or on clamps
  • with inspection hole to check screw-in depth (attention: when the threaded rod is screwed-in too deep, the ball swivel is blocked)

more specifications

Specifications and packaging

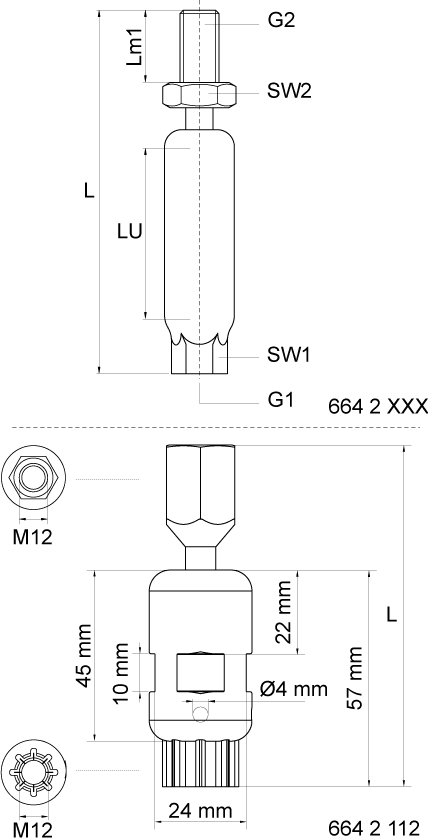

6642XXX_WEB_MAATTEKENING

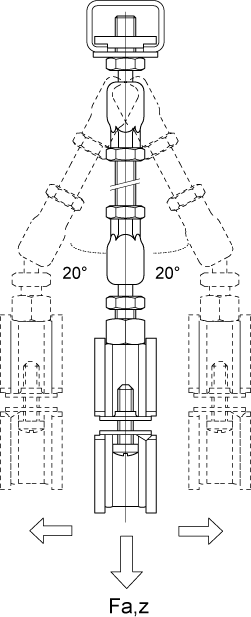

6642XXX_WEB_TABEL

Specifications

  • recommended for metal pipes up to DN 50, plastic pipes up to DN 100
  • for fixing to slide nut or on clamps
  • with inspection hole to check screw-in depth (attention: when the threaded rod is screwed-in too deep, the ball swivel is blocked)
  • screw-in depth is continuously variable (see LU)
  • material: steel
  • zinc plated

Complementary products

Complementary products for BIS Ball Swivel Hanger

  • BIS_RapidStrut_66530X0X

    BIS RapidStrut® Ball Swivel Hanger

    • slide nut with ball swivel hanger, washer and BIS RapidStrut® spring
    • recommended for metal pipes up to DN 50, plastic pipes up to DN 100
    • ready-to-use pre-assembled for a quick fixing, and retains assembly in place before final tightening
