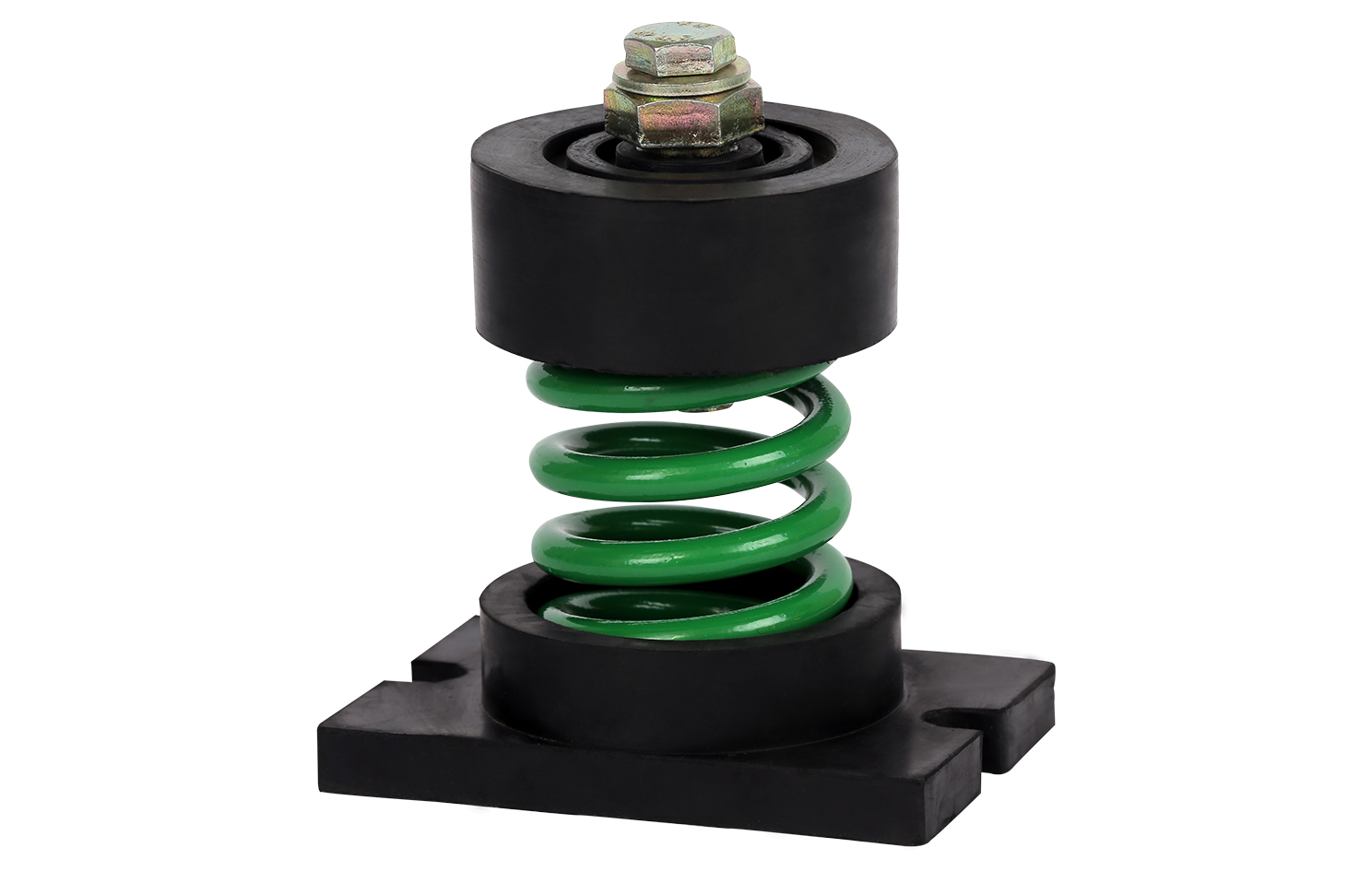

Cup Spring Mount

  • Cup Spring Mounts are used to isolate noise and vibration from floor mounting equipents
  • pumps, packaged air handling units, air conditioning units, centrifugal and axial fans, inertia bases etc.
  • color coded springs as per load ratings

more specifications

Specifications and packaging

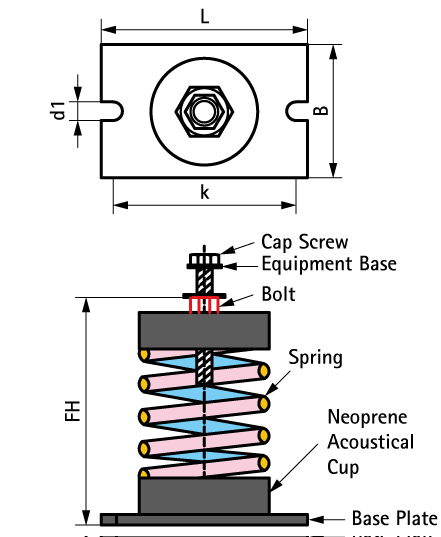

DMCS25-10_M

Specifications

  • Cup Spring Mounts are used to isolate noise and vibration from floor mounting equipents
  • pumps, packaged air handling units, air conditioning units, centrifugal and axial fans, inertia bases etc.
  • color coded springs as per load ratings
  • outer diameter equal to at least 85% of working height
  • springs designed for 50% overload capacity
  • neoprene top and bottom with non-skid bolt down base
  • plated leveling / lock bolt
  • springs powder coated
  • designed to meet BS1726, class B
