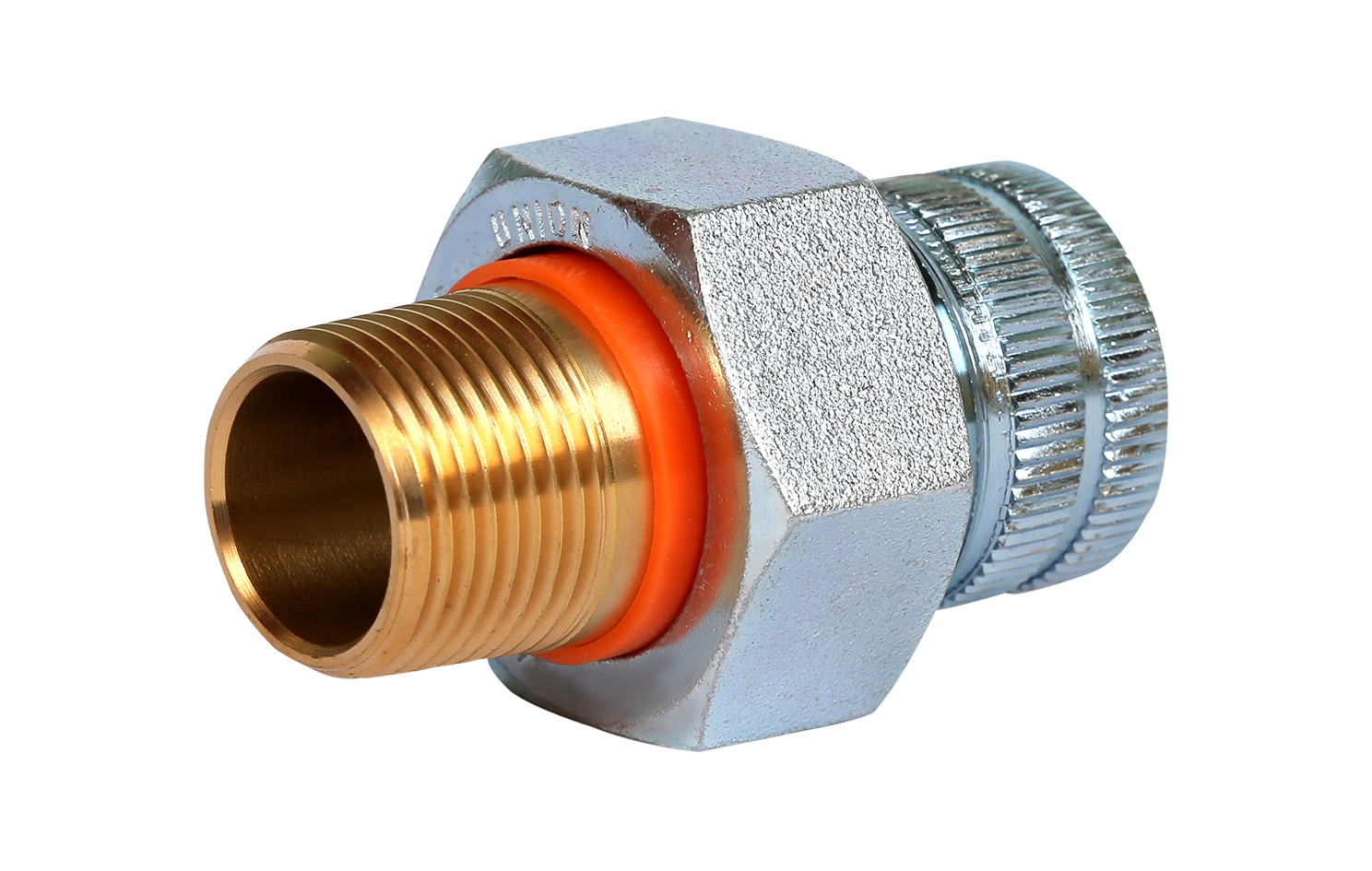

Di Electric Union Model C

steel female thread to copper male thread

Features & benefits

designed for installation of two non similar pipes to prevent corrosion and detoriation in piping systems due to galvanic and stray current
Construction Features
- electrogalvanized threaded steel body with integral sweat end on one side with brass threaded/solder coupler
- dielectric coupler sleeve and separator gasket to prevent metal to metal contact
- lead free construction to comply with lead free installation requirements
Technical Data
- maximum pressure: 250 PSI / 17 bar
- temperature resistance: from -30 °C to +120 °C
- electrogalvanized as per ASTM B 633 Standards (SC3)
- dielectric strength: ASTM D149, BS 2782, DIN 53483
- threading: BS21 : 1985 (NPT available on request)

Part No.	D (")	Model	App.	Product wish list
Part No.DMDEUC022	D (")½	ModelSteel MT ½" x Copper MT ½"	App.pc.	Product wish list
Part No.DMDEUC028	D (")¾	ModelSteel MT ¾" x Copper MT ¾"	App.pc.	Product wish list
Part No.DMDEUC035	D (")1	ModelSteel MT 1" x Copper MT 1"	App.pc.	Product wish list
Part No.DMDEUC040	D (")1¼	ModelSteel MT 1¼" x Copper MT 1¼"	App.pc.	Product wish list
Part No.DMDEUC048	D (")1½	ModelSteel MT 1½" x Copper MT 1½"	App.pc.	Product wish list
Part No.DMDEUC060	D (")2	ModelSteel MT 2" x Copper MT 2"	App.pc.	Product wish list
