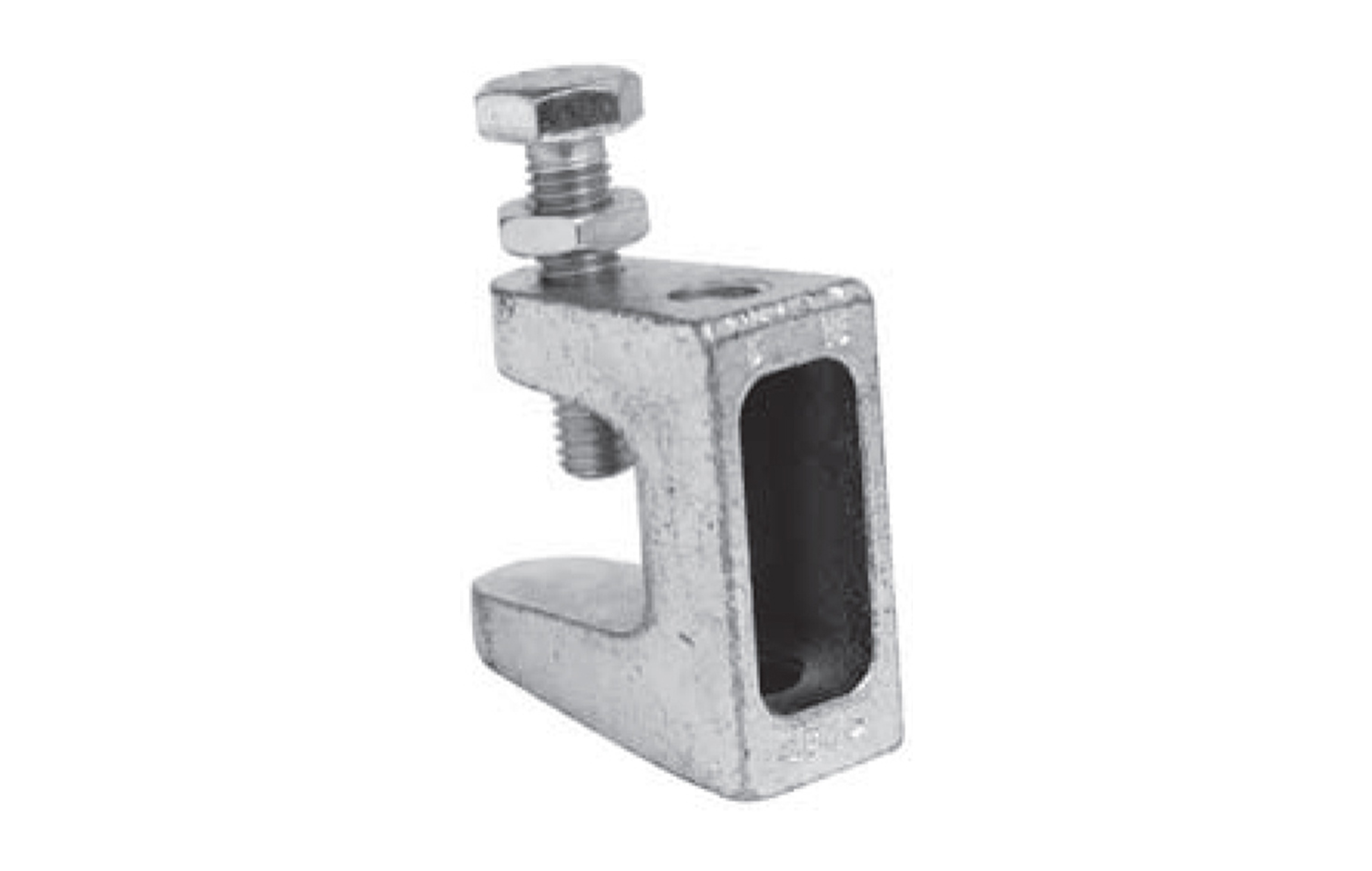

Girder Clamp

FM_UL_2
  • for sprinkler systems, heating, ventilation and air conditioning, acoustic tubes and sanitary installations
  • hexagon threaded head screw DIN938 8.8
  • threaded with Cup Point (RS) according to EN ISO 4753 and lock nut
  • material: Malleable Cast Iron
  • zinc plated casting tolerance according to DIN 1684 GTA/17

more specifications

Specifications and packaging

Part No.A (mm)RGB (mm)H (mm)F<subscript>a,z</subscript> (N)FMULPack 1
Part No.DMC1998A (mm)18RM8GM8B (mm)35H (mm)35F<subscript>a,z</subscript> (N)1,200FMFMULULPack 150
Part No.DMC19910A (mm)20RM10GM10B (mm)41H (mm)42F<subscript>a,z</subscript> (N)2,500FMFMULULPack 150
Part No.DMC19912A (mm)26RM12GM10B (mm)48H (mm)54F<subscript>a,z</subscript> (N)3,500FMFMULULPack 150
Part No.DMC19916A (mm)28RM16GM12B (mm)55H (mm)58F<subscript>a,z</subscript> (N)5,500FMFMULULPack 112
6003XXX_M

Specifications

  • for sprinkler systems, heating, ventilation and air conditioning, acoustic tubes and sanitary installations
  • hexagon threaded head screw DIN938 8.8
  • threaded with Cup Point (RS) according to EN ISO 4753 and lock nut
  • material: Malleable Cast Iron
  • zinc plated casting tolerance according to DIN 1684 GTA/17
