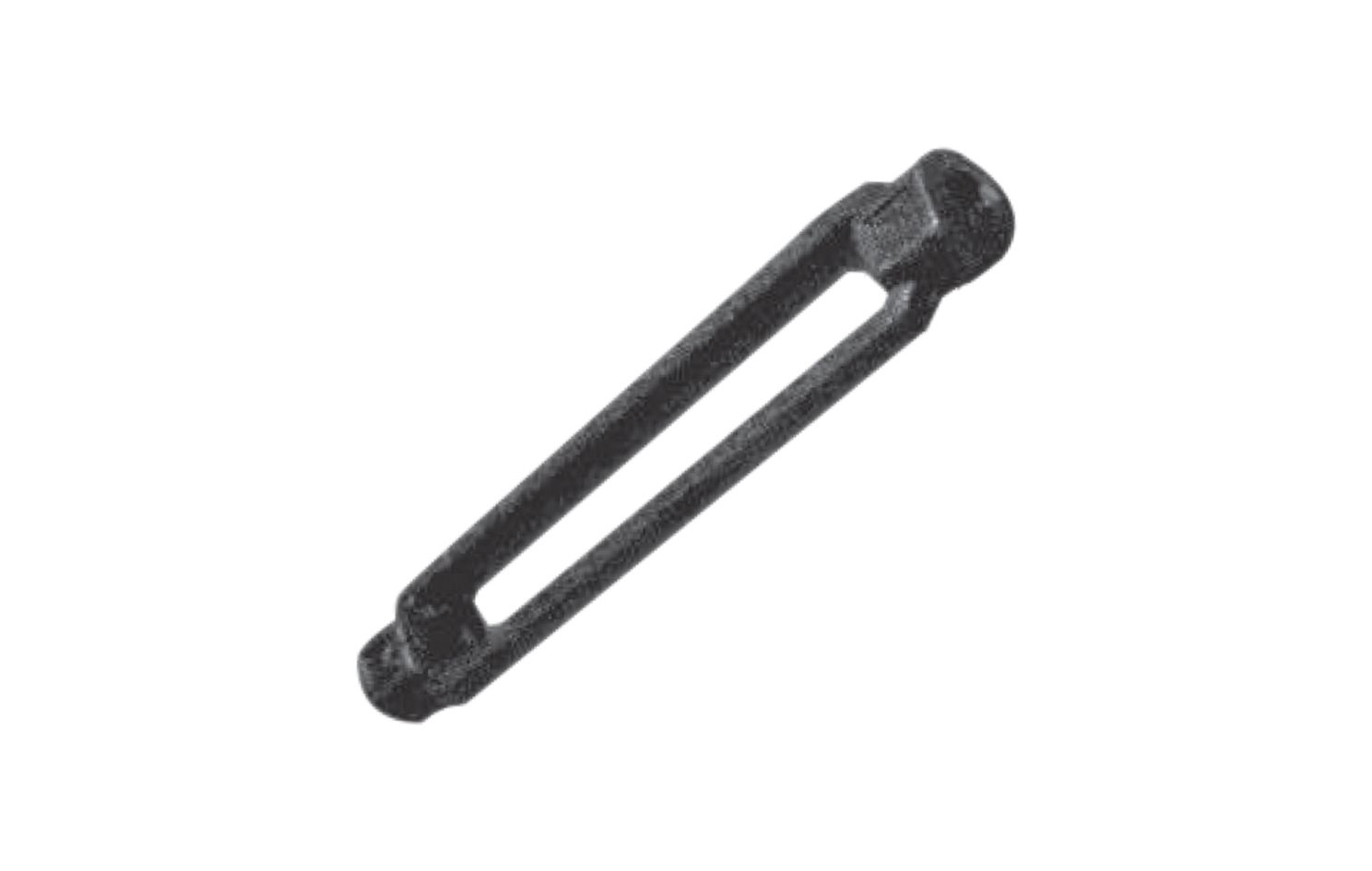

Hardware Turn Buckle

  • used to provide vertical adjustment up to 140 mm
  • ends are threaded in opposite directions
  • designed to meet MSS Standard SP-58, type 13

more specifications

Specifications and packaging

Part No.GH (mm)h (mm)Fa,z (N)
Part No.DMC43010GM10H (mm)180h (mm)145F<subscript>a,z</subscript> (N)5,000
Part No.DMC43012GM12H (mm)190h (mm)145F<subscript>a,z</subscript> (N)10,000
Part No.DMC43016GM16H (mm)200h (mm)140F<subscript>a,z</subscript> (N)16,000
Part No.DMC43020GM20H (mm)210h (mm)140F<subscript>a,z</subscript> (N)25,000
Part No.DMC43022GM22H (mm)220h (mm)140F<subscript>a,z</subscript> (N)32,500

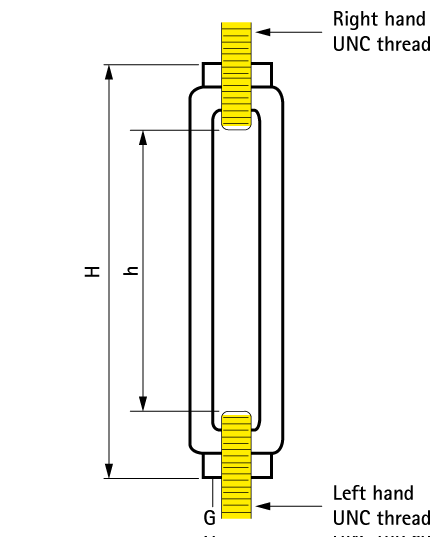

DMC43010_M

Specifications

  • used to provide vertical adjustment up to 140 mm
  • ends are threaded in opposite directions
  • designed to meet MSS Standard SP-58, type 13
